nPM2100 EK Evaluation Kit for the nPM2100 Power Management IC (PMIC) for Non-Rechargeable Batteries
This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹5,929.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 50
B2B GST Credit Available
Price in reward points: 5025
- Stock: 0 in Stock
- SKU: 07140
- Delivery Time
- Bulk & B2B RFQ

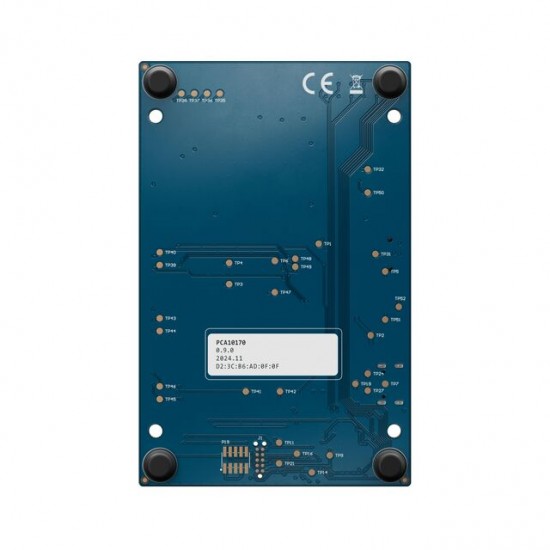

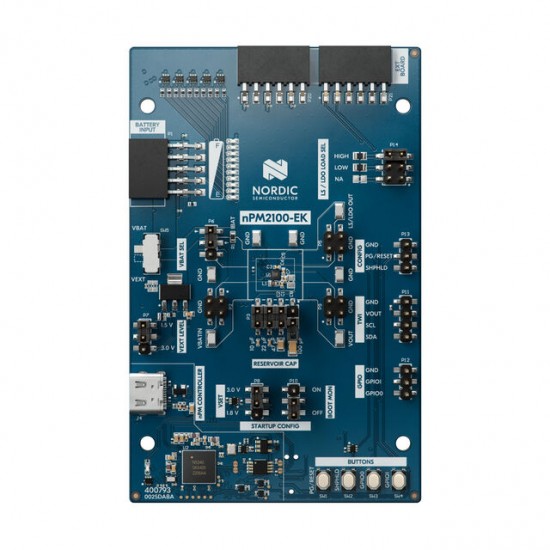

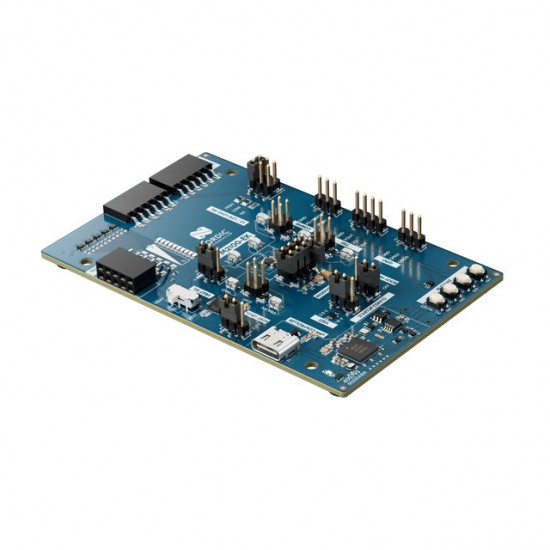

The nPM2100 Evaluation Kit allows for simple evaluation and code-free configuration of the nPM2100 Power Management IC (PMIC).
- Seamless integration and code-free configuration with the nPM PowerUP desktop app
- Male pin headers provide access to all nPM2100 PMIC connections, for easy connection to Nordic Development Kits (DK) and external test equipment
- 6 included battery holders for different types and series combinations of batteries
- Integrated LEDs and pushbuttons allow for evaluation of the built-in LED drivers and GPIOs of the PMIC
By connecting to the nPM PowerUP app found in nRF Connect for Desktop, all settings of the nPM2100 can easily be configured through an intuitive GUI and exported as code to be implemented in your MCUs application.
Included are battery holders for AA and AAA alkaline batteries, both single and two-in-series, as well as common coin-cell batteries in both 20 and 11.6 mm diameter variants, for example CR2032 and LR44.
To get the information from this page in a print friendly format, download the nPM2100 product brief.
