A121 60GHz mmWave radar Micro-Motion Detection module, based On Acconeer A121 Pulsed Coherent Radar (PCR) Sensor, supports high-precision distance measurements, Standard Version (Without Holder)

The A121 Range Sensor is based on 60GHz Pulsed Coherent Radar (PCR) technology, enabling human presence and motion detection, supporting high-precision distance measurements. Its detection area and sensitivity parameters are configurable, offering excellent anti-interference capability. The module integrates an Arm Cortex-M4 MCU (STM32L431CBT6), allowing it to either function as a standalone unit with user applications directly deployed on the Acconeer RSS, or communicate with external host controllers via a register command protocol.

It features compact size, low power consumption, and easy integration, suitable for applications such as human presence detection, proximity sensing, contactless triggering, and vital signs monitoring.

User Manual / Datasheet / Example Codes Etc.

Features

A121 60GHz Pulsed Coherent Radar (PCR), integrated Baseband, RF front-end, and Antenna, supports human presence detection, micro-motion detection, and high-precision distance measurements
Integrated Arm Cortex-M4 MCU (STM32L431CBT6), up to 80MHz frequency, with 128KB Flash and 64KB RAM, supports local radar processing
Compact 39 × 39 (mm) dimensions with optimized antenna structure, enabling high gain and stable detection
3.3V IO interface power supply
Supports UART, I2C, and GPIO interfaces, outputting radar detection results based on a register protocol
Supports behind-plastic or behind-glass installation, enabling reliable operation without additional openings in the enclosure
Reserved PCB and SWD pads for RSS and user application development, as well as production line programming and testing
Operating temperature: -40°C ~ 85°C, suitable for industrial and harsh environments

Specifications

Hardware

Frequency band: 60GHz
Modulation Method: PCR
Power supply: 5V
IO Voltage: 3.3V
Output interface: USB / UART / I2C
UART baudrate: UART: 921.6kbps I2C: 100K / 400K
Operating temperature: -40°C ~ 85°C
outline dimensions: 39 × 39 (mm)

System Performance

Detection distance resolution: 0.03m at 25°C, Profile1
Detection angle: Horizontal: 53° Vertical: 65°
Detection accuracy: 0.03m at Profile1
Operating current (MAX): 5V 80mA

Package Includes

A121 Range Sensor x1
MX1.25 10PIN cable x1

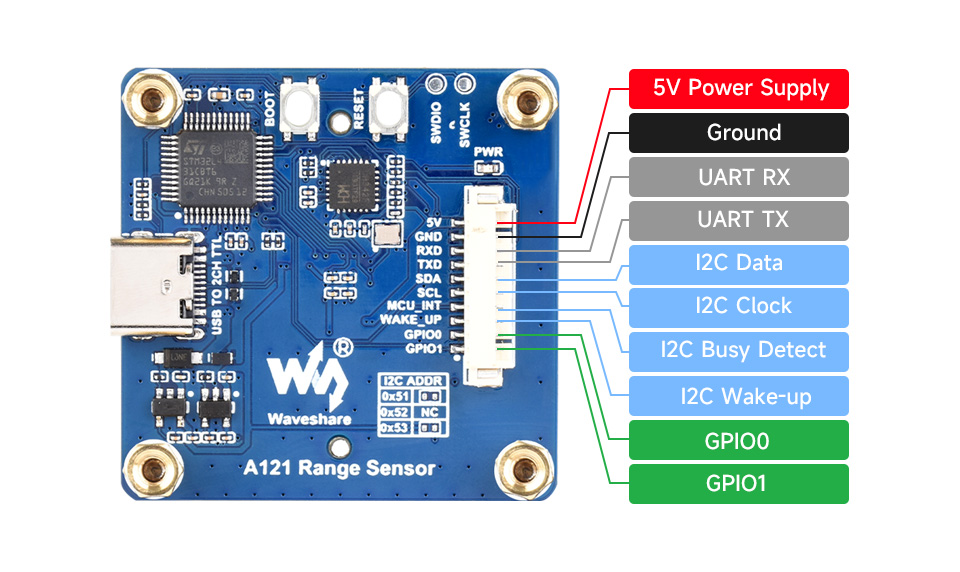

Pinout Definition

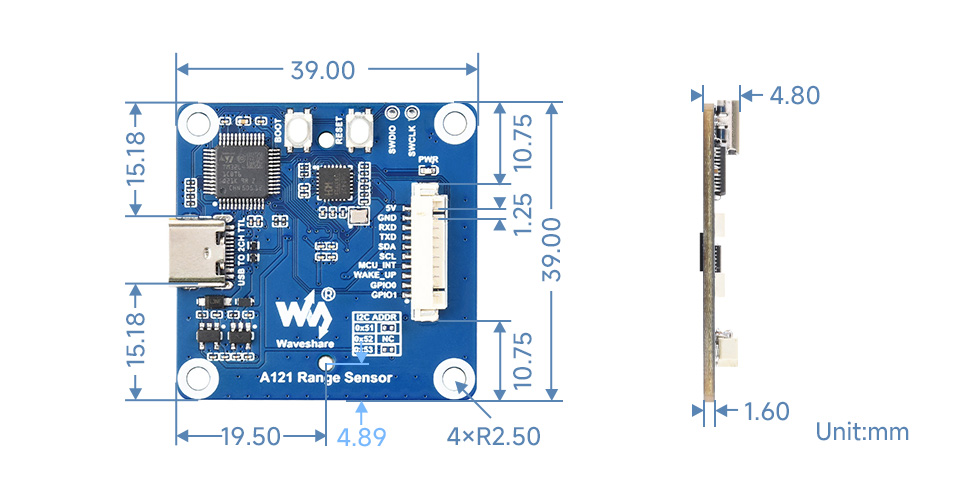

Dimensions
