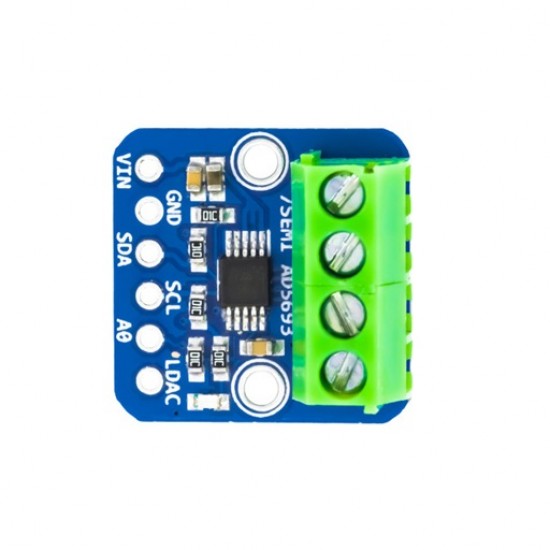

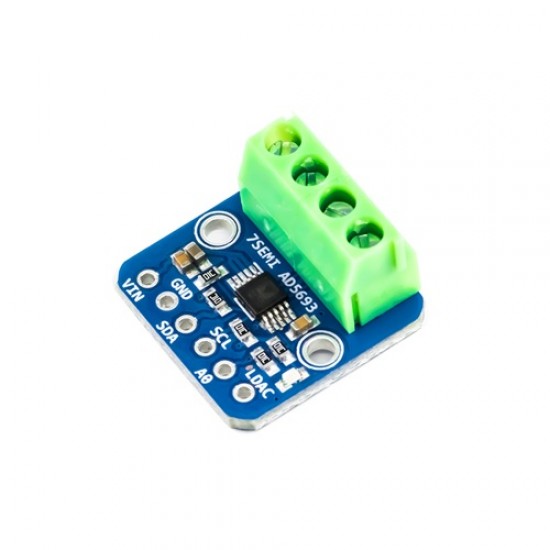

AD5693R 16Bit I2C DAC Breakout

The 7Semi AD5693R 16-Bit I2C DAC Breakout is a high-precision digital-to-analog converter module designed for applications requiring accurate analog signal generation. It features the Analog Devices AD5693R DAC, offering 16-bit resolution with an integrated 2.5V reference, ensuring reliable and stable output. The module operates over an I2C interface, supporting standard (100 kHz), fast (400 kHz), and high-speed (3.4 MHz) modes, facilitating seamless integration with various microcontrollers and systems. With a low power consumption of 0.7 mW at 3.6V and a small form factor.

it is ideal for portable and space-constrained applications. The breakout board provides a buffered voltage output, enhancing load-driving capability and minimizing output impedance, making it suitable for precision instrumentation, process control, and data acquisition systems.

Datasheet

Features

High Precision: 16-bit resolution with ±2 LSB maximum INL for precise output control.
Selectable Output Range: Configurable for 2.5V or 5V, with an internal reference of 2.5V.
Low Drift: 2 ppm/°C typical, ensuring stable performance across temperature variations.
Low Noise and Glitch: 0.1 nV-sec low glitch and minimal noise for clean signal output.
Wide Compatibility: Works with 3.3V or 5V logic, making it suitable for various systems.
Durable Design: Operates reliably in temperatures ranging from -40°C to +105°C.

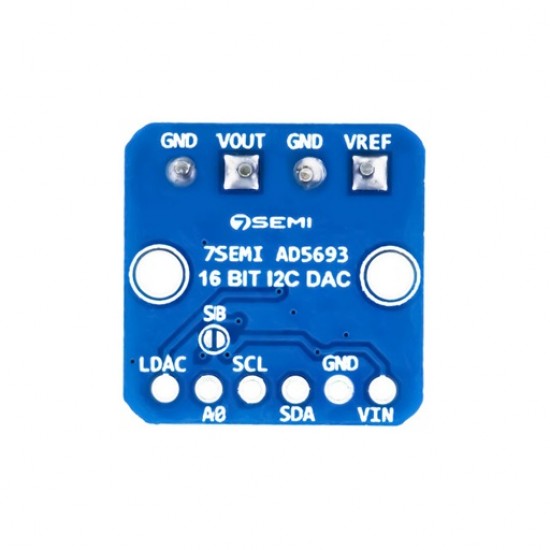

Easy Integration: Breakout design with 6-pin header for breadboards and 3.5mm terminal block connector for easy wiring.
TYPE OF PRODUCT: DIGITAL TO ANALOG CONVEERTER

Specifications

IC USED: AD5693R
SUPPLY VOLTAGE (VIN): 3.3V
OPERATIONAL TEMPRATURE: -40°C TO 80°C
TOPOLOGY: R-2R Ladder DAC
RESOLUTION: 16 BIT
SAMPLING RATE: 50KSPS

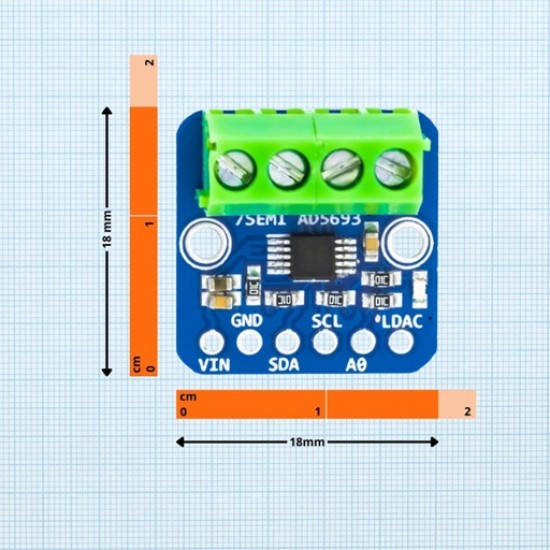

DIMENSION IN MM: L=18mm W=18mm H=10.38mm

Package Includes

1x AD5693R 16Bit I2C DAC Breakout
