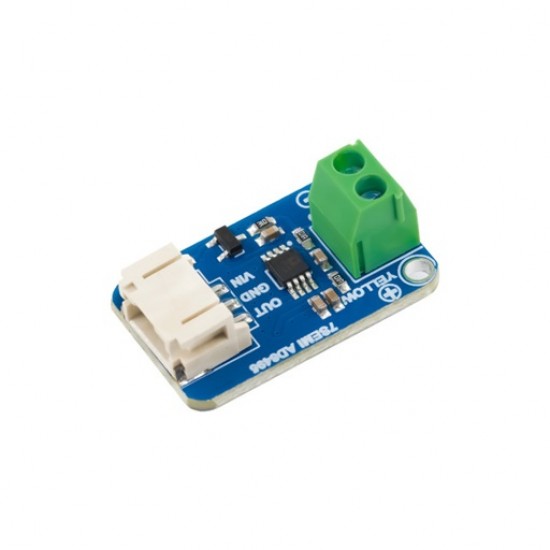

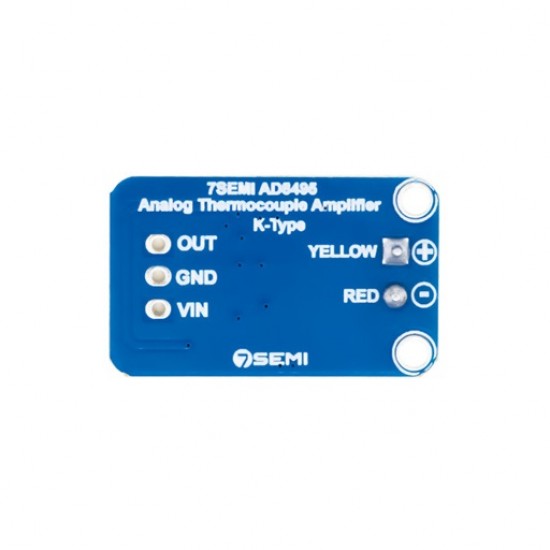

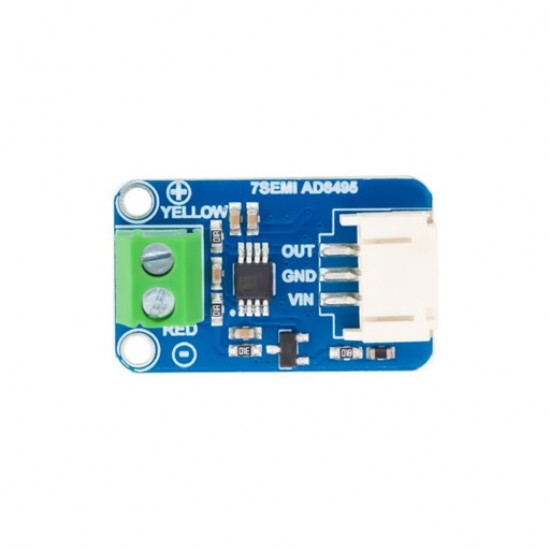

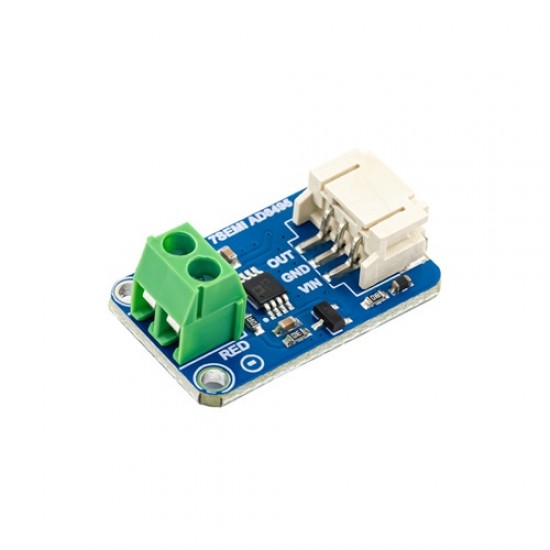

AD8495 Analog K-Type Thermocouple Amplifier Breakout

The 7Semi AD8495 Thermocouple Temperature Sensor Module is a precision temperature measurement solution designed for use with K-type thermocouples. Based on the Analog Devices AD8495 thermocouple amplifier, the module provides accurate temperature sensing with integrated cold-junction compensation, simplifying the interface between thermocouples and microcontrollers or data acquisition systems.

Operating from a 5V supply, the module converts the low-level thermocouple signal into a linear analog voltage output that can be directly measured by ADC inputs on Arduino, ESP32, STM32, Raspberry Pi Pico, and other embedded platforms. The integrated cold-junction compensation improves measurement accuracy by automatically compensating for ambient temperature variations.

Designed for industrial monitoring, process control, laboratory equipment, heating systems, and embedded sensing applications, the module offers reliable performance across a wide operating temperature range of -40°C to +80°C.

Datasheet

Features

Based on the Analog Devices AD8495 precision thermocouple amplifier
Supports K-type thermocouple temperature sensors
Integrated cold-junction compensation
Linear analog voltage output
High accuracy temperature measurement
5V operating supply
Low power consumption
Compact module for embedded applications
Easy interfacing with microcontrollers and ADC systems
Suitable for industrial and laboratory environments

Specifications

Category of product: Thermocouple
Operational voltage: 3.3V
Operating Temperature: -40C to 80C

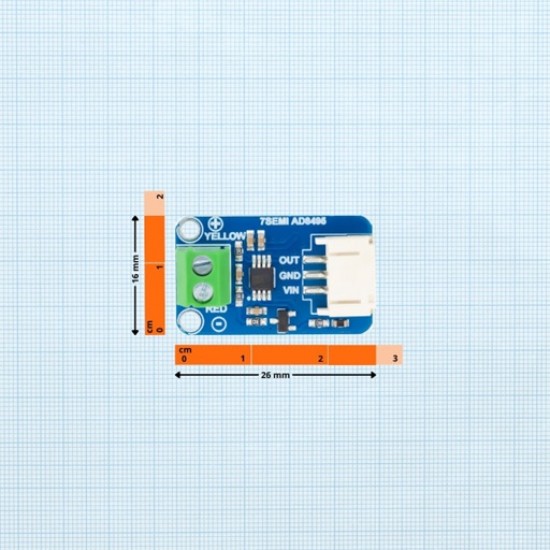

Dimension In mm: L=26mm W=16mm H=11.88mm

Package includes

1x AD8495 Analog K-Type Thermocouple Amplifier Breakout
