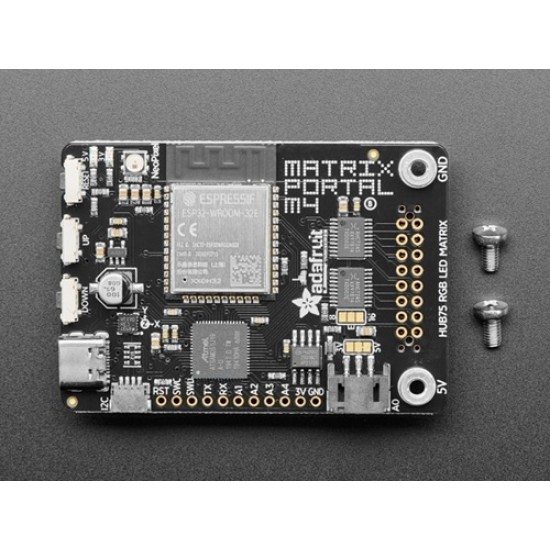

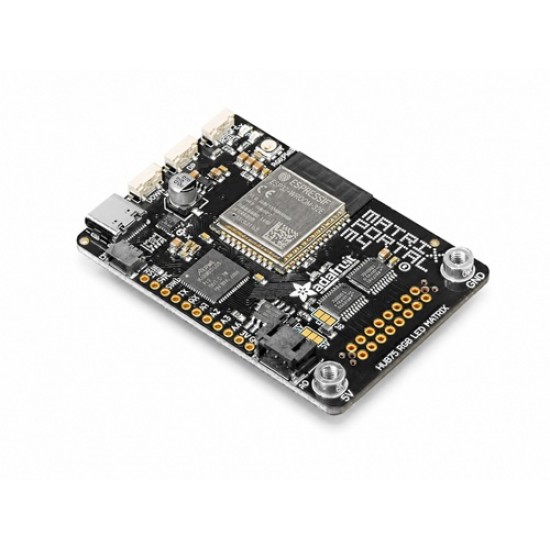

Adafruit Matrix Portal - CircuitPython Powered Internet Display

The Matrix Portal uses an ATMEL (Microchip) ATSAMD51J19, and an Espressif ESP32 Wi-Fi coprocessor with TLS/SSL support built-in. The M4 and ESP32 are a great couple - and each bring their own strengths to this board. The SAMD51 M4 has native USB so it can show up like a disk drive, act as a MIDI or HID keyboard/mouse, and of course bootload and debug over a serial port. It also has DACs, ADC, PWM, and tons of GPIO, so it can handle the high speed updating of the RGB matrix.

Meanwhile, the ESP32 has secure WiFi capabilities, and plenty of Flash and RAM to buffer sockets. By letting the ESP32 focus on the complex TLS/SSL computation and socket buffering, it frees up the SAMD51 to act as the user interface. You get a great programming experience thanks to the native USB with files available for drag-n-drop, and you don't have to spend a ton of processor time and memory to do SSL encryption/decryption and certificate management. It's the best of both worlds!


User Manual / Datasheet / Example Codes Etc.


Features

  • ATSAMD51J19 Cortex M4 processor, 512KB flash, 192K of SRAM, with full Arduino or CircuitPython support
  • ESP32 WiFi co-processor with TLS support and SPI interface to the M4, with full Arduino or CircuitPython support
  • USB Type C connector for data and power connectivity
  • LIS3DH accelerometer for digital sand projects or detecting taps/orientation.
  • GPIO breakouts including 4 analog outputs with PWM and SPI support for adding other hardware.
  • Address E line jumper for use with 64x64 matrices (check your matrix to see which pin is used for address E!
  • Two user interface buttons + one reset button
  • Indicator NeoPixel and red LED
  • Green power indicator LEDs for both 3V and 5V power

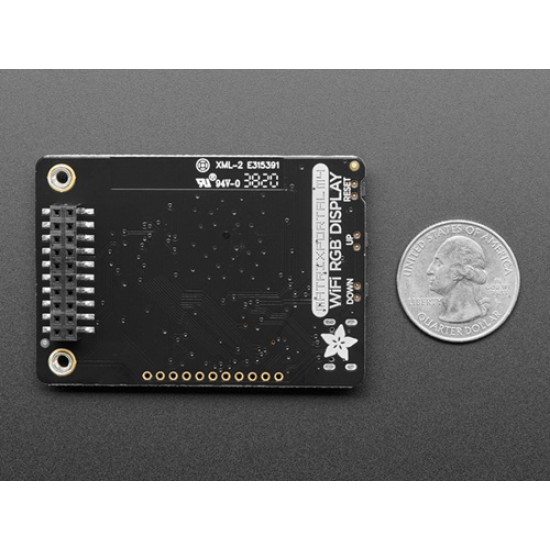

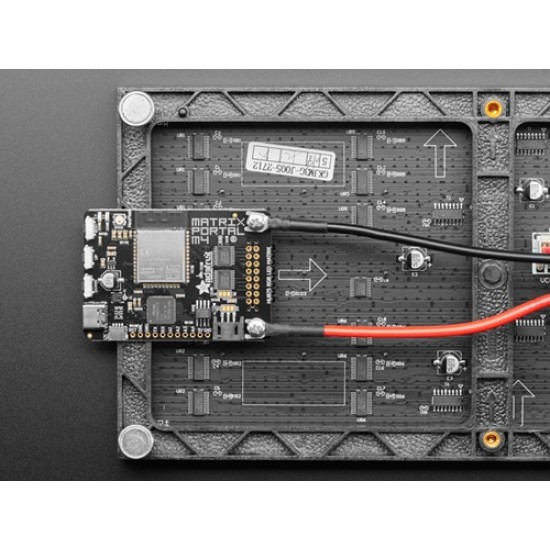

  • 2x10 socket connector fits snugly into 2x8 HUB75 ports without worrying about 'off by one' errors.


Specifications

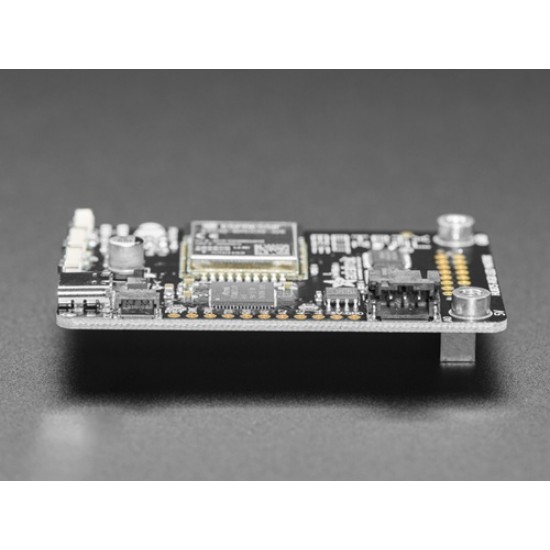

  • Product Dimensions: 63.3mm x 44.5mm x 16.0mm / 2.5" x 1.8" x 0.6"
  • Product Weight: 17.0g / 0.6oz


Package Includes

  • 1x Adafruit Matrix Portal - CircuitPython Powered Internet Display
