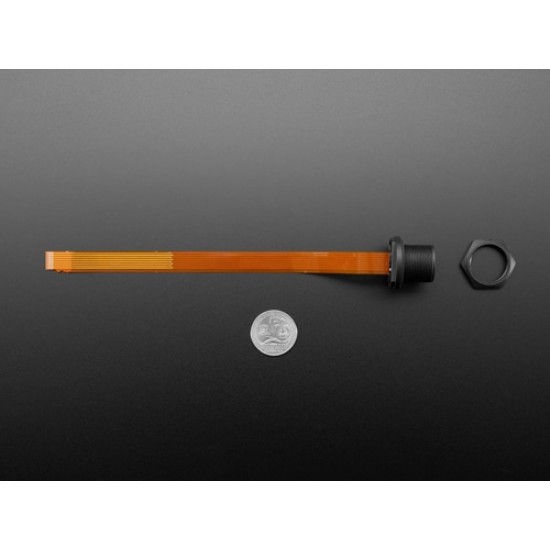

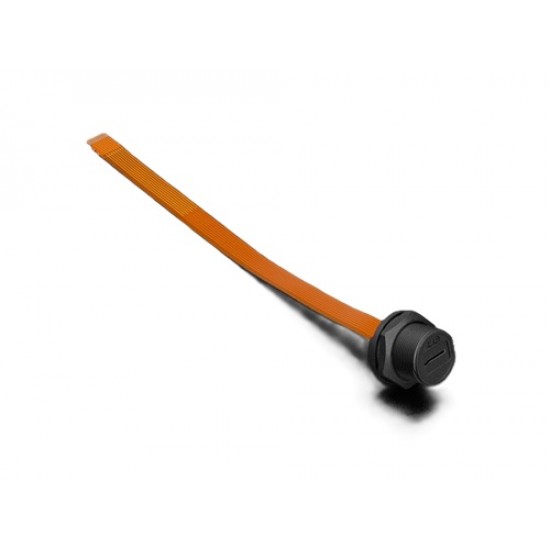

Adafruit Round Panel Mount Micro SD Card Extender

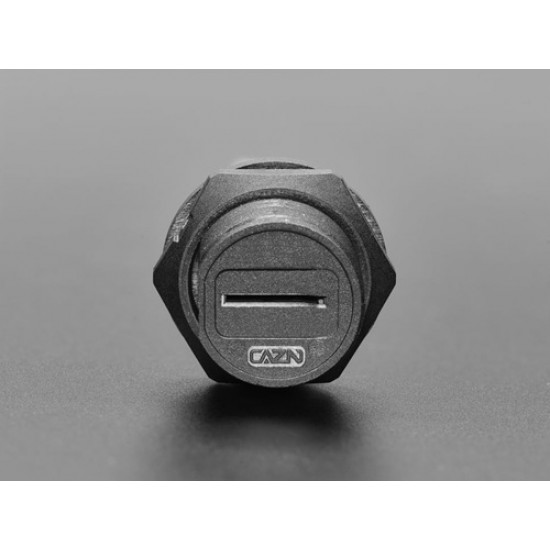

If you need to add a panel-mount connection that extends a micro SD card, this Round Panel Mount MicroSD Adapter Plug is the easiest and fastest way to panel-ify your project. The adapter is about 30mm in diameter, so you can drill a hole in your wood, plastic or metal with a common hole-saw or bit, no special shapes or filing required. Un-screw the plastic nut, insert the plug and re-attach. Ta-da! Now you have a microSD extension cable!

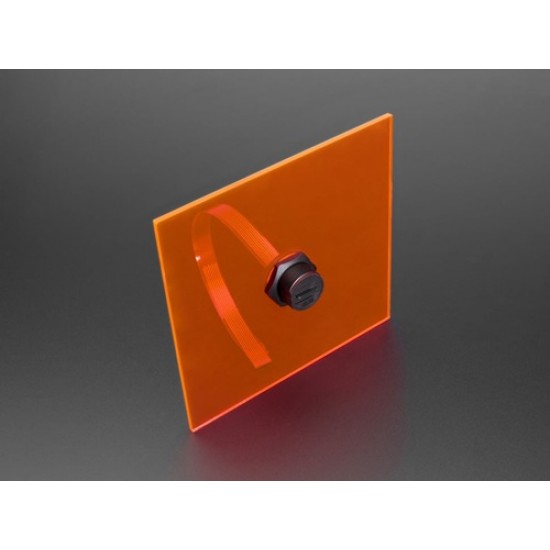

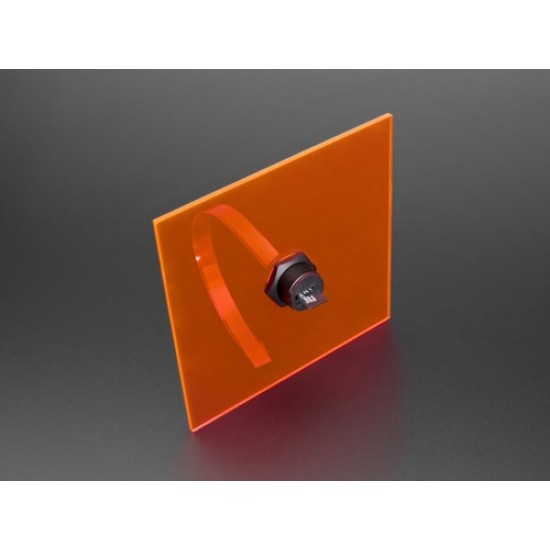

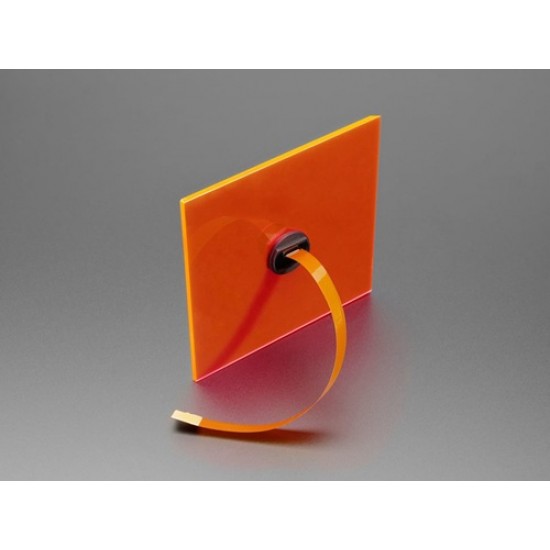

It's designed to easily attach to a panel up to 16mm thick (or 0.625"), or as thin as a few mm. Perfect for adding extra storage to your project enclosure! We like this plug in particular for its solid body and 'forgiving' plastic lip that hides the drill hole.
Please note: We did test this with a microSD card reader and it works very well but many devices use the mechanical removal of the card to detect when the media has changed. Since this extender end stays plugged in, there's no way for the host to know you swapped cards. What that means is that if you have an operating system where you cannot 'force' the rescanning of the SD card, it will not realize that its changed. This may be OK, especially if you're using it for, say, a boot SD for Raspberry Pi that you would shut down between swaps, or a 3D printer where you can tell it to reload or reboot.
User Manual / Datasheet / Example Codes Etc.
Features
- Round panel-mount design for convenient installation in enclosures and control panels.
- Extends access to a Micro SD card slot from inside an enclosure to an accessible external location.
- Enables convenient Micro SD card insertion and removal without opening the enclosure.
- Suitable for embedded electronics, DIY projects, and prototyping applications.
- Helps provide convenient access to storage cards in compact electronic systems.
- Ideal for projects using compatible Micro SD card interfaces.
- Compact design for space-constrained applications.
Specifications
- Product Name: Round Panel Mount Micro SD Card Extender
- Product Type: Micro SD Card Extension Cable
- Connector Type: Micro SD card interface
- Mounting Type: Round Panel Mount
- Primary Function: Extends Micro SD card access through an enclosure panel
- Application: Embedded systems, electronics projects, and prototyping
- Installation: Panel or enclosure mounting
- Compatibility: Devices with a compatible Micro SD card slot
Package Includes
- 1x Adafruit Round Panel Mount Micro SD Card Extender
