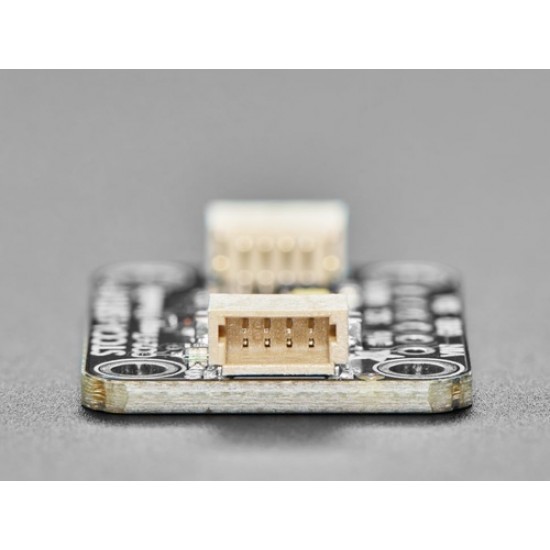

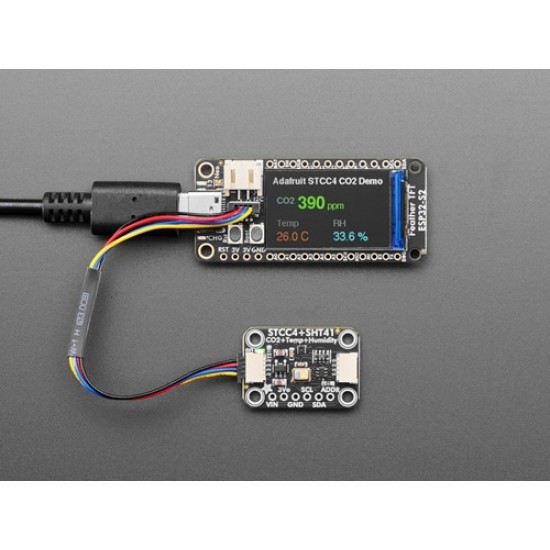

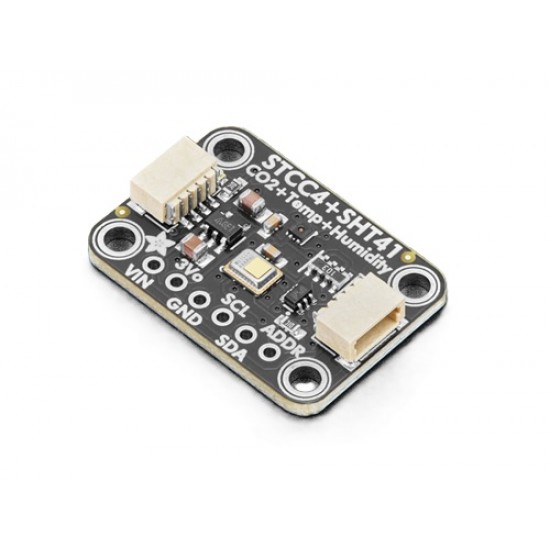

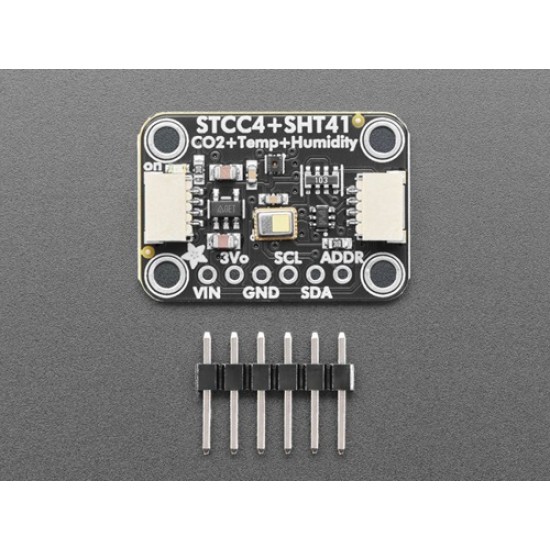

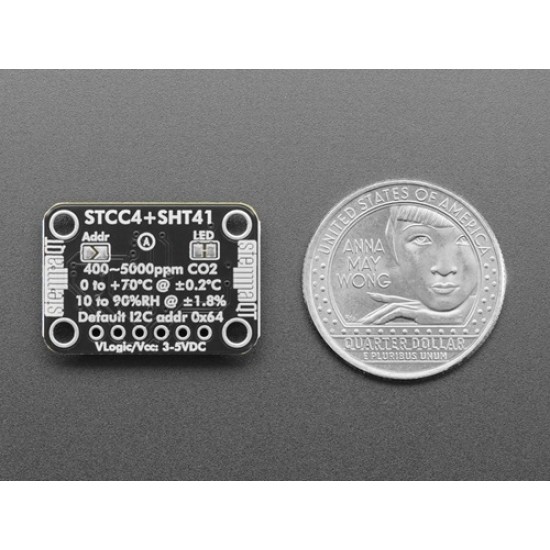

Adafruit STCC4 and SHT41 - CO2, Temperature & Humidity Sensor - STEMMA QT / Qwiic
The Adafruit STCC4 and SHT41 Sensor Breakout combines the Sensirion STCC4 CO₂ sensor with the SHT41 temperature and humidity sensor to provide reliable environmental monitoring in a compact, easy-to-use module. It measures carbon dioxide (CO₂) concentration, temperature, and relative humidity, making it suitable for indoor air-quality monitoring and climate-control applications.
The STCC4 uses a photoacoustic sensing principle for CO₂ measurement, while the SHT41 provides high-accuracy temperature and humidity measurements. Communication is handled through the I²C interface, with convenient STEMMA QT / Qwiic connectors for quick, solder-free connection to compatible microcontrollers and development boards.
This breakout is well suited for indoor air-quality monitors, smart home systems, HVAC monitoring, environmental data logging, IoT projects, and embedded sensing applications. Its compact design and straightforward I²C interface make it easy to integrate into both prototype and finished projects.
User Manual / Datasheet / Example Codes Etc.
STCC4 Specifications & Features
- Thermal conductivity measurement principle
- CO2 measurement accuracy ±(100 ppm + 10%) from 400 – 5,000 ppm
- Digital I2C interface and calibrated output signal
- Avg. current consumption below 100 µA in single shot measurement mode
- Configurable I2C address, default 0x64 can be set to 0x65
SHT41 Specifications & Features
- Relative humidity accuracy: up to ±1.8 %RH
- Temperature accuracy: up to ±0.2 °C
- Breakout supply voltage: 3.3 to 5V
- Average bare sensor current: 0.4 μA (at meas. rate 1 Hz)
- Idle bare sensor current: 80 nA
- I2C fast mode plus, CRC checksum
- Operating range: 0…100 %RH, -40…125 °C
- Fully functional in condensing environment
- Variable power heater
- NIST traceability for sensor
- JEDEC JESD47 qualification for sensor
- Mature technology from global market leader Sensirion
- I2C address 0x44
Package Includes
- 1x Adafruit STCC4 and SHT41 - CO2, Temperature & Humidity Sensor - STEMMA QT / Qwiic
