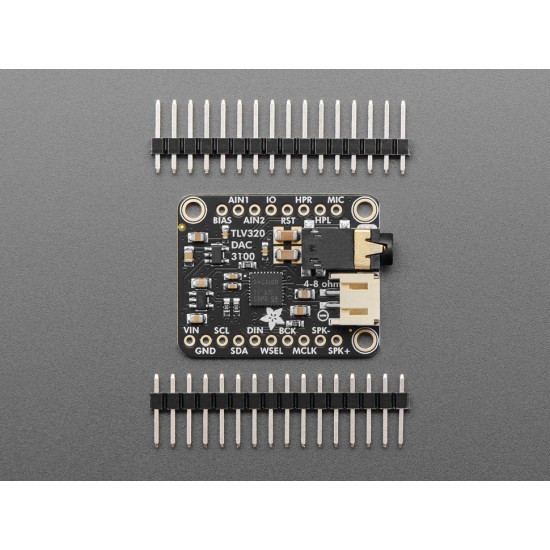

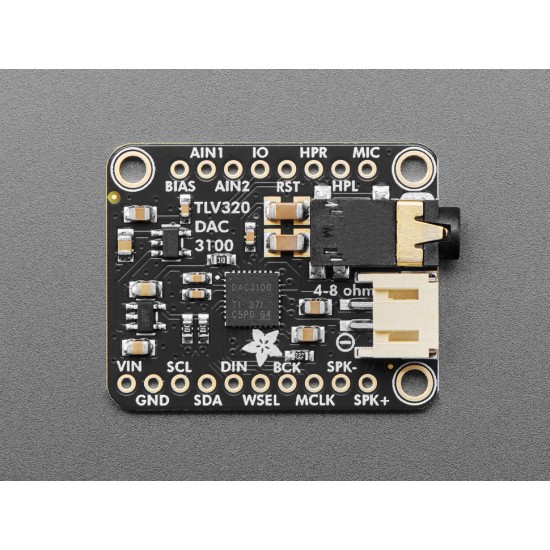

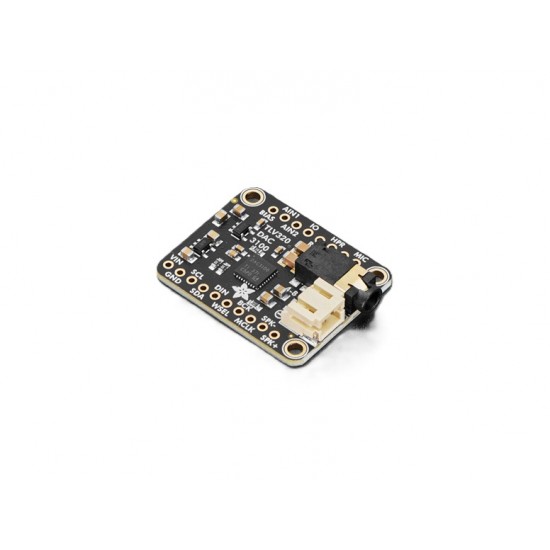

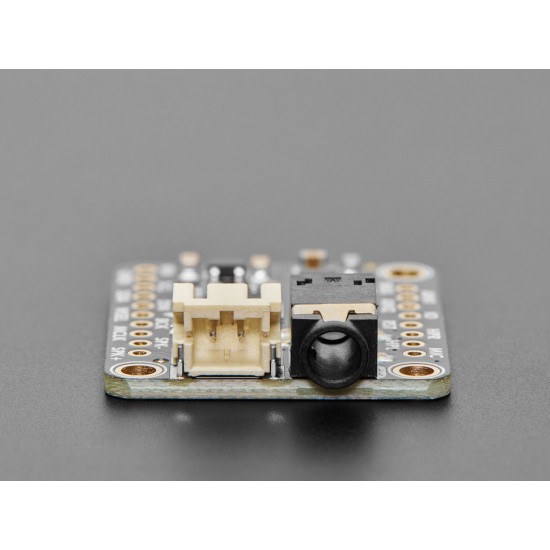

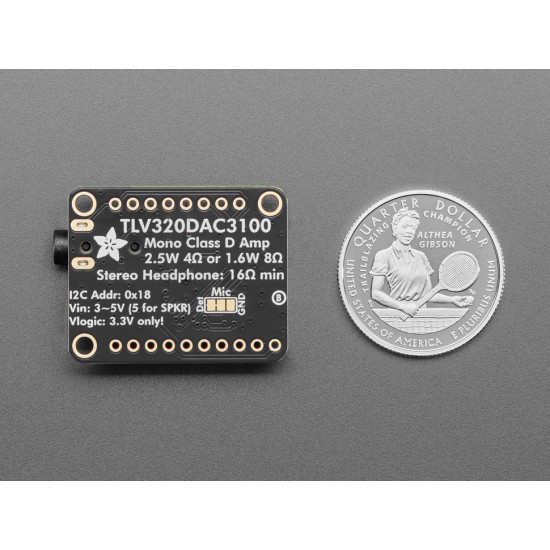

Adafruit TLV320DAC3100 I2S Audio DAC Board with Headphone and Speaker Out

The Adafruit TLV320DAC3100 I2S DAC with Headphone and Speaker Out is a compact, high-performance digital audio breakout designed for makers and embedded audio projects. Built around the Texas Instruments TLV320DAC3100 codec, this board converts digital I2S audio into crystal-clear analog sound with support for both stereo headphone output and mono speaker output. It is ideal for Raspberry Pi, ESP32, RP2040, Arduino, and other microcontroller-based audio applications.

Unlike basic I2S DAC modules, this board includes an integrated stereo headphone amplifier and a mono Class-D speaker amplifier, allowing direct connection to 16Ω headphones or 4Ω–8Ω speakers without requiring an additional amplifier circuit. The onboard PLL eliminates the need for an external master clock (MCLK), simplifying integration with many I2S-capable development boards.

The DAC supports multiple digital audio formats including I2S, Left-Justified, Right-Justified, DSP, and TDM interfaces, with sampling rates ranging from 8kHz to 192kHz. Advanced DSP features such as digital filters, mixing, volume control, and programmable audio processing blocks make it suitable for portable audio devices, smart speakers, voice interfaces, and multimedia systems.

User Manual

Features

High-quality TLV320DAC3100 stereo audio DAC
Stereo headphone output with onboard amplifier
Mono Class-D speaker output
Supports direct connection to 16Ω headphones
Drives 4Ω–8Ω speakers without external amplifier
I2S digital audio input interface
Supports up to 192kHz audio sampling
Built-in PLL for clock generation without MCLK
Configurable over I2C interface
Compatible with Arduino, CircuitPython, and Python libraries
TRRS headset microphone bias and detection support
Compact breakout design for embedded projects

Specifications

DAC Chip: TI TLV320DAC3100
Audio Interface: I2S / Left-Justified / Right-Justified / DSP / TDM
Control Interface: I2C
Sampling Rate: 8kHz to 192kHz
Headphone Output: Stereo
Speaker Output: Mono Class-D
Speaker Power: 2.5W into 4Ω, 1.6W into 8Ω
Signal-to-Noise Ratio: 95dB
Operating Voltage: 3V–5V DC
Logic Level: 3.3V
Dimensions: 33.7mm × 25.4mm × 7.1mm
Weight: 4g

Package Includes

1x TLV320DAC3100 I2S Audio DAC Board with Headphone and Speaker Out
