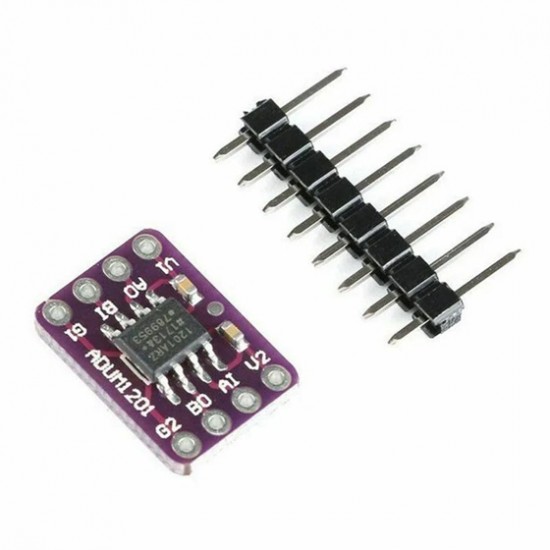

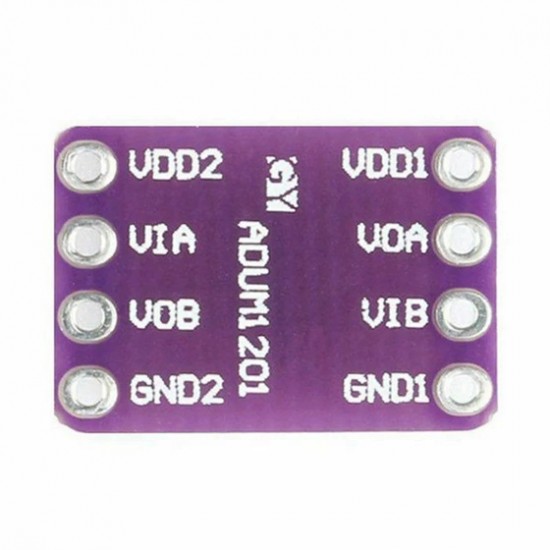

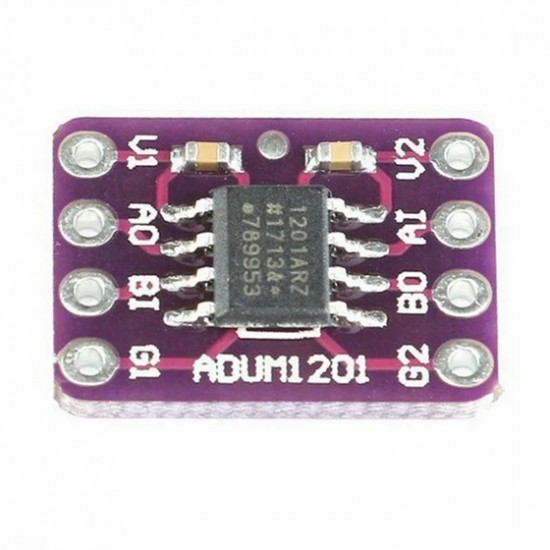

ADUM1201 Magnetic Digital Isolator Module
The ADuM1201 Magnetic Digital Isolator Module is a high-performance dual-channel digital isolator designed to provide reliable signal isolation in industrial, automotive, and embedded electronic applications. Based on Analog Devices iCoupler® technology, this module uses chip-scale transformer isolation instead of traditional optocouplers, ensuring faster data rates, improved reliability, and longer operational life.
This module is ideal for isolating SPI, UART, and other digital communication signals, protecting sensitive low-voltage circuitry from high-voltage transients, ground loops, and electrical noise. With its compact design and low power consumption, the ADuM1201 is well-suited for space-constrained and energy-efficient designs.
Features
- Dual-channel digital isolation (2 channels in one package)
- Magnetic (transformer-based) isolation using iCoupler® technology
- High data rate support up to 1 Mbps
- Low propagation delay and high timing accuracy
- Excellent common-mode transient immunity (CMTI)
- Wide operating voltage range (typically 3.0V to 5.5V)
- Low power consumption compared to optocouplers
- Compact and easy-to-integrate module design
Specifications
- Isolation Type: Magnetic coupling
- Number of Channels: 2 (unidirectional or bidirectional depending on configuration)
- Data Rate: Up to 1 Mbps
- Supply Voltage: 3.0V – 5.5V
- Isolation Voltage: Typically 2500 Vrms (depending on module design)
- Propagation Delay: ~45 ns (typical)
- Operating Temperature: -40°C to +125°C
Package Includes
- 1x ADUM1201 Magnetic Digital Isolator Module
