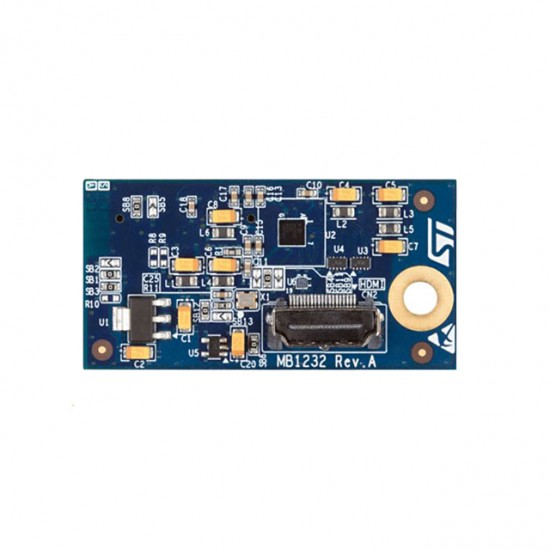

Name: ST Microelectronics B-LCDAD-HDMI1- DSI to HDMI Adapter Board for STM32 Development Tools
Brand: ST Microelectronics
SKU: 07384
Price: 3499.00 INR
Availability: OutOfStock

ST Microelectronics

ST Microelectronics B-LCDAD-HDMI1- DSI to HDMI Adapter Board for STM32 Development Tools

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)

Based on 0 reviews. - Write a review

₹3,499.00

₹2,965.25 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 30
B2B GST Credit Available

Price in reward points: 2963

Stock: 0 in Stock
SKU: 07384
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

ST Microelectronics B-LCDAD-HDMI1- DSI to HDMI Adapter Board for STM32 Development Tools

The DSI to HDMI adapter board (order code B-LCDAD-HDMI1) provides DSI input port and HDMI output port. It can be used on STM32 evaluation boards or discovery boards, to demonsnstrate video solutions based on STM32 MCUs.

Thanks to the bridge chip ADV7533, the DSI to HDMI adapter board can support 2-, 3- or 4-lanes DSI video input data, S/PDIF, 2-channels I2S audio input data and HDMI v1.3 output port.

Datasheet

Features

Up to four lanes of MIPI/DSI data, each running, up to 800 Mbps (video mode only: Non-Burst mode with synchronization pulse)
2-channels I2S transmits stereo up to 192 kHz sampling rate
S/PDIF carries stereo LPCM audio or compressed audio
HDMI output connector:

Support of video resolutions with pixel clocks up to 80 MHz
Support of CEC signals, 5 V-tolerant I2C and HPD I/Os
Common-mode filters with ESD protection
