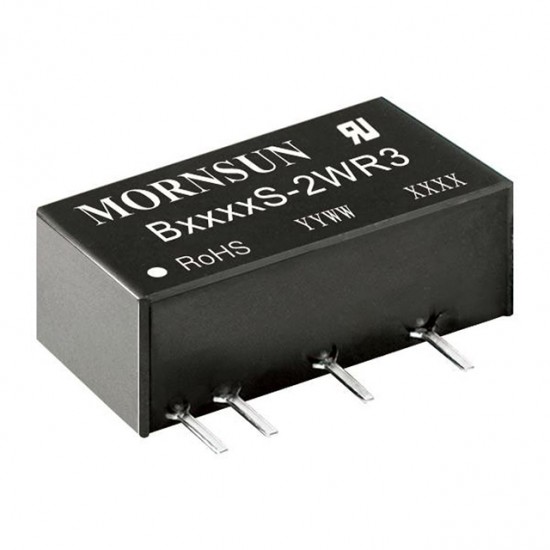

Mornsun B1205S-2WR3 2W Isolated DC-DC Converter

The Mornsun B1205S-2WR3 series is a compact, high-efficiency 2W isolated DC-DC converter module, designed to provide reliable voltage conversion in industrial, communication, and embedded applications. With wide input voltage ranges, built-in short-circuit protection, and 1500VDC isolation, this module ensures robust performance and safety in demanding environments.



Features

• Constant voltage input, isolated unregulated output 2W power
• Isolation Voltage: 1500VDC
• Low no-load power consumption: 0.025W (Typ.)
• Efficiency: up to 90% (Typ.)
• Working temperature: -40°C ~ +85°C
• MTBF≥3.5million hours(3500000Hrs)
• Output short circuit protection: continuous short circuit protection, automatic recovery
• Small SIP Package, Plastic Housing
• International standard pin method
• Ripple / Noise ( 20MHz bandwidth ) :30mVp-p (Typ.)

Resources

Technical Datasheet [PDF]
