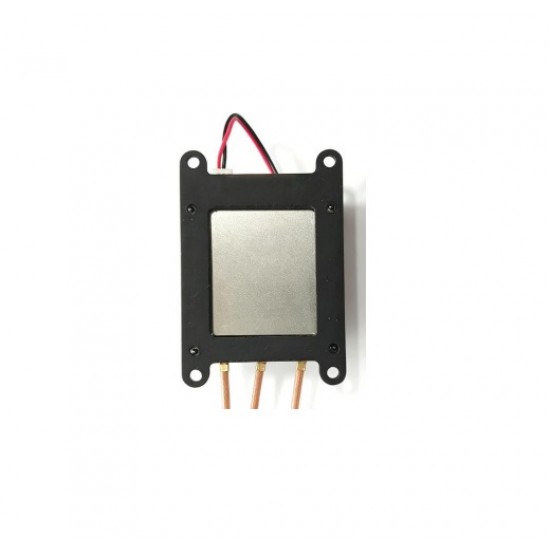

LB-LINK BL-M8812EU6-6W 5GHz High-Power WiFi Module – 6W Output, RTL8812EU, USB 2.0, 867Mbps

The BL-M8812EU6-6W is a 5GHz Single-Band High-Power wireless module with three-Antennas, consisting of a USB-interface Controller, a power management unit(PMU), a WLAN MAC, WLAN Baseband, High-Power Front- End Module(FEM), Low Noise Amplifier(LNA). This module is Compliant with the IEEE 802.11 standards and supports not only High-Power transmission/Maximal Ratio Combining (MRC) reception, but also 10MHz narrowband channels communication, which significantly extends the wireless communication range. It is ideal solution for Long-Range audio/video transmission in UAV applications.


Datasheet


Features

  • Operating Frequency: 5.15~5.85GHz
  • IEEE Standards: IEEE 802.11a/n, Support 10/20MHz bandwidth
  • High-Power: TX_ANTO Max peak TX Power up to 6 W, and T/RX_ANT1 up to 2 W
  • Support High-Power@Low-data Rate configurations, optimized for Long-Range TX applications
  • High-Sensitivity: RX_ANTO and T/RX_ANT1 Mini RX level as low as -96dBm

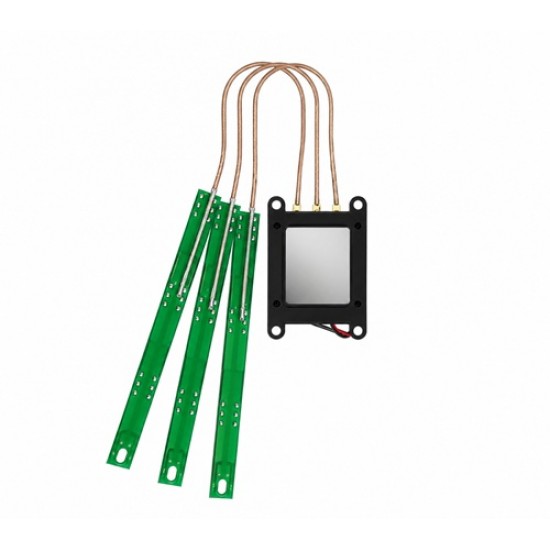

  • Supplied with professional-grade 5G RF external antennas
  • Host Interface is USB 2.0

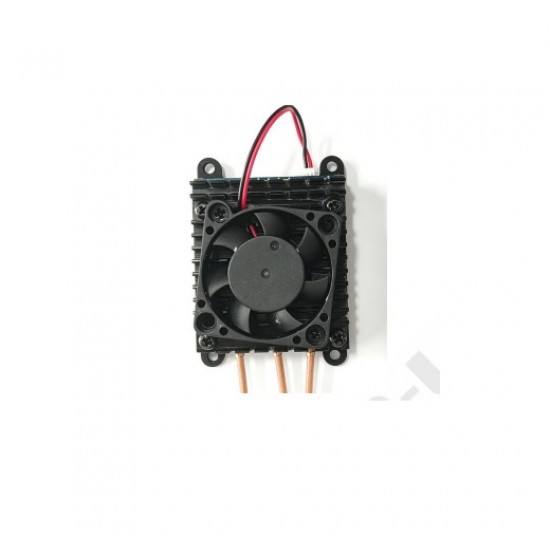

  • Equipped with a Fan and Heat sink


Specifications

  • Module Name: BL-M8812EU6-6W
  • WLAN Standards: IEEE 802.11a/n
  • Host Interface: USB 2.0
  • Antenna: Connect to the external antennas through IPEX connectors
  • Dimension: 51.4*36.0*19.1mm (L*W*H)
  • Power Supply: DC 7~26V(DC12V@ Peak Current ≥ 1.5A.)
  • Operation Temperature: -20°C to +70°C
  • Operation Humidity: 10% to 95% RH (Non-Condensing)


Package Includes

  • 1x LB-LINK BL-M8812EU6-6W 5GHz High-Power WiFi Module – 6W Output, RTL8812EU, USB 2.0, 867Mbps
