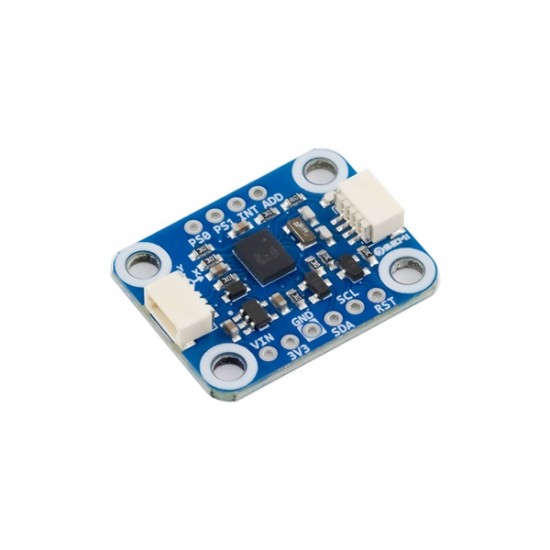

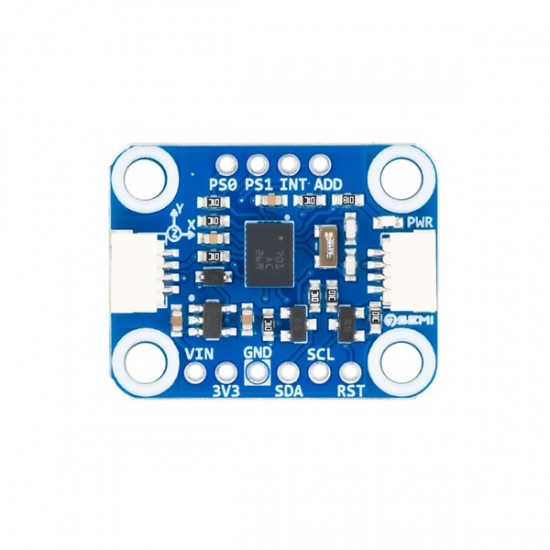

BNO055 9-DOF Absolute Orientation Sensor Breakout I2C Qwiic

BNO055 Sensor Module is an advanced motion sensor that can directly give you orientation and movement data without complex calculations. It combines accelerometer, gyroscope, and magnetometer in one module and processes all data internally, so you get ready-to-use output like angles and motion values. This makes it very easy to use compared to normal sensors. It works on both 3.3V and 5V and communicates using I2C, making it simple to connect. Its compact size and stable performance make it ideal for robotics, drones, motion tracking, and other projects where accurate orientation is needed.

Datasheet

Features

9-Axis Motion Sensing: Combines acceleration, rotation, and magnetic sensing in one module.
Built-in Processing: Gives direct orientation output without complex coding.
Accurate Orientation Data: Provides angles, rotation, and motion information.
Multiple Output Types: Supports Euler angles, quaternion, and motion data.
I2C Communication: Simple and easy connection.
Wide Voltage Support: Works with 3.3V and 5V systems.
Low Power Usage: Suitable for battery-powered projects.
Compact Size: Easy to use in small and embedded designs.
Stable Performance: Reliable data for robotics, drones, and tracking applications.

Specifications

Sensor Type: 9-DOF Absolute Orientation IMU
Motion Sensors: 3-Axis Accelerometer + 3-Axis Gyroscope + 3-Axis Magnetometer
Interface: I²C (Qwiic Compatible)
I²C Address: 0x28 (default) or 0x29
Operating Voltage: 2.4V – 16V (breakout board)
Logic Support: 3.3V and 5V compatible
Accelerometer Range: ±2g, ±4g, ±8g, ±16g
Gyroscope Range: ±125°/s to ±2000°/s
Magnetometer Range: ±1300µT (X/Y), ±2500µT (Z)
Orientation Output: Euler Angles, Quaternions
Additional Outputs: Gravity Vector, Linear Acceleration, Angular Velocity, Magnetic Field Strength
Sensor Fusion: Integrated ARM Cortex-M0+ running Bosch fusion firmware
Temperature Range: -40°C to +85°C

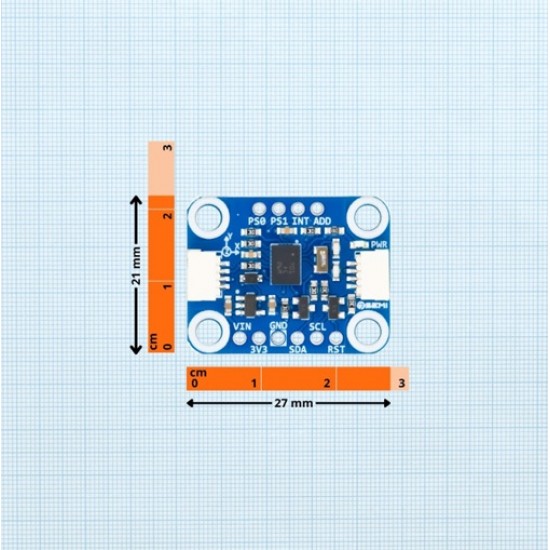

Dimensions: 27mm × 21mm × 4.75mm
Connector: Qwiic JST-SH 4-Pin
Mounting: PCB mounting holes provided
Applications: Robotics, Drones, VR/AR, Wearables, Motion Tracking, Navigation, Camera Stabilization

Package Includes

1x BNO055 9-DOF Absolute Orientation Sensor Breakout I2C Qwiic
