    BNO086 9-DOF Orientation VR IMU Fusion Breakout Qwiic

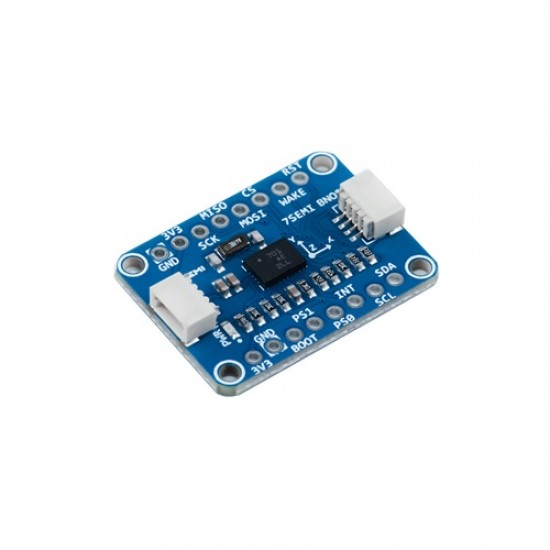

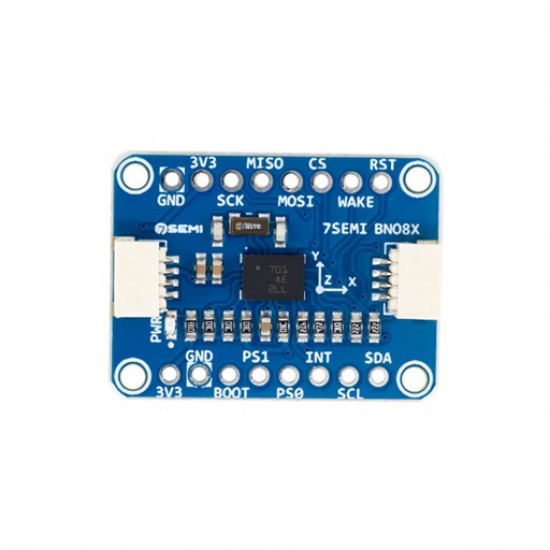

    The 7Semi BNO086 9-DOF Orientation VR IMU Fusion Breakout integrates a 3-axis accelerometer, gyroscope, and magnetometer, providing precise orientation and motion sensing. It features a 32-bit ARM Cortex M0+ processor running advanced sensor fusion algorithms, delivering accurate rotation vector data with a static rotation error of less than 2 degrees. The breakout board supports I2C, SPI, and UART interfaces, and includes Qwiic connectors for easy integration into various projects.




    Features

      • Advanced Sensor Fusion Technology
        • Combines accelerometer, gyroscope, and magnetometer data with drift correction for high-precision outputs.
        • Produces rotation vector readings with dynamic error under 3.5° and static error under 2.0°.
      • Wide Compatibility:
        • Supports I2C (default, up to 400kHz), SPI (up to 3MHz), and UART (up to 3Mbps) communication protocols.

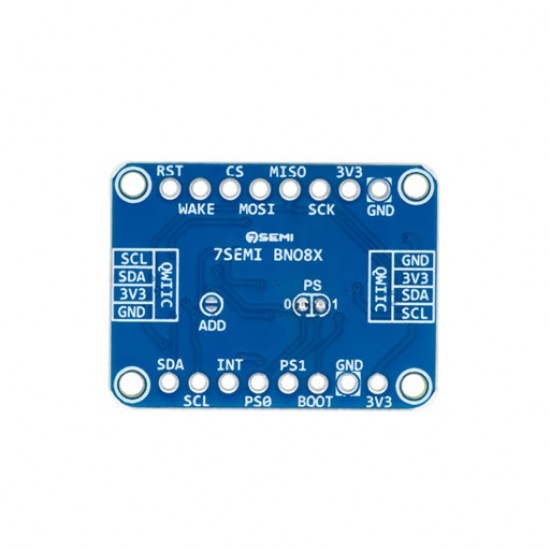

        • Dual I2C address options via solder jumpers (default: 0x4B, alternate: 0x4A).
      • Enhanced Power Efficiency:
        • Operates at 2.4V - 3.6V with typical 3.3V via Qwiic cable for reduced power consumption.
      • Interactive Calibration and Activity Tracking:
        • Includes features like 14-bit accelerometer fusion and activity classification (e.g., biking, running)


      Specifications

      • AXIS-FOV:9-DOF
      • OPERATING VOLTAGE:3.3V
      • OPERATIONAL TEMPRATURE IN °C:-40 TO 80
      • ACCELARATION:±2g, ±4g, ±8g, ±16g
      • GYROSCOPE:±125 / ±250 / ±500 / ±1000 / ±2000 dps

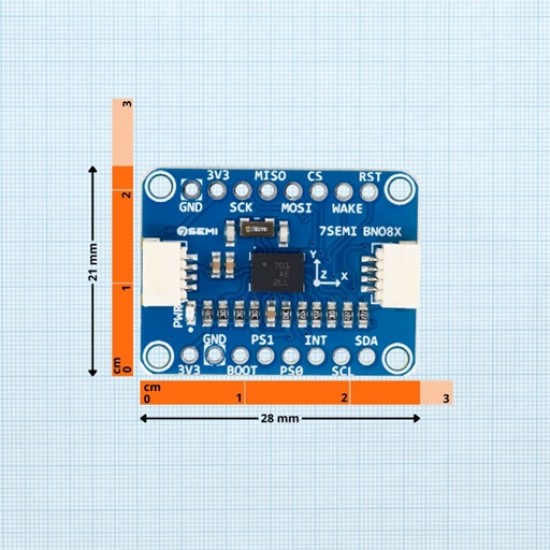

      • DIMENSION:28mm X 21mm X 5mm
      • MAGNETOMETER:1300UT


      Package Includes

      • 1x BNO086 9-DOF Orientation VR IMU Fusion Breakout Qwiic

      Write a review

      Note: HTML is not translated!
      Bad Good
      Captcha

      Warranty Terms :

      Branded products (Waveshare/ Raspberry Pi/ Radxa/ DWIN etc) are as per brand warranty terms. Generic products are eligible for replacement within 7 days of delivery based on following conditions.

      Products are eligible for a replacement if there is physical damage during transit or a clear manufacturing defect. Any claim for damage/ wrong items/ replacement must be made within 48 hours of successful delivery of the product. Requests for refund of amount or exchange of product(s) will be reviewed on a case by case basis and HUBTRONICS carries final rights to take a final decision on refund, store credit or exchange.

      What to take care of ?

      Most of our products are technical in nature and require trained personnel to handle them. Any kind of mishandling can result in damage or malfunctioning of the product, it is not possible for us to provide a replacement or refund if the product is damaged due to technical or physical mishandling.

      Who pays the return shipping cost?

      Free of cost return pickup from delivery address is eligible for products categorized as manufacturing defect/ Damage in transit/ Wrong items delivered. We do not support return pickup for any B2B order or offline orders not placed on website. Buyer need to arrange return shipping for B2B orders.

      What voids warranty?

      Please note that replacement/ return or refund is not possible if the product is not compatible with your system/application. Please check all the technical details/ dimensions etc. before ordering and contact us for any kind of clarifications.

      If product is soldered/ programmed at any point or physically altered in any way, it is not eligible for return/ replacement. If the item requires soldering for testing, please ensure that you use suitable clips or jig to test it without soldering. Any kind of soldering job makes the product ineligible for return or replacement.

      Following items are not eligible for return under any circumstances

      • Device Programmers / Dongles
      • Soldering Consumables (Wire, Flux etc)


      Tags: BNO086 , IMU Fusion Breakout

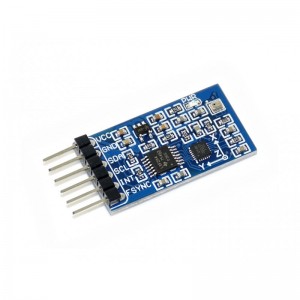

      10 DOF IMU Sensor, ICM20948 Onboard, Low Power, High Precision
      10 DOF IMU Sensor, ICM20948 Onboard, Low Power, High Precision
      10 DOF IMU Sensor (D) features the low power ICM20948 onboard, it is good at motion monitoring, as well as detecting/measuring the position, height, ..
      ₹​1,919.00
      Ex Gst ₹​1,626.27
      Add to Cart
      Add to Wish List Compare this Product

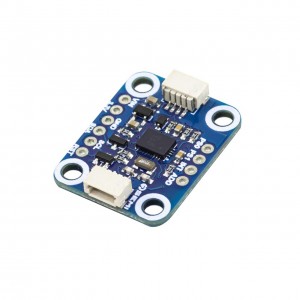

      BNO055 9-DOF Absolute Orientation Sensor Breakout I2C QWIIC
      BNO055 9-DOF Absolute Orientation Sensor Breakout I2C QWIIC
      Explore the revolutionary BNO055 9-Axis Absolute Orientation Breakout by 7SEMI - the definitive answer for achieving accurate and precise orientation..
      ₹​1,150.00
      Ex Gst ₹​974.58
      Add to Cart
      Add to Wish List Compare this Product
      Adafruit 9-DOF Absolute Orientation IMU Fusion Breakout - BNO055
      Adafruit 9-DOF Absolute Orientation IMU Fusion Breakout - BNO055
      Adafruit 9-DOF Absolute Orientation IMU Fusion Breakout - BNO055The Adafruit 9-DOF Absolute Orientation IMU Fusion Breakout - BNO055 is a smart inerti..
      ₹​4,727.00
      Ex Gst ₹​4,005.93
      Add to Cart
      Add to Wish List Compare this Product

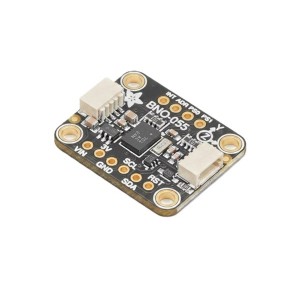

      Adafruit 9-DOF Absolute Orientation IMU Fusion Breakout - BNO055 - STEMMA QT / Qwiic
