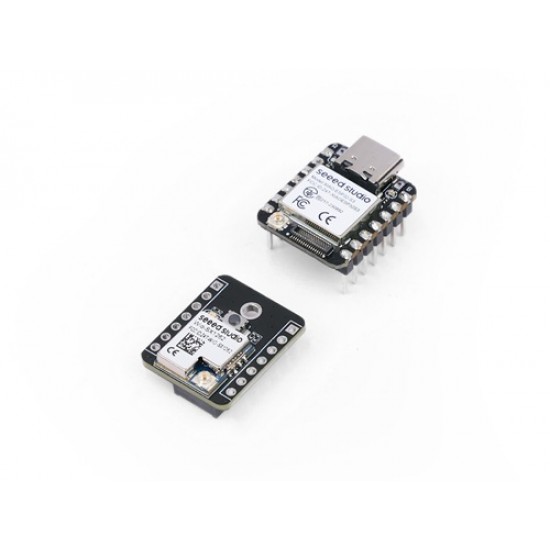

Seeed Studio XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa
This thumb-sized LoRa development kit, which consists of the XIAO ESP32S3 and the Wio-SX1262 LoRa module, is an ideal starter kit for Meshtastic and LoRa/LoRaWAN projects. Supporting WiFi, BLE, and LoRa, it includes a built-in power management chip and can be extended via IIC, UART, and other GPIO interfaces, and is compatible with Arduino development. The XIAO ESP32S3 & Wio-SX1262 Kit is a single-channel LoRaWAN LoRa module with a low price and high cost performance. It is suitable for application scenarios with long distance, low power consumption, and small data volume. It supports more than 30 node devices (depending on upload interval, data payload, etc.).
User Manual / Datasheet / Example Codes Etc.
Features
- Meshtactic works out of the box: Pre-flashed with Meshtastic firmware, it is ready to work once powered on.
- Outstanding RF performance: Supports LoRa(862-930MHz) 2.4GHz Wi-Fi and BLE 5.0 dual wireless communication, support 2~5km(LoRa) and 100m+(Wi-Fi/BLE) remote communication when connected with U.FL antenna.
- Thumb-sized Compact Design: 21 x 18mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices.
- Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported.
- Elaborate Power Design: Includes a Type-C USB interface and lithium battery charge management.
Specifications
- ESP32S3: ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
- LoRa: Based on Semtech SX1262, supports 862-930MHz,
- BLE: Bluetooth 5.0, Bluetooth mesh
- Wi-Fi: Complete 2.4GHz Wi-Fi subsystem

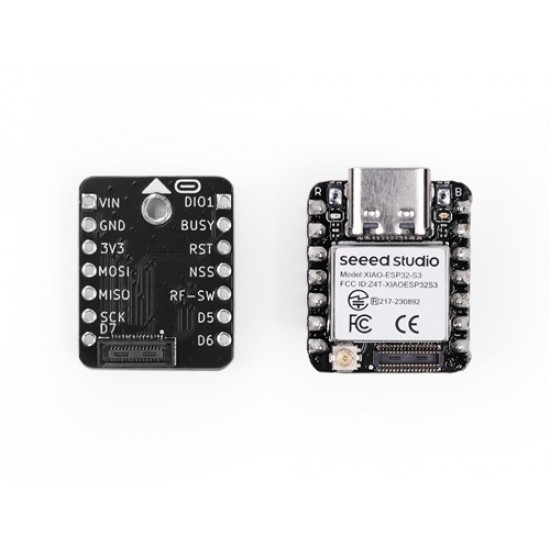

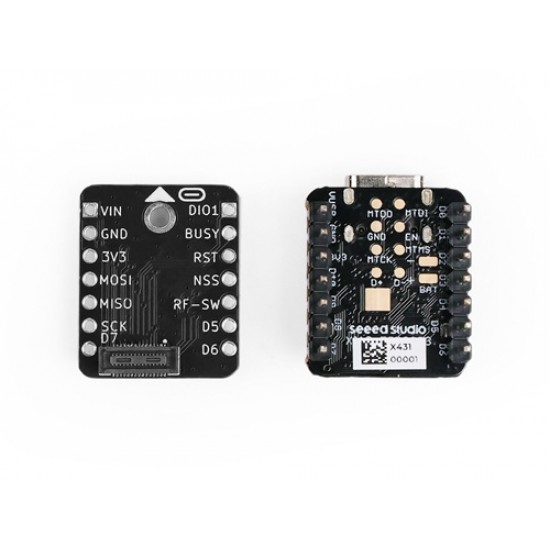

- Interface
- ESP32S3:
- 1x UART, 1x IIC, 1x IIS, 1x SPI(connect to SX1262),11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button
- Wio-SX1262:
- 1xUser button, 1xSPI(connect to ESP32S3)
- Power
- Input voltage (Type-C): 5V
- Input voltage (BAT): 4.2V
- Charging battery current: 100mA
- Working Temperature: -40°C ~ 65°C

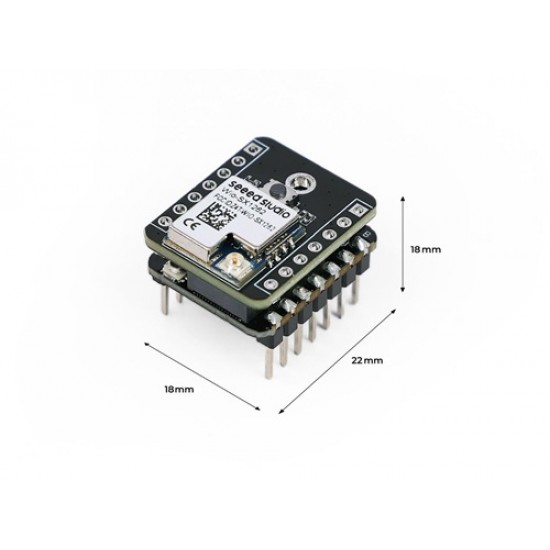

- Dimensions: 21 x 17.8mm
Applications
- Meshtastic Node & Router: An ultra-small node that can serve as a portable device or as a fixed router to expand the Meshtastic network.
- LoRa/LoRaWAN Sensor: A mini LoRaWAN sensor, ideal for beginners exploring LoRa/LoRaWAN. It can be used with the XIAO extension board and Grove sensors for rapid prototyping.
- LoRaWAN Single Channel Gateway: The most cost-effective single-channel LoRaWAN gateway for connecting multiple LoRaWAN sensors and transmitting data to LoRaWAN Network Servers such as The Things Network and Chirpstack.

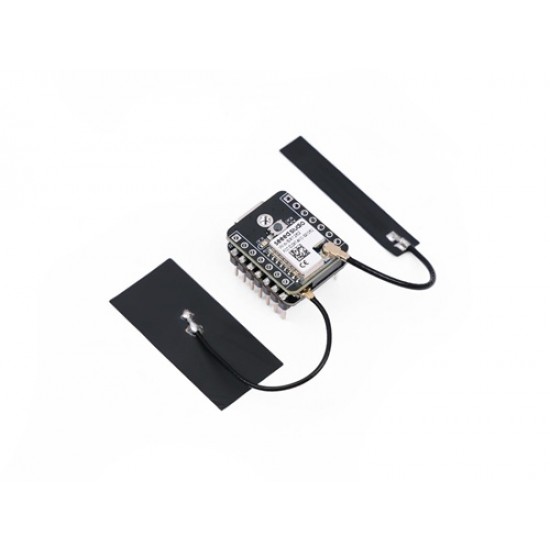

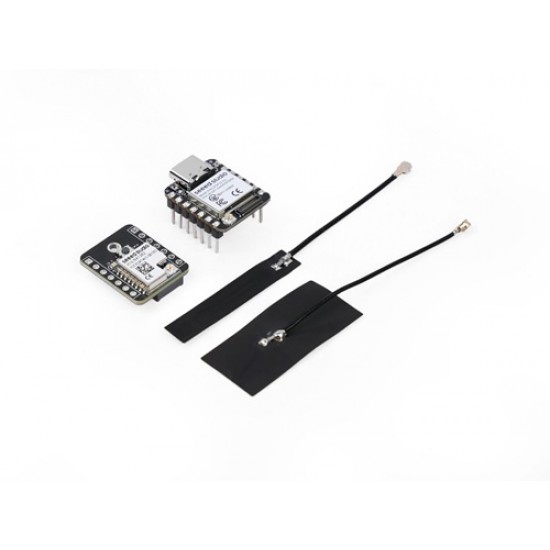

Package Includes
- X1 XIAO ESP32S3
- x1 Wio-SX1262 extension board
- x1 Wi-Fi antenna
- x1 LoRa antenna
