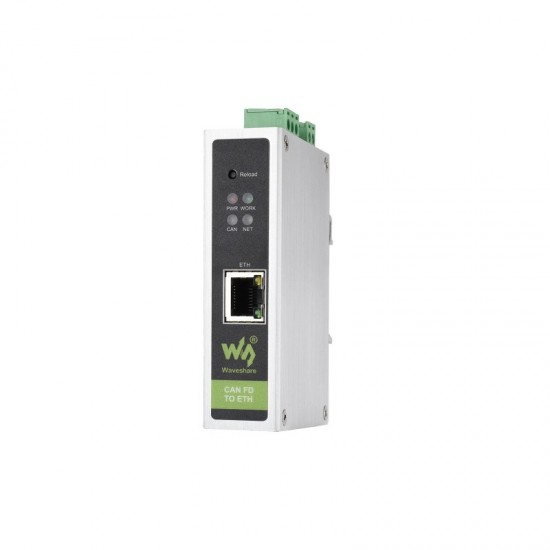

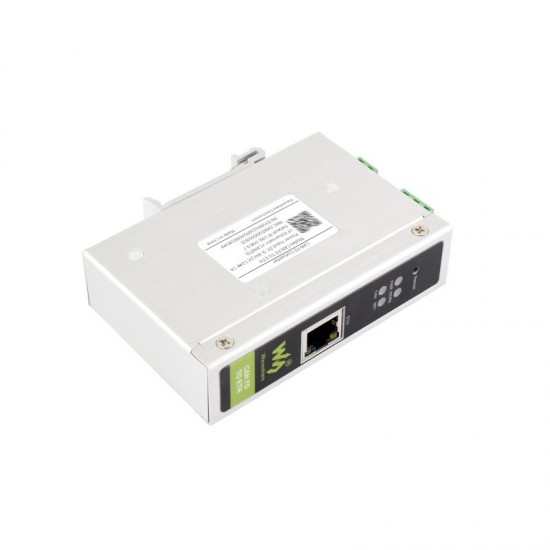

The CAN FD TO ETH is a DIN-rail CAN FD to ETH bidirectional converter, featuring high-speed, low-latency, stable performance, ease of use, and cost-effectiveness. It supports five data conversion modes: transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion. It enables interconnection between CAN and Network port devices, compatible with CAN FD and CAN 2.0A/2.0B protocols.

It features industrial-grade design, supports -40°C ~ 85°C stable working, 9V ~ 36V wide power input, 5Kbps~1Mbps CAN FD arbitration domain baud rate, and 100Kbps~5Mbps CAN FD data domain baud rate.

It supports parameter configuration via host computer, built-in 120Ω terminal resistors (switchable via DIP switches), supports DIN-rail mounting, easy to configure and install.

User Manual / Datasheet / Example Codes Etc.

Specifications

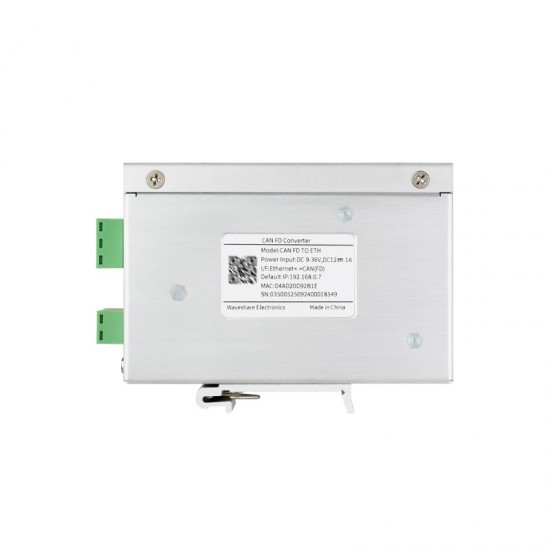

• Basic Specs
• Working voltage: DC 9V ~ 36V
• Size: 110 × 27 × 76.1 (mm)

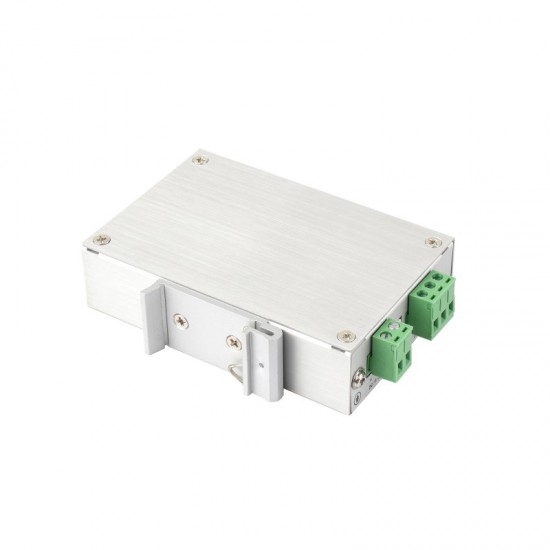

• Installation: DIN-rail installation
• Reload button: Long press to restore factory settings
• Indicator light: POWER, WORK, NET and CAN

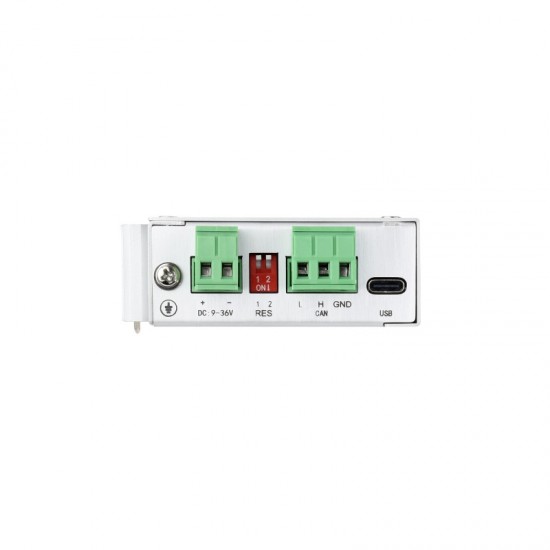

• Interface Specs

• AN port specification: 1-ch CAN port, supports CAN FD, compatible with CAN 2.0A/2.0B
• CAN port baud rate: Arbitration domain baud rate: 5Kbps ~ 1Mbps Data domain baud rate: 100Kbps ~ 5Mbps
• Terminal resistor: Built-in 2 × 120Ω terminal resistors
• Switching either: DIP switch to ON connects one 120 Ω resistor in parallel Switching both to ON connects two 120Ω resistors in parallel
• Network port specification: RJ45, 10/100Mbps, cross-connection adaptive

Work Environment

• Working temperature: -40℃ ～ 85℃
• Storage temperature: -40℃ ～ 105℃
• Working humidity: 5% ～ 95% RH (no condensation)
• Storage humidity: 5% ～ 95% RH (no condensation)

• Software Function

• Networking protocol: TCP server, TCP client, UDP server, and UDP client
• Modbus gateway: CAN FD to Modbus TCP (Master/Slave)
• Send the message: Supports up to 64 transmit messages
• Receive messages: Supports up to 64 receiving messages
• Protocol conversion: Transparent conversion, transparent conversion with ID, standard protocol conversion, Modbus protocol conversion, and custom protocol conversion
• CAN ID: Supports standard frame and extended frame
• Frame ID0 filtering: Supports only standard frames, only extended frames, and custom input frame ID (up to 32 groups)
• Pack frame time: Supports customizing the number of frames and the time of frame packing
• Change direction: Supports bidirectional conversion, only Network port to CAN, and only CAN to Network port;
• Firmware upgrade: Supports the host computer for firmware upgrade
• Parameter configuration: AT instruction and host computer software configuration
• Other features: Supports heartbeat packets; register packets; normal, loopback, and only listen modes

• Protection Parameters
• ESD Protection: Air discharge: 8 KV, Contact discharge: 6 KV
• Eft/Burst: Power circuit: 2KV; Network port & CAN port circuit: 1KV
• Surge Immunity Test: Power circuit: 1KV differential mode, 2KV common mode;
• CAN port circuit: 2kV common mode; Network port circuit: 2kV

Package Includes

• CAN FD TO ETH x1
• Power plug adapter x1
• Screwdriver x1

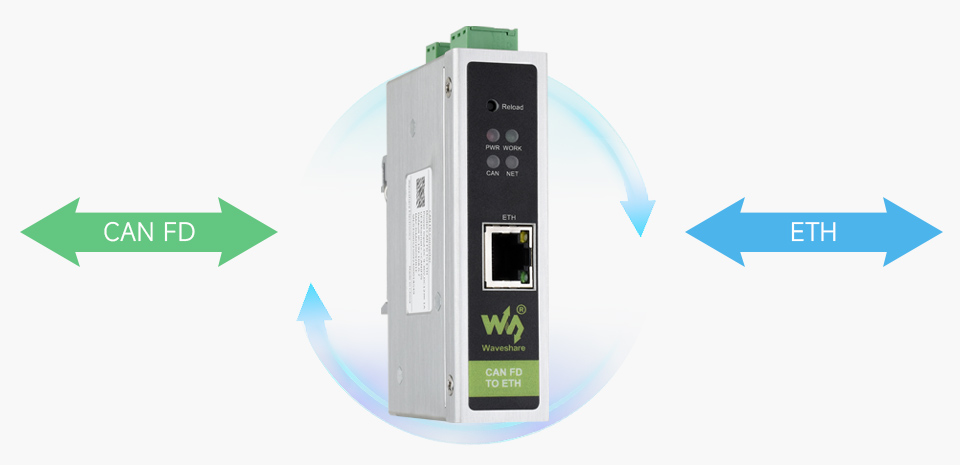

Basic Function

supports CAN FD To ETH Bidirectional Data Communication

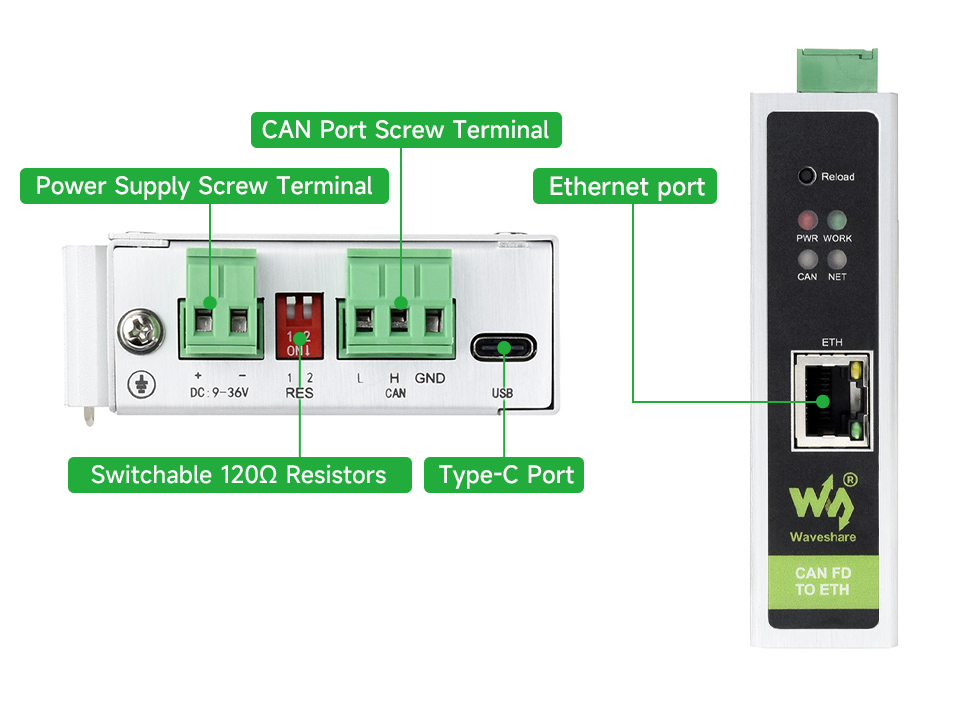

Interface introduction

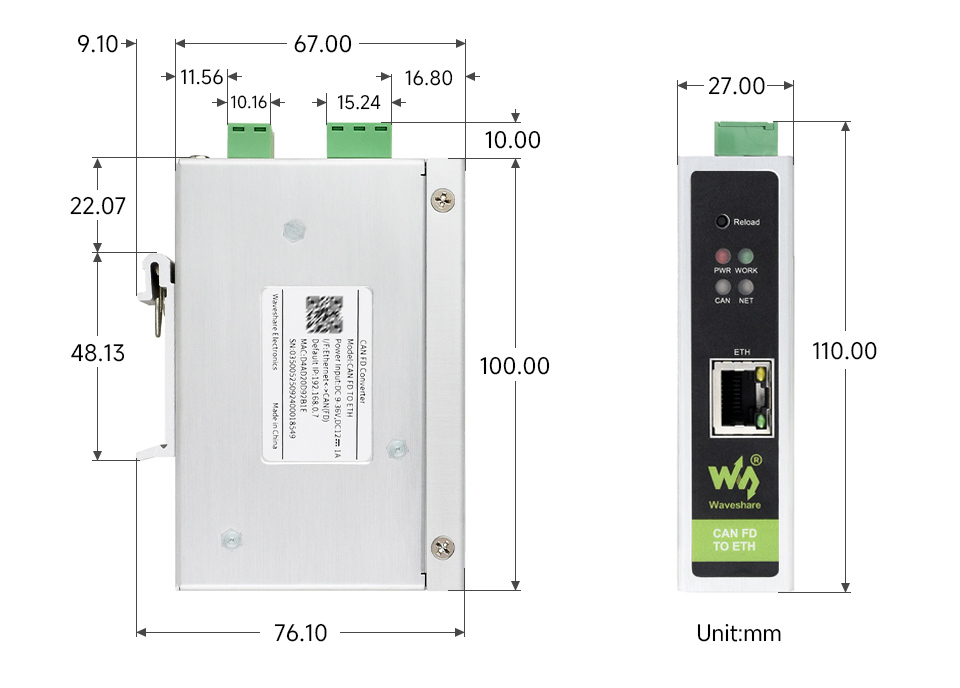

Outline Dimensions
