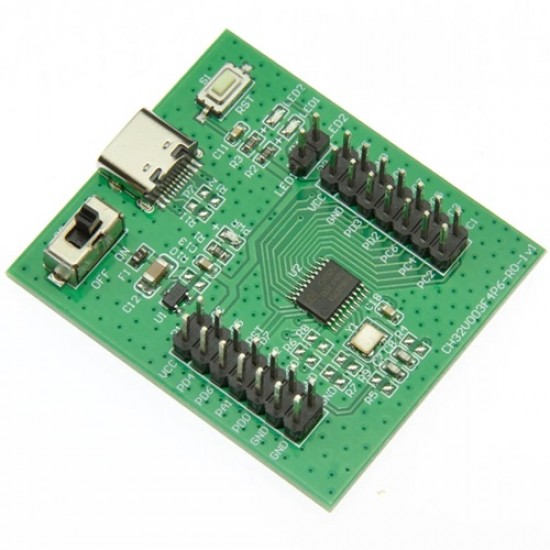

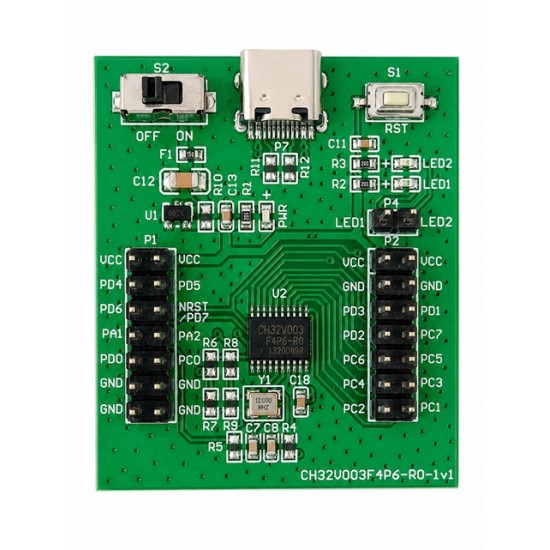

WCH CH32V003F4P6-EVT-R0-1v1 32-bit RISC-V MCU Microcontroller Development Board with USB Type-C
The WCH CH32V003F4P6-EVT-R0-1v1 Development Board is a compact and cost-effective evaluation platform designed for developing and testing applications based on the CH32V003F4P6 32-bit RISC-V microcontroller. Powered by WCH's QingKe V2A RISC-V core running at up to 48MHz, the board combines 16KB Flash, 2KB SRAM, and a rich set of integrated peripherals, making it ideal for embedded systems, IoT devices, automation projects, and educational learning.

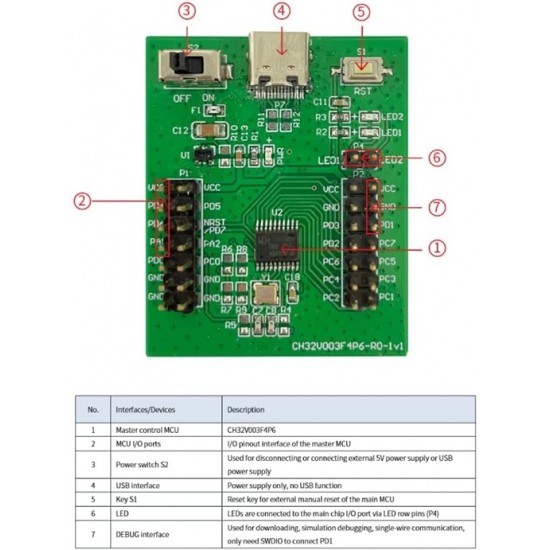

Featuring a USB Type-C connector for convenient power input, onboard user LED, reset circuitry, crystal oscillator, and accessible GPIO headers, the board provides a straightforward development experience. It supports programming and debugging through the WCH single-wire debug interface (SWIO) using compatible WCH-Link programmers, making firmware development quick and efficient. With support for UART, SPI, I2C, ADC, timers, DMA, and operational amplifier peripherals, the CH32V003F4P6-EVT-R0-1v1 is an excellent entry-level RISC-V development board for makers, students, and professional embedded developers.
Features
- Based on the WCH CH32V003F4P6 32-bit RISC-V microcontroller
- QingKe V2A RISC-V Core operating up to 48MHz
- 16KB Flash memory and 2KB SRAM
- Convenient USB Type-C connector for power supply
- Onboard user LED and reset button for easy testing
- Supports SWIO single-wire debugging with WCH-Link programmers
- Multiple communication interfaces including UART, SPI, and I²C
- Integrated 12-bit ADC, timers, DMA controller, watchdog, and operational amplifier
- Exposed GPIO headers for easy prototyping and peripheral expansion
- Compact form factor suitable for embedded development and education
- Compatible with MounRiver Studio and WCH development tools
- Ideal for IoT, industrial control, robotics, automation, and RISC-V learning
Specifications
- Microcontroller: WCH CH32V003F4P6
- CPU Core: 32-bit QingKe V2A RISC-V
- Maximum Clock Frequency: 48MHz
- Flash Memory: 16KB
- SRAM: 2KB
- USB Interface: USB Type-C (Power)
- Debug Interface: SWIO (Single-Wire Debug)
- Communication Interfaces: UART, SPI, I²C
- Analog Features: 12-bit ADC, Operational Amplifier
- Timers: Multiple 16-bit Timers
- DMA: Supported
- GPIO: Multiple Programmable I/O Pins
- Operating Voltage: 3.3V
- Development Support: MounRiver Studio, WCH SDK
- Applications: Embedded Systems, IoT, Robotics, Automation, Education
Package Includes
- 1x WCH CH32V003F4P6-EVT-R0-1v1 32-bit RISC-V MCU Microcontroller Development Board with USB Type-C
