Mini Dual Gigabit Ethernet Base Board / Mini-Computer Kit Designed for Raspberry Pi Compute Module 5 (NOT Included), For All Variants Of CM5
This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹3,579.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 30
B2B GST Credit Available
Price in reward points: 3033
- Stock: 0 in Stock
- SKU: 31074
- Delivery Time
- Bulk & B2B RFQ
As a MINI board for Raspberry Pi Compute Module 5, CM5-DUAL-ETH-MINI is a baseboard that can be used with the Raspberry Pi Compute Module 5, supporting dual network port supply and Type-C 5V 5A DC power supply. It comes with 1 USB3.2 Gen1 port, making it convenient for users.
Specifications
| CM5 socket | suitable for all variants of Compute Module 5 |
|---|---|

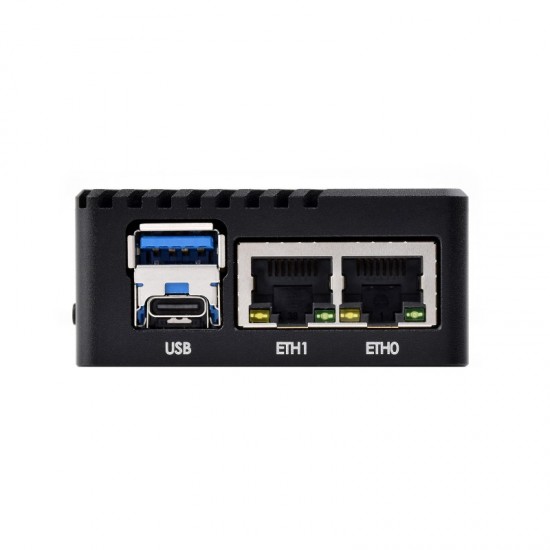

| Networking | Dual Gigabit Ethernet RJ45 connectors |
| USB | USB 3.0 port |

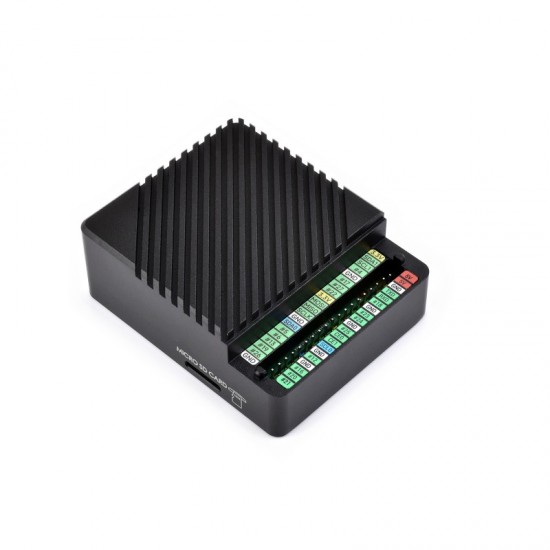

| PIN HEADER | Raspberry Pi 40PIN GPIO header |

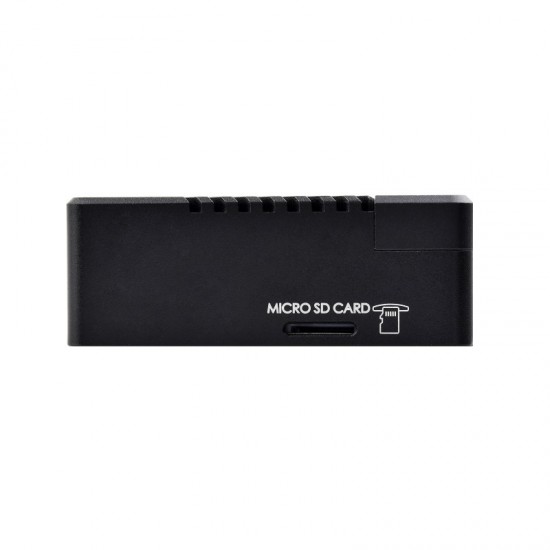

| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan header | 4-wire SH1.0 port, allows speed adjustment and measurement, 5V |
| Power input | 5V, Type-C interface |
| Dimensions | the base board: 55.0 × 68.0mm |
| with metal case: 61.0 × 75.0 × 27.5mm |
Resources
User Manual / Datasheet / Example Codes Etc.

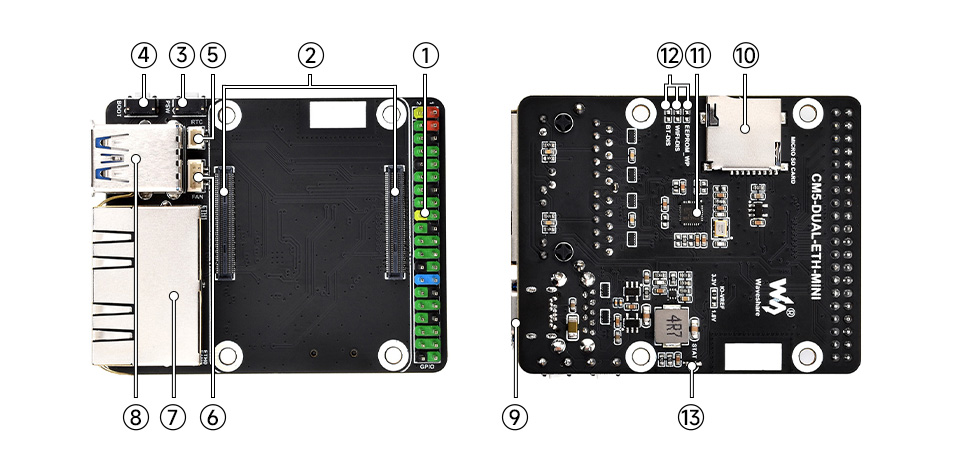

Onboard Peripherals
- 40PIN GPIO header
for connecting sorts of HAT - CM5 socket
suitable for all variants of Compute Module 5 - PSW button
- BOOT button
- RTC battery header
for connecting rechargeable RTC Battery - FAN header
for connecting cooling fan, allows speed adjustment and measurement - RJ45 Gigabit Ethernet ports
Dual RJ45 Gigabit Ethernet ports, 10/100/1000M compatible
ETHERNET 0: CM5 original network port
ETHERNET 1: PCIe extended network port
- USB3.2 Gen1 Type-A port
for connecting sorts of USB devices - Type-C port
5V power supply, or used for eMMC programming - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - RTL8111H
Gigabit NIC chip - SYSTEM switch
EEPROM_WP: Prevent EEPROM from being overwritten
WiFi_DIS: WiFi disabled, only for CM5 versions with wireless
BT_DIS: Bluetooth disabled, only for CM5 versions with wireless - Indicators
Red light: indicating the power supply status of Raspberry Pi
Green light: indicating the working status of Raspberry Pi

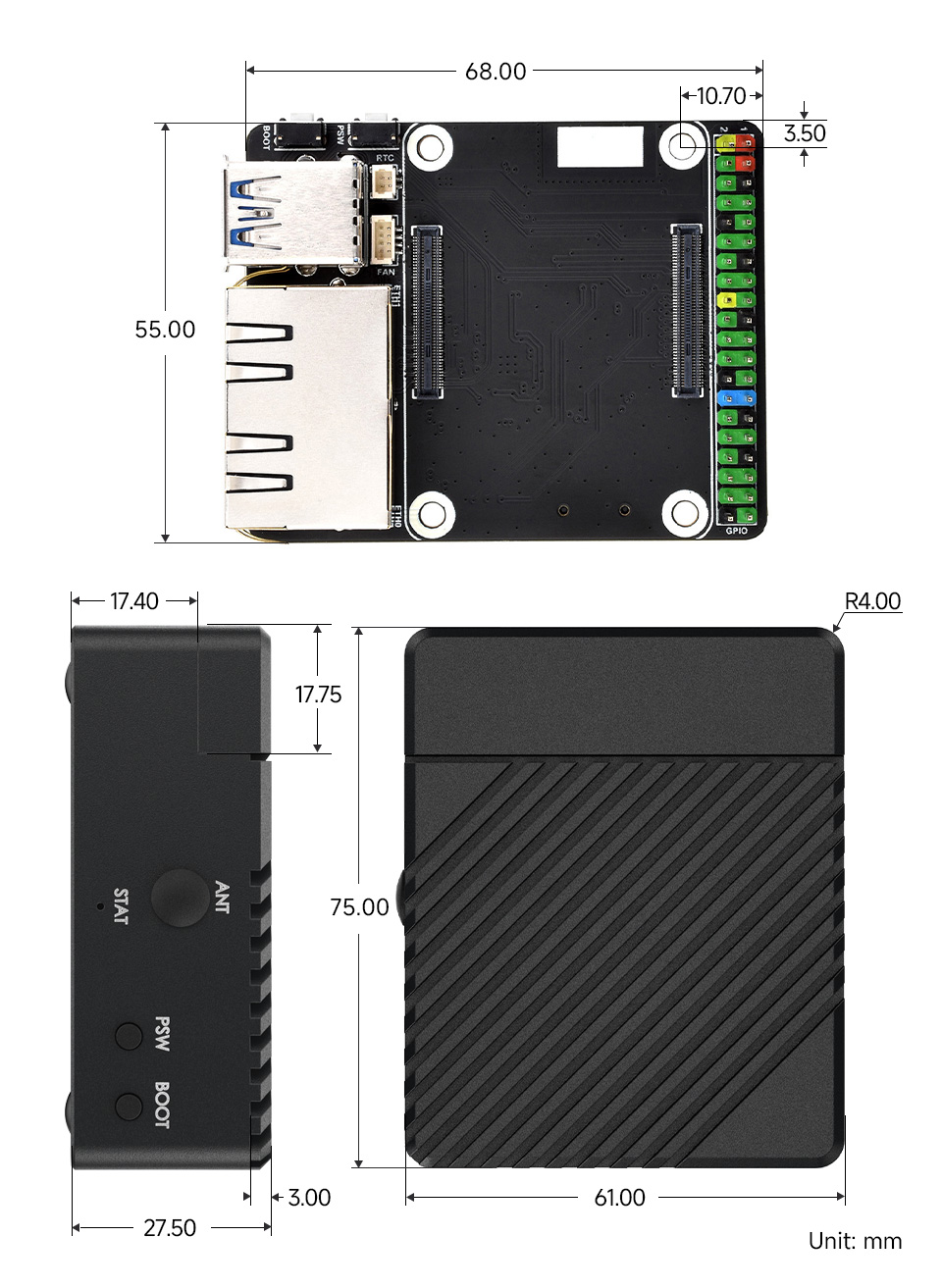

Dimensions
