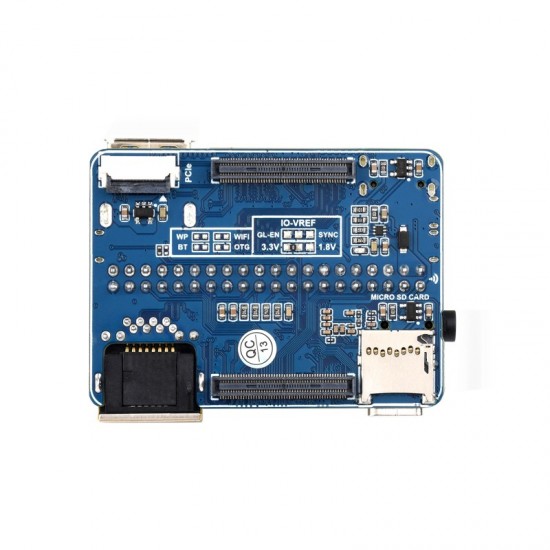

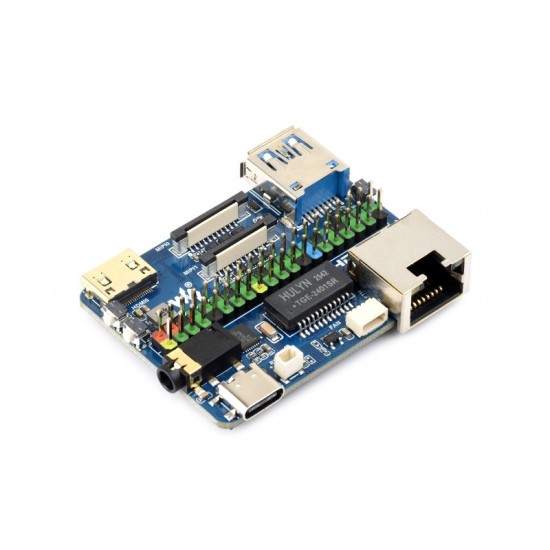

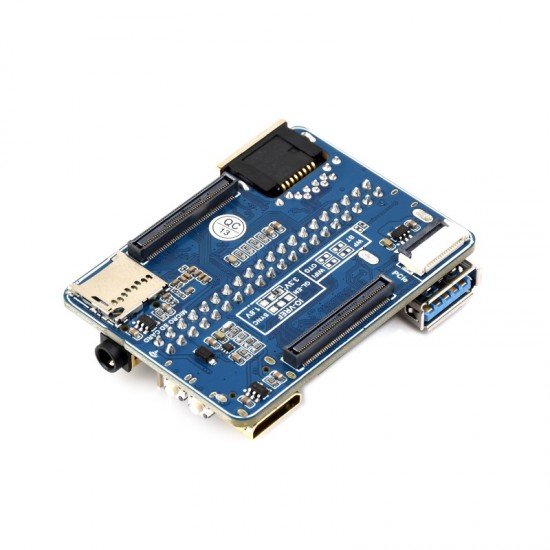

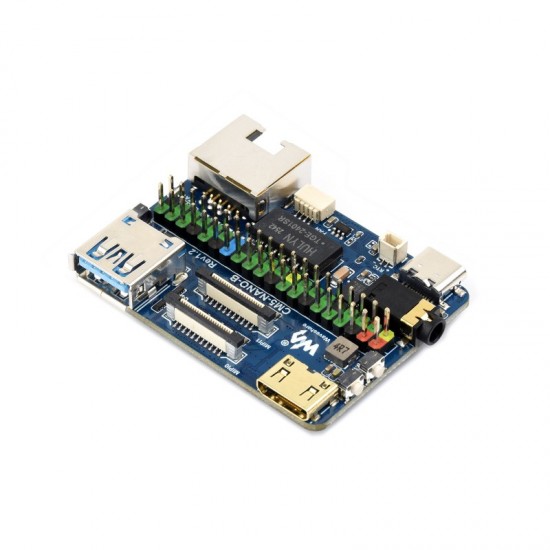

Waveshare CM5-NANO-B Mini Expansion Board For Raspberry Pi Compute Module 5, Same Size As The CM5, Supports 4K HDMI, USB 3.2, Gigabit Ethernet Port, Dual MIPI Interfaces [Solder Version]

WaveShare Electronics

Waveshare CM5-NANO-B Mini Expansion Board For Raspberry Pi Compute Module 5, Same Size As The CM5, Supports 4K HDMI, USB 3.2, Gigabit Ethernet Port, Dual MIPI Interfaces [Solder Version]

Raspberry Pi Store

Based on 0 reviews. - Write a review

₹1,720.00

₹1,457.63 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 15
B2B GST Credit Available

Price in reward points: 1458

Stock: 0 in Stock
SKU: 33760
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Waveshare CM5-NANO-B Mini Expansion Board For Raspberry Pi Compute Module 5, Same Size As The CM5, Supports 4K HDMI, USB 3.2, Gigabit Ethernet Port, Dual MIPI Interfaces [Solder Version]

Waveshare CM5-NANO-B Mini Expansion Board for Raspberry Pi Compute Module 5 is a compact, high-performance development and evaluation board designed specifically for the Raspberry Pi Compute Module 5. Matching the same compact footprint as the CM5 itself, this mini expansion board provides essential interfaces for prototyping, embedded system development, industrial control applications, and compact AI edge computing solutions.

Despite its ultra-small form factor, the CM5-NANO-B offers powerful connectivity options including 4K HDMI output, USB 3.2 high-speed interface, Gigabit Ethernet, and dual MIPI CSI/DSI interfaces for camera and display integration. It is ideal for developers who need a lightweight, space-saving platform without compromising on performance or expandability.

User Manual / Datasheet / Example Codes Etc.

Specifications

CM5 socket: Suitable for all variants of Compute Module 5
Networking: Gigabit Ethernet RJ45 connector
Connector: Raspberry Pi 40PIN GPIO interface × 1
USB: USB 3.2 Gen1 Type A port × 1
MIPI: MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
Video: Mini HDMI port × 1, supports 4K output
Audio: USB audio 3.5mm jack
Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
Power input: DC 5V 5A
PCIe: 16PIN PCIe connector (PCIe Gen2/3 x1)
Dimensions: 55 × 41mm

Package Includes

1x CM5-NANO-B with pre-soldered headers

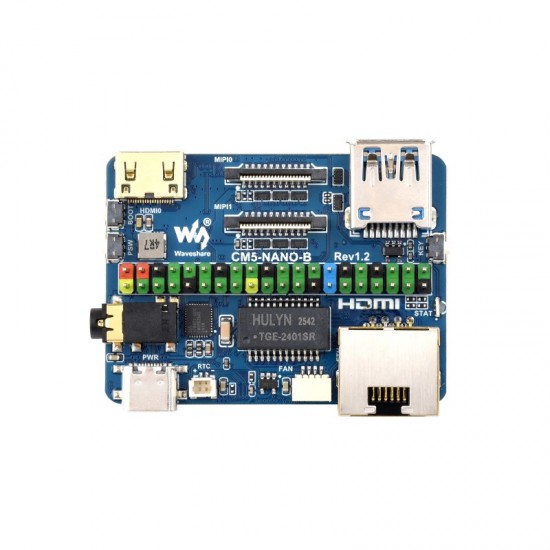

What's On Board
