Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 5

Mini Dual Gigabit Ethernet Base Board Designed for Raspberry Pi Compute Module 5

The Mini Dual Gigabit Ethernet Base Board is a compact and high-performance carrier board designed specifically for the Raspberry Pi Compute Module 5 (CM5). It features two independent Gigabit Ethernet ports, making it an ideal solution for networking projects such as routers, firewalls, and IoT gateways. Despite its small footprint, the board offers rich connectivity options including USB, GPIO, and power interfaces, making it perfect for embedded and industrial applications. Built with reliability and flexibility in mind, this baseboard enables developers to take full advantage of the CM5’s processing power in a variety of advanced networking and edge computing scenarios.

User Manual / Datasheet / Example Codes Etc.

Specifications

• CM5 socket: suitable for all variants of Compute Module 5
• Networking: Dual Gigabit Ethernet RJ45 connectors
• USB: USB 3.0 port
• PIN HEADER: Raspberry Pi 40PIN GPIO header
• Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
• Fan header: 4-wire SH1.0 port, allows speed adjustment and measurement, 5V
• Power input: 5V, Type-C interface
• Dimensions: the base board: 55.0 × 68.0mm

Package Includes

• CM5-DUAL-ETH-MINI x1

Connecting with Compute Module 5

standard CM5 socket and 40PIN GPIO header

suitable for Compute Module 5 Lite/eMMC series module

for reference only, CM5 is NOT included.

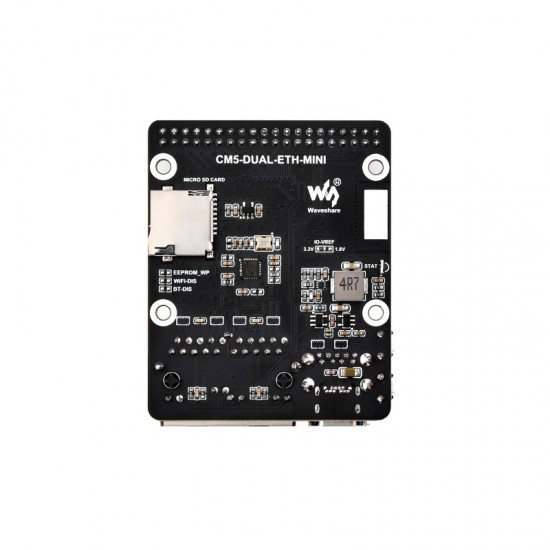

What's On Board

Dimensions
