Waveshare CM5 To Pi 5 Adapter Board For Raspberry Pi 5, Alternative Solution for Raspberry Pi 5, Onboard Audio Header, Supports Connecting To Microphone

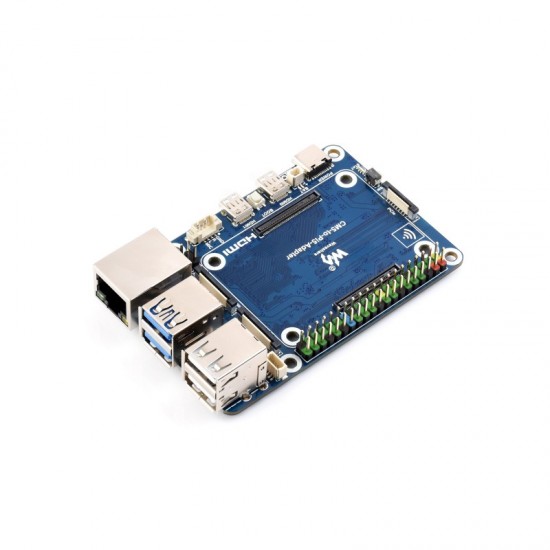

As the IO board of the Raspberry Pi Compute Module 5, CM5-to-Pi5-Adapter is a baseboard that can be used with the Raspberry Pi Compute Module 5. With powerful features are integrated into a compact design, it is only the size of a bank card. It comes with two USB3.2 Gen1 ports and two USB2.0 ports onboard, making it convenient for users.


Note: The CM5 Module is not included in the package. It needs to be purchased separately.



User Manual / Datasheet / Example Codes Etc.


Specifications

  • CM5 socket: Suitable for all variants of Compute Module 5
  • Networking: Gigabit Ethernet RJ45 port
  • Connector: 16PIN PCIe (PCIe Gen2/3 × 1) & Raspberry Pi 40PIN GPIO header × 1
  • USB: USB 3.2 Gen1 × 2; USB2.0 × 2
  • MIPI: MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
  • Video: HDMI port × 2, supports dual 4K outputs
  • Audio: Onboard audio header, comes with an audio adapter for connecting 3.5mm headphone / microphone, enabling audio input and output
  • Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
  • Fan Header: 5V, 4PIN JST-SH PWM connector
  • Power input: DC 5V 5A
  • Dimensions: 85 × 56 (mm)


Package Includes

  • CM5-to-Pi5-Adapter × 1
  • Audio-Adapter × 1
  • MX1.25 4PIN dual-plug cable ~200mm × 1
  • Screws pack × 1


Onboard USB Audio Decoder Chip

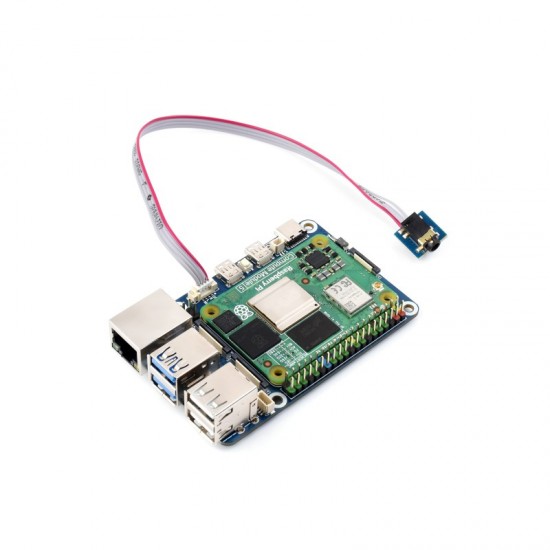

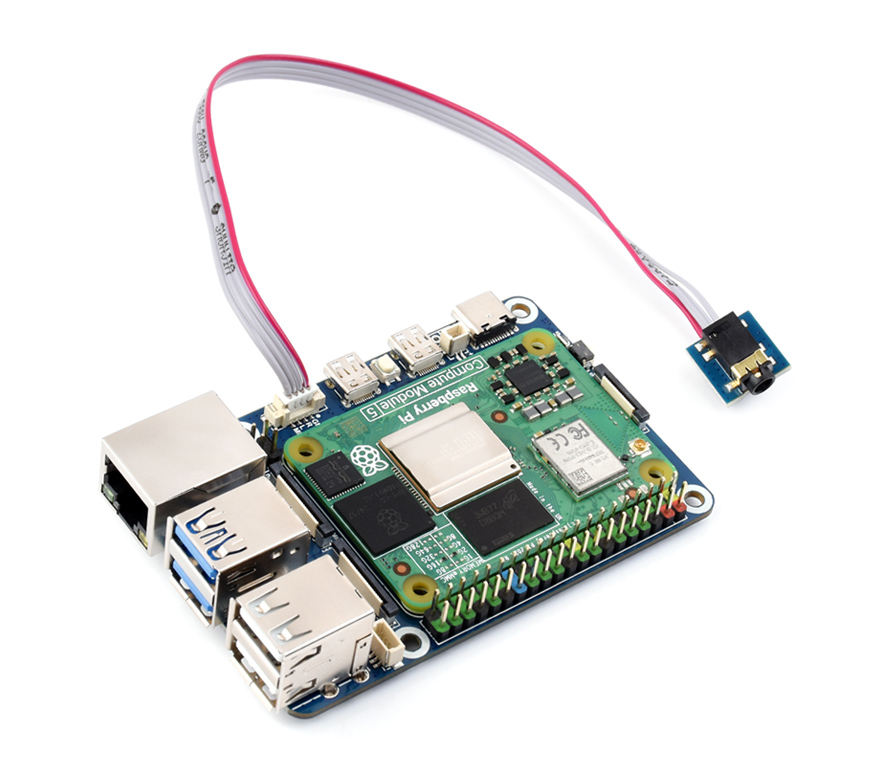

Compared to the Raspberry Pi 5, the CM5-to-Pi5-Adapter adds an audio header, supports microphone input

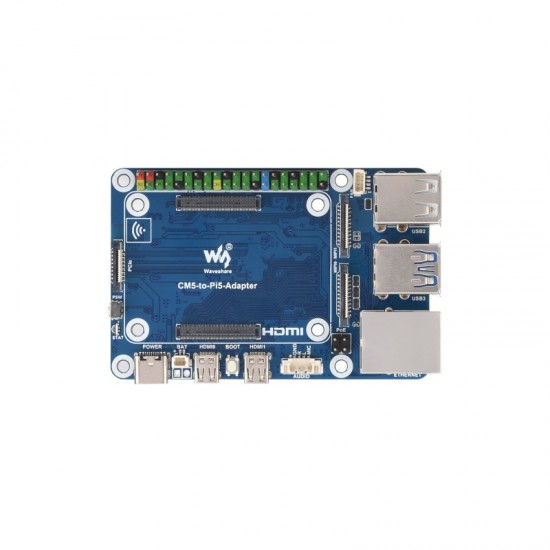

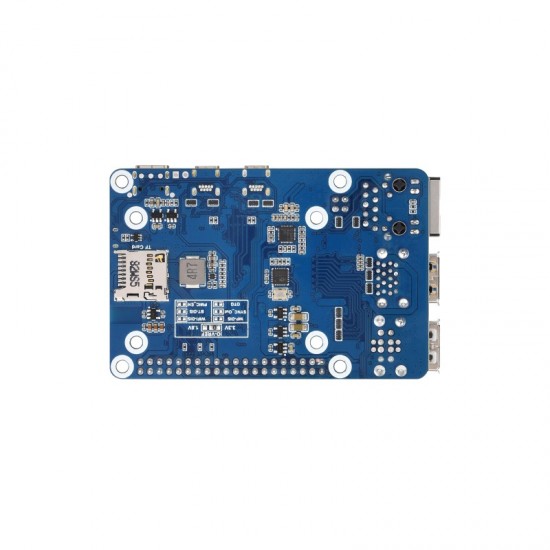

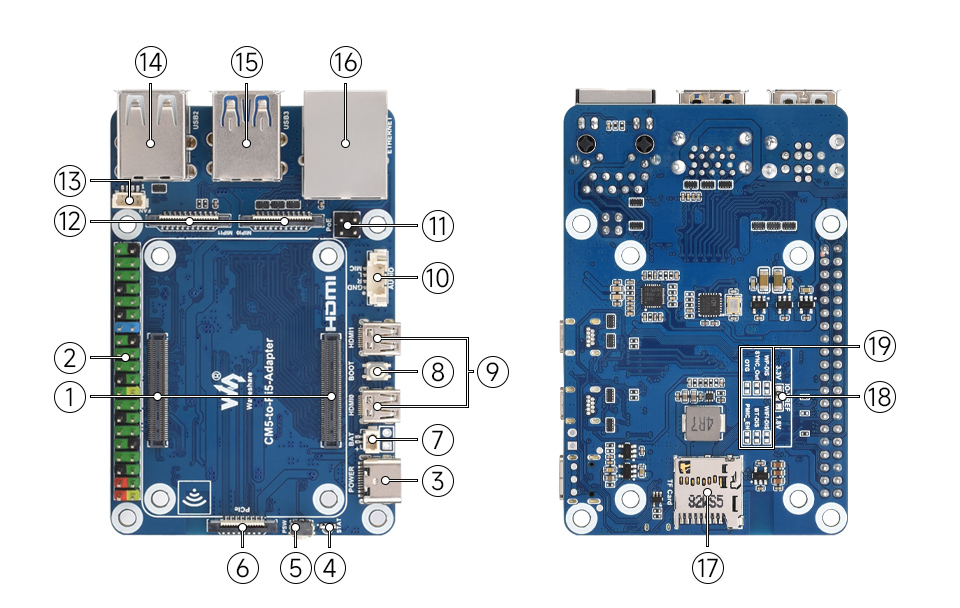

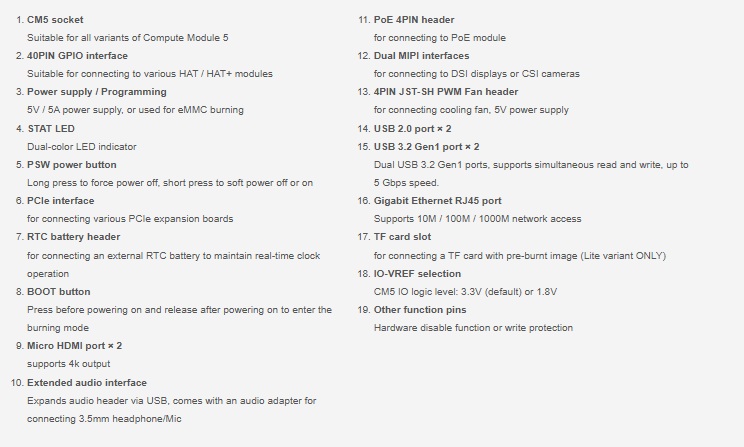

What's On Board

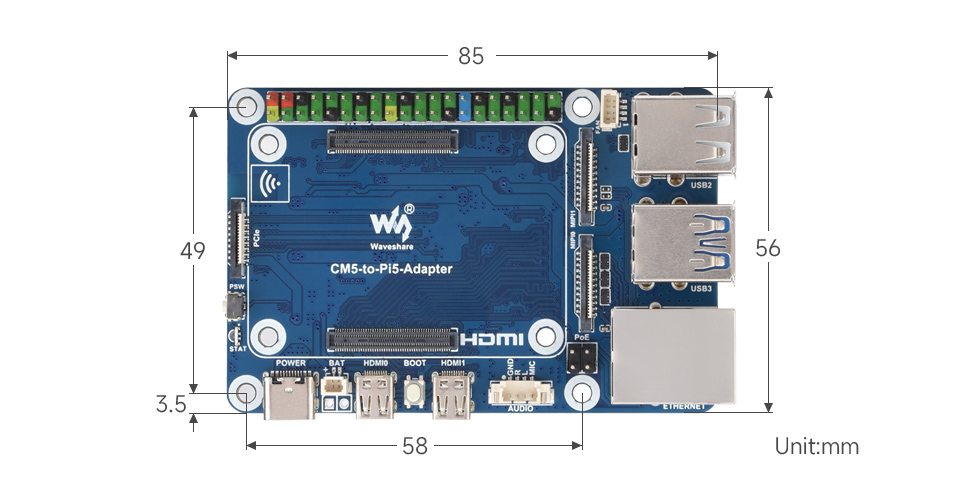

Dimensions
