Cobra Flex Universal Modular Drive-by-Wire Chassis, 4 Wheels 4WD Compact Differential Chassis, Hub Motors, Multi-Host Compatible, Fully Open-Source Code

This product qualifies for Free Surface Shipping !

All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
Based on 0 reviews. - Write a review
₹​28,790.00
₹​24,398.31 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 244
B2B GST Credit Available
Price in reward points: 24398
Buy Now NOTIFY WHEN AVAILABLE
Plan to Buy Later ? Add to Wish List

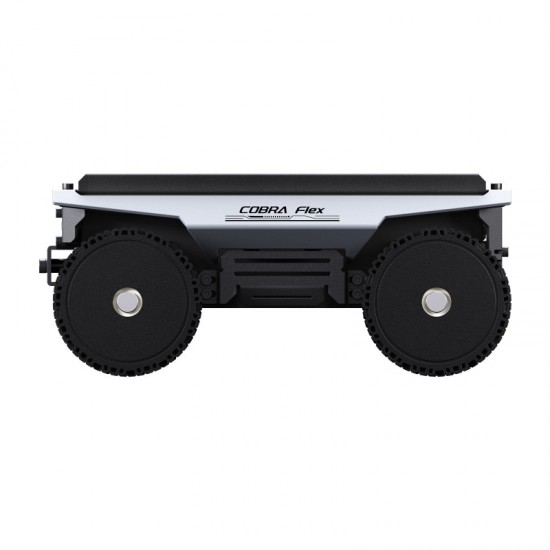

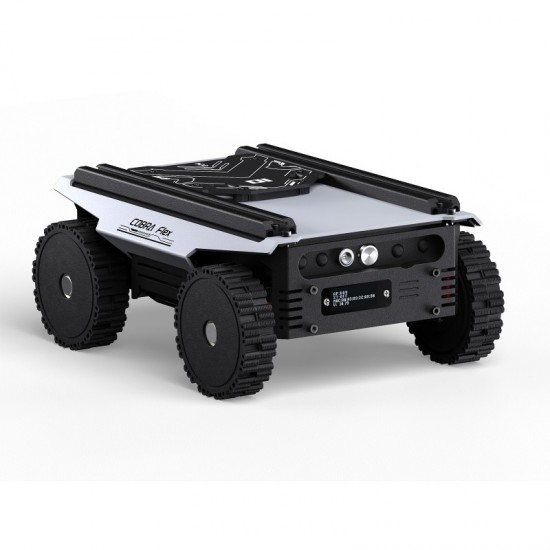

The Cobra Flex is a universal modular Drive-by-Wire chassis with strong off-road crossing ability and shock-absorbing performance, open source all code for secondary development. It supports multiple host computers (Raspberry Pi, Jetson Orin Nano, etc.), the host computer can communicate with the chassis through USB or serial port. The four wheels are driven by 4x bus hub motors with built-in FOC control circuit, which provide strong power and smooth running speed.

Built in Lithium battery set with 6x 18650 Lithium batteries, which provides uninterruptible power for the robot and supports charging and power output at the same time. Built in multi-functional robot driver board based on ESP32, adopts strong and weak electric isolation design and supports connecting bus servos, with onboard Wi-Fi (only for short-distance debugging) and Bluetooth. Adopts compact four-wheel independent suspension with CNC process, can easily meet the needs of heavy loads, shock absorption, and off-road. Also, it comes with 2 x 1020 European standard profile rails, providing more possibilities for secondary development.


Specifications

Dimensions235.25 × 173 × 101.24mm
Chassis weight2375±5g
Steering modeDifferential steering
Number of driving wheels4
Suspension4-wheel independent suspension
Chassis height34.24mm
Motor no-load speed180rpm@12V (voltage-dependent)
Wheelbase154mm
Drive wheel diameter74.5mm
Battery set5000mAh 18650 Lithium battery × 6
Charging portDC 5.5*2.1 jack
External power supplyPowered directly by the battery set

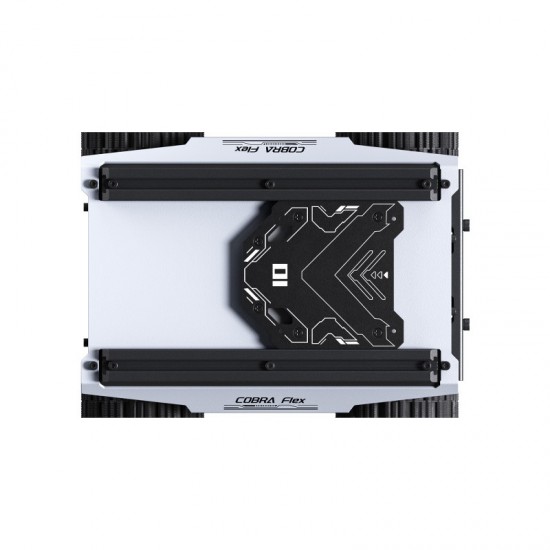

Extension rails110mm pitch, 1020 aluminum profile
Maximum operating speed0.53m/s@12V (voltage-dependent)
Vertical load12KG
Charging time3h
Full-power runtime10h
Maximum climbing angle30°
Minimum turning radius0m (In-situ rotation)
Chassis - host communication protocolUSB / UART / HTTP
Chassis - hub motor communication protocolLIN bus
Chassis - bus servo communication protocolTTL / RS485
Protection levelIP32
Operating temperature0°C~40°C

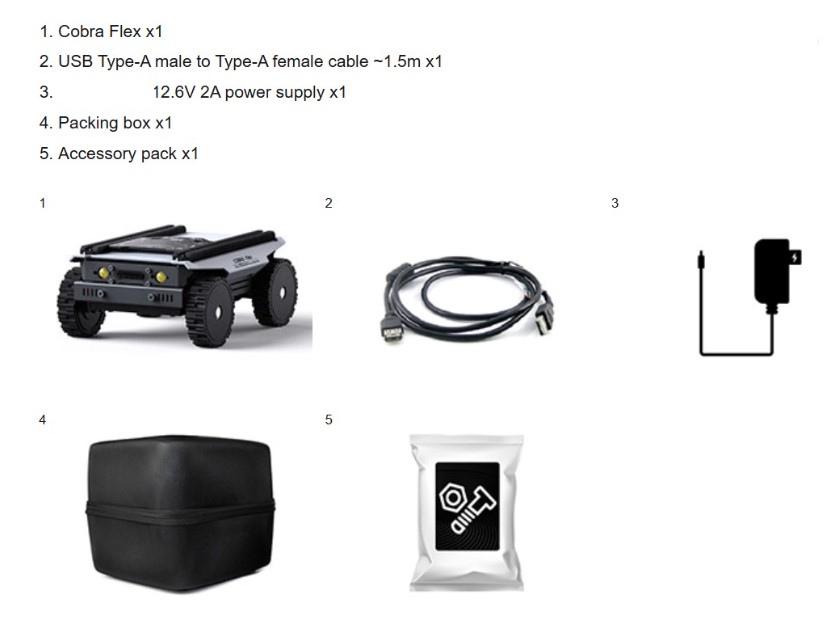

Package Contents



Resources

User Manual / Datasheet / Example Codes Etc.

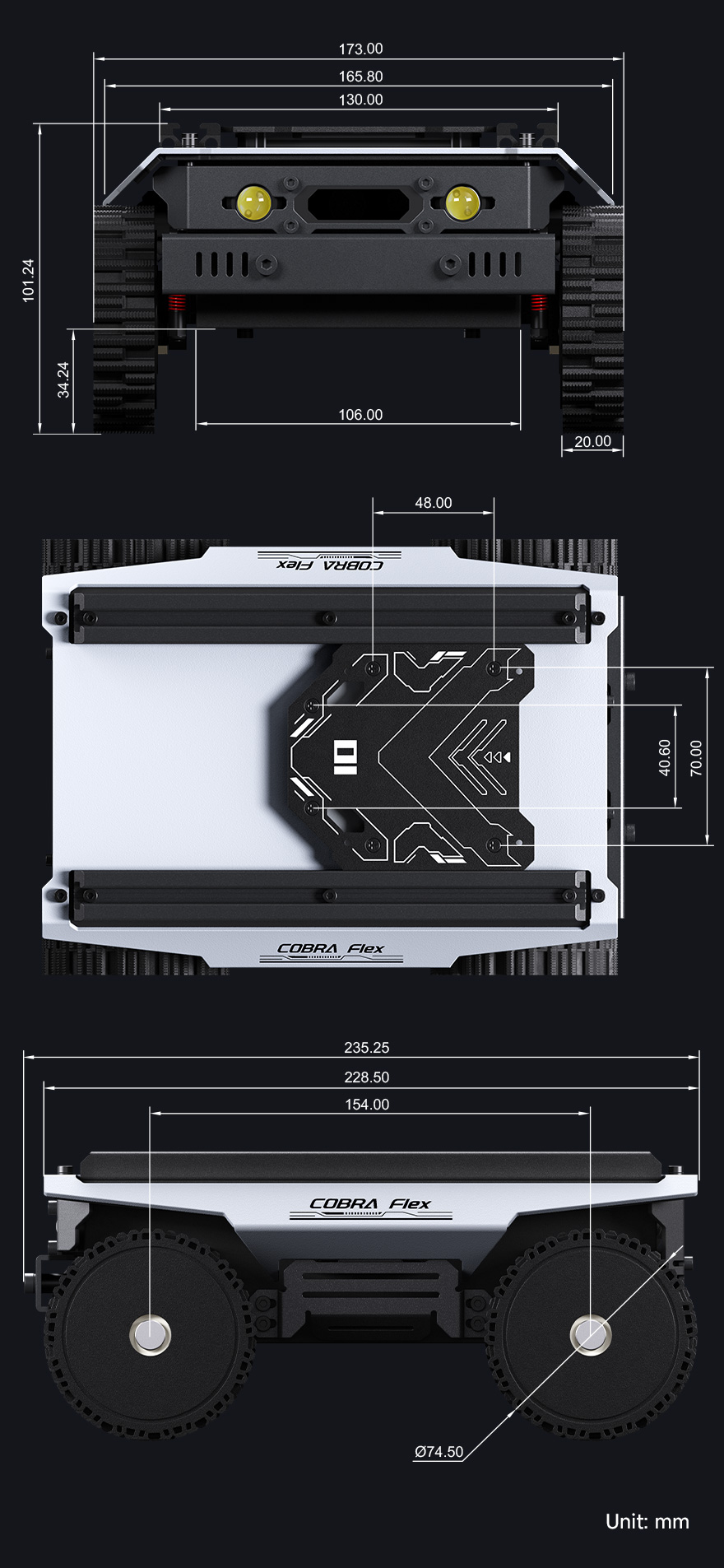

Dimensions
