Name: Official Raspberry Pi Radio Module 2
Brand: Raspberry Pi
SKU: 07327
Price: 498.00 INR
Availability: OutOfStock

Raspberry Pi

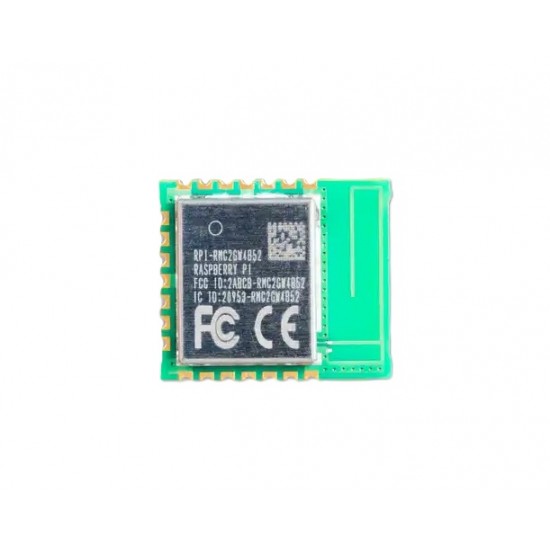

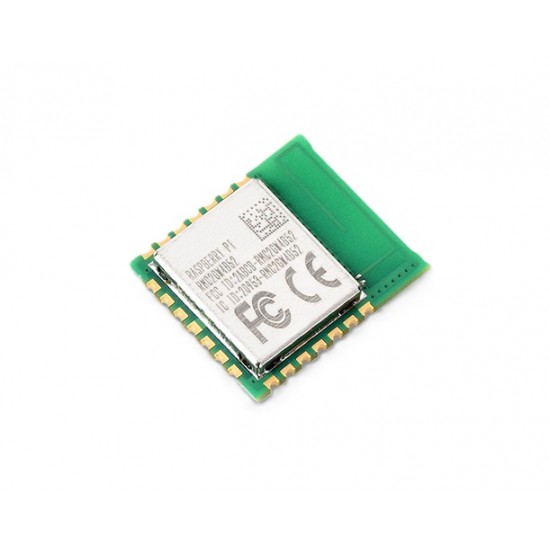

Official Raspberry Pi Radio Module 2

Based on 0 reviews. - Write a review

₹498.00

₹422.03 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 4
B2B GST Credit Available

Price in reward points: 422

Stock: 0 in Stock
SKU: 07327
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

Official Raspberry Pi Radio Module 2 - Single-band 2.4GHz Wi-Fi 4 (802.11n) And Bluetooth 5.2 Wireless Module

Raspberry Pi Radio Module 2 is a radio module designed for use with Raspberry Pi’s low-cost, high-performance microcontrollers. It uses Infineon’s CYW43439, a single-chip combo device featuring 1 × 1 single-band 2.4GHz Wi-Fi® 4 (802.11n) and Bluetooth® 5.2 for low-cost applications. It is a small form-factor solution with minimal external components for reduced mass production costs.

The radio module has castellated edge pads to allow for a variety of mounting options, and features an on-board single 2.4GHz antenna for ease of design. It has full modular certification, making integration straightforward with regard to regulatory compliance.

Resource

Features

Raspberry Pi Radio Module 2 is a radio module designed for use with Raspberry Pi’s low-cost, high-performance microcontrollers
Adopts Infineon’s CYW43439, a single-chip combo device featuring 1 × 1 single-band 2.4GHz Wi-Fi 4 (802.11n) and Bluetooth 5.2 for low-cost applications
It is a small form-factor solution with minimal external components for reduced mass production costs
Adopts castellated edge pads to allow for a variety of mounting options
Features an on-board single 2.4GHz antenna for ease of design
It has full modular certification, making integration straightforward with regard to regulatory compliance

Specification

Wi-Fi® support: Wi-Fi 4 (802.11n), single-band (2.4 GHz)
Bluetooth® support: Bluetooth 5.2 Bluetooth Classic and Bluetooth Low Energy (LE)
Compatibility: Full software compatibility with Pico W and Pico 2 W SDK
Simple GPIO expander: Three host-controlled GPIOs for added I/O capabilities
Minimal I/O overhead: Low-pin-count gSPI host interface allows for simplified
integration with minimal I/O requirements
Single-antenna design: SISO1 configuration supports efficient single-antenna wireless performance
Wi-Fi and Bluetooth can coexist with a shared antenna
Connectivity: Integrated internal PA and LNA for signal range and reliability
Speed: Supports 20 MHz channels with data rates up to 96 Mbps (PHY rate)
Bluetooth range: Supports up to 100 m (Class 1) and 10 m (Class 2)
Operating temperature: −30°C to +70°C

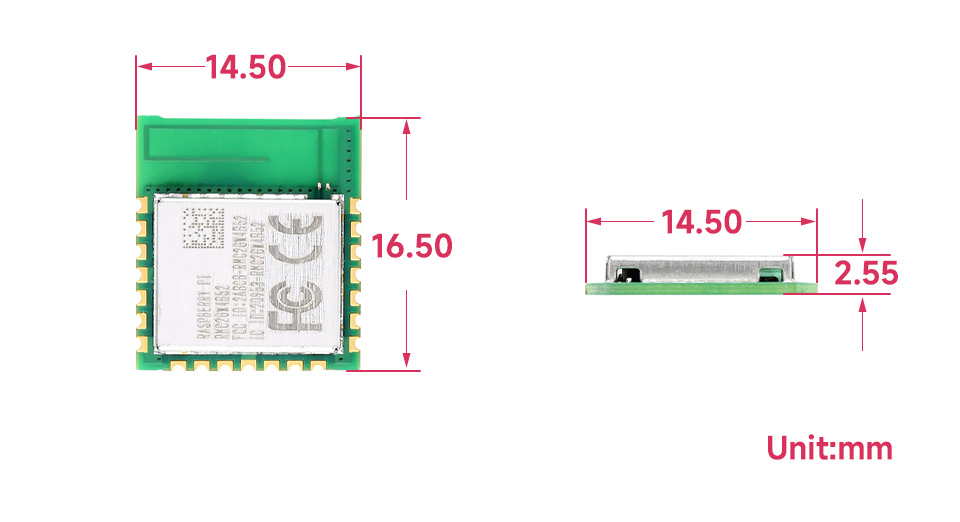

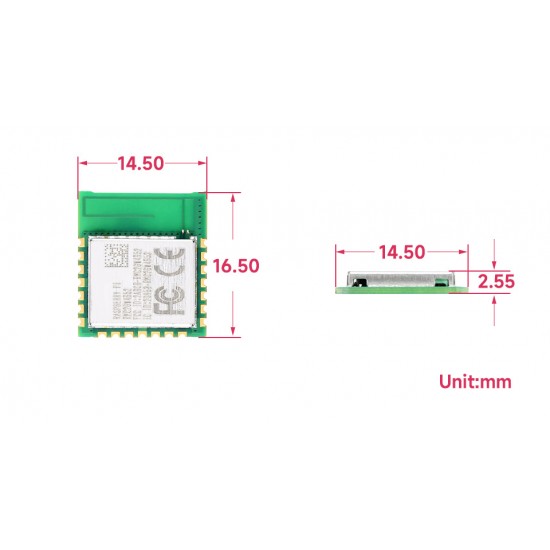

Dimensions: 16.5 mm × 14.5 mm
Low power consumption:

IEEE Power Save PM1 DTIM1 average rate 1: 1.19 mA
Receive active rate MCS7 (at –50 dBm): 43 mA
Transmit active rate MCS7 (at 16 dBm): 271 mA
