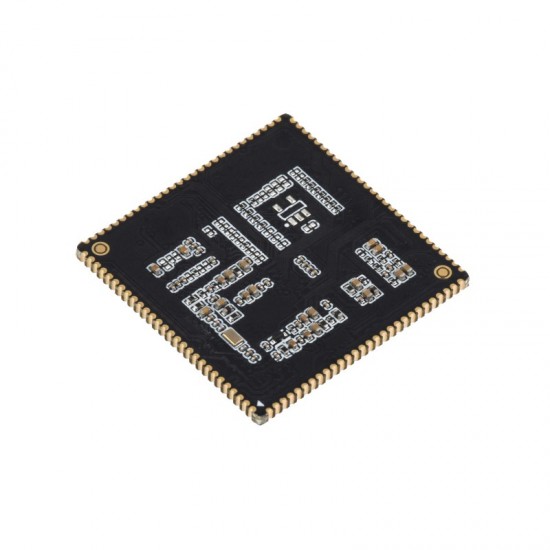

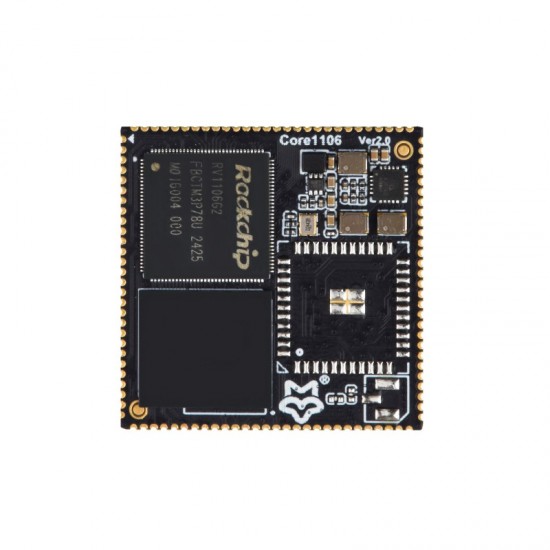

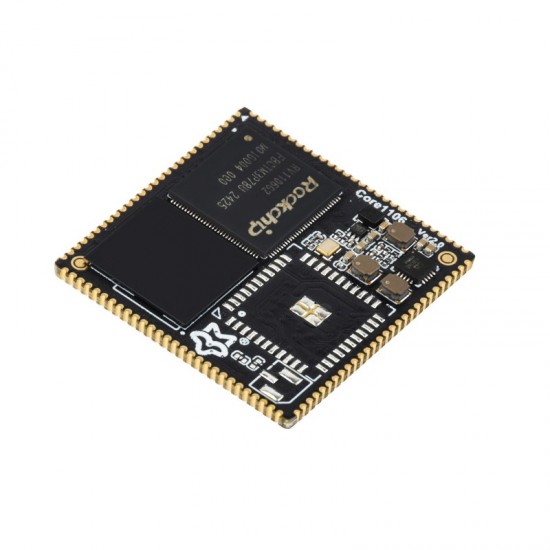

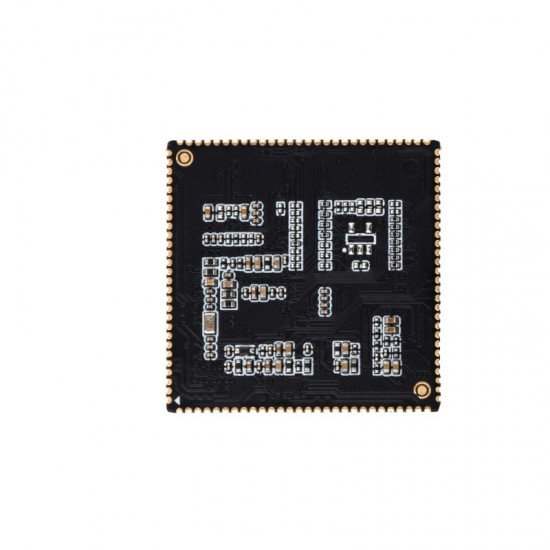

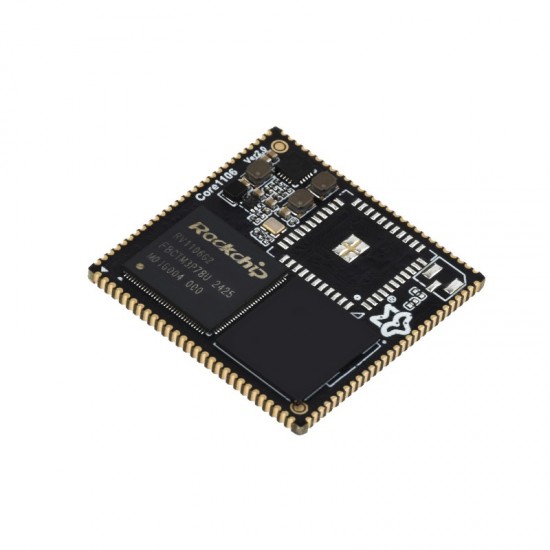

Luckfox Core1106 Core Board Based On Rockchip RV1106 Chip, 128MB RAM & 8GB eMMC, Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors - Non Wireless
The Luckfox Core1106 Core Board is a compact and powerful embedded development platform based on the Rockchip RV1106 processor. It integrates an ARM Cortex-A7 processor, RISC-V MCU, NPU, and ISP, providing a versatile solution for edge AI, computer vision, embedded control, and intelligent IoT applications.
The board features 128MB RAM and 8GB eMMC storage, offering reliable onboard memory and storage for embedded Linux systems and application development. Its integrated NPU supports AI inference, while the dedicated ISP enables efficient image and video processing for vision-based applications.
User Manual / Datasheet / Example Codes Etc.
Specifications
- CPU: Options for RV1106G2 (0.5TOPS, 128MB DDR3L) or RV1106G3 (1TOPS, 256MB DDR3L)
- Processor: Cortex A7 at 1.2GHz
- ISP: Supports 5M at 30fps input
- Video encoding: Hardware encoding, supports MJPEG, H264, H265
- Display interface: Parallel RGB 18-bit × 1
- Camera interface: MIPI CSI 2-lane × 2 or MIPI CSI 4-lane × 1
- Microphone: Analog differential MIC interface × 2
- Audio output: LINEOUT × 1
- USB: USB 2.0 Host/Device
- wireless module: Options for 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE
- Ethernet port: 10/100M Ethernet controller and embedded PHY
- Default storage: Options for eMMC (8GB) or SPI NAND (256MB)
- Other resources: I2S × 3, I2C × 5, SPI × 2, SDIO × 2, ADC × 2, UART × 6, PWM × 12
- Dimensions: 30 × 30 (mm)
- Castellated holes: 112 Pin
Package Includes
- Core11060208 x1
