Waveshare Core2021-HF Dual-Band LoRa Module, Based on LR2021 Transceiver, Supports 850 ~ 930MHz, 2.4GHz And 1.5~2.5GHz Frequency Bands, Low-power And Multi-protocol IoT LoRaWAN Module (Solder Version)

The Waveshare Core2021-HF Dual-Band LoRa Module is a compact and high-performance wireless communication module designed for advanced IoT and LoRaWAN applications. Based on the powerful LR2021 transceiver, this module supports multiple frequency bands including 850~930MHz Sub-GHz, 2.4GHz, and 1.5~2.5GHz ranges, enabling flexible long-range and high-speed wireless connectivity for smart devices and industrial applications.

The module features low power consumption and multi-protocol support, making it suitable for battery-powered IoT nodes, smart agriculture, wireless monitoring, industrial automation, and remote sensing projects. Its integrated RF design ensures stable signal transmission, enhanced anti-interference performance, and reliable long-distance communication.


User Manual / Datasheet / Example Codes Etc.


This item is available in multiple variants :

  • Core2021-HF (Unsolder Version): Link
  • Core2021-HF (Solder Version): Link
  • Core2021-LF (Unolder Version): Link
  • Core2021-LF (Solder Version): Link


Features

  • Based on the fourth-generation LoRa multi-band transceiver LR2021
  • Supports Sub-GHz (410 ~ 510 MHz / 850 ~ 930 MHz), 2.4 GHz ISM band, and 1.5 ~ 2.5 GHz licensed bands
  • Connects to the cloud via LoRa or LoRaWAN protocol through a gateway, enabling low-power wide-area networking (LPWAN)
  • Compatible with multiple protocols including LoRa, FLRC, FSK, BLE, and ZigBee
  • SPI communication interface, supports mainstream MCU platforms for seamless integration and migration
  • Suitable for IoT applications such as industrial telemetry, smart home, environmental monitoring, and remote data acquisition
  • Comes with online development resources and manual (examples for ESP32 / Raspberry Pi / Arduino / STM32 / Raspberry Pi Pico)


Specifications

  • Version: Core2021-HF
  • RF chip: LR2021
  • Frequency range
    • HF: 850 ~ 930MHz
    • 2.4 GHz ISM band, 1.5 ~ 2.5 GHz licensed bands
    • Modulation LoRa, FLRC, FSK, BLE, ZigBee
  • Data rate
    • LoRa: 0.091Kbps ~ 125Kbps
    • FLRC: 0.13 Mbps ~ 2.6 Mbps
    • FSK: 0.5 Kbps ~ 2 Mbps
    • BLE: 125 kbps / 500 kbps / 1 Mbps / 2 Mbps
  • Emit power
    • -10dBm ~ 22dBm at Sub-GHz band
    • -17dBm ~ 12dBm at ISM band
  • Receiver sensitivity
    • -141.5dBm at Sub-GHz band, SF=7, CR4_5, BWL=125KHz
    • -130.5dBm at ISM band, SF=12, CR4_5, BWL=800KHz
    • -111dBm at FLRC，260 Kbps
    • -97dBm at BLE，2 Mbps
  • Typical Range
    • Sub-GHz band: 5KM
    • ISM band: 2KM
    • Spreadind factor: SF5 ~ SF12
  • Electrical Characteristics
    • Operating voltage: 3.3V (maximum 3.7V)
    • Logic Voltage: 3.3V (A level converter is required for other logic levels)
    • Module power consumption
      • Sub-GHz band:
      • emitting current: 105mA at 22dBm
      • receiving current: 5.8mA at 125KHz
      • ISM band:
      • emitting current: 23mA at 12dBm
      • receiving current: 6.4mA at 125KHz
  • Hardware Specifications
    • Communication bus: SPI
    • Crystal Oscillator XTAL 32MHz
    • Antenna Interface: IPEX-4 connector and castellated hole (additional operation required)
    • Antenna Protection: TVS protection
    • Operating temperature: -40℃ ~ 85℃
    • Connector: castellated edge / solder holes, pitch 2.54mm
    • Dimensions: 19.00×22.00mm

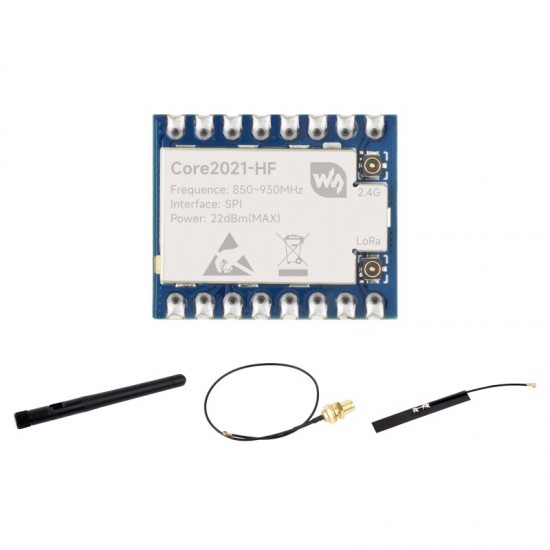

Package Includes

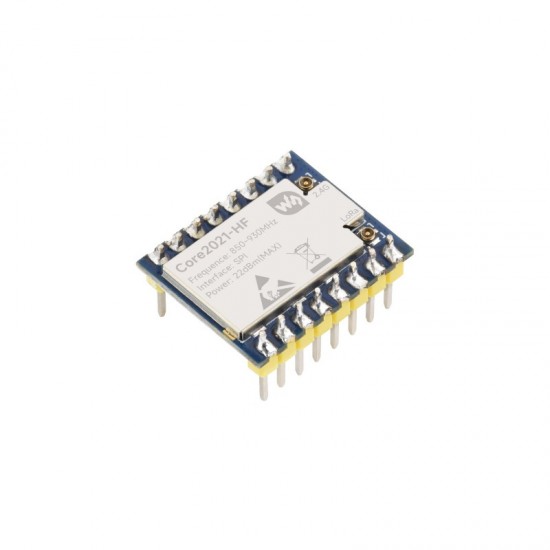

  • Core2021-HF with pre-soldered headers x1
  • IPEX4 to SMA cable x1
  • 2dBi SMA antenna x1
  • 2.4G antenna x1

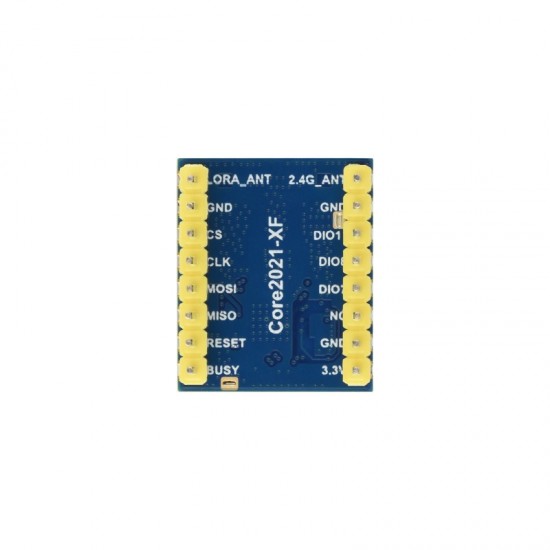

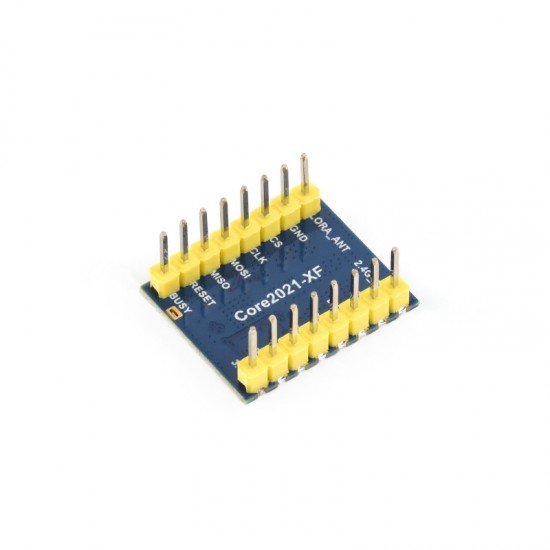

Pinout Definition

Dimensions
