The Waveshare Core2021-HF Dual-Band LoRa Module is a high-performance multi-band wireless communication module designed for advanced IoT and LoRaWAN applications. Based on the powerful LR2021 transceiver, this compact module supports multiple frequency bands including 850~930MHz, 2.4GHz, and 1.5~2.5GHz, enabling flexible long-range wireless communication across a wide range of smart devices and industrial systems.

Designed for low-power operation, the module is ideal for battery-powered IoT projects, wireless sensor networks, smart agriculture, industrial automation, smart home systems, and remote monitoring applications. It supports multi-protocol communication and LoRaWAN networking, offering reliable long-distance data transmission with excellent interference resistance and stable connectivity.

User Manual / Datasheet / Example Codes Etc.

This item is available in multiple variants :

Core2021-HF (Unsolder Version): Link
Core2021-HF (Solder Version): Link
Core2021-LF (Unolder Version): Link
Core2021-LF (Solder Version): Link

Features

Based on the fourth-generation LoRa multi-band transceiver LR2021
Supports Sub-GHz (410 ~ 510 MHz / 850 ~ 930 MHz), 2.4 GHz ISM band, and 1.5 ~ 2.5 GHz licensed bands
Connects to the cloud via LoRa or LoRaWAN protocol through a gateway, enabling low-power wide-area networking (LPWAN)
Compatible with multiple protocols including LoRa, FLRC, FSK, BLE, and ZigBee
SPI communication interface, supports mainstream MCU platforms for seamless integration and migration
Suitable for IoT applications such as industrial telemetry, smart home, environmental monitoring, and remote data acquisition
Comes with online development resources and manual (examples for ESP32 / Raspberry Pi / Arduino / STM32 / Raspberry Pi Pico)

Specifications

Version: Core2021-HF
RF chip: LR2021
Frequency range

HF: 850 ~ 930MHz
2.4 GHz ISM band, 1.5 ~ 2.5 GHz licensed bands
Modulation LoRa, FLRC, FSK, BLE, ZigBee

Data rate

LoRa: 0.091Kbps ~ 125Kbps
FLRC: 0.13 Mbps ~ 2.6 Mbps
FSK: 0.5 Kbps ~ 2 Mbps
BLE: 125 kbps / 500 kbps / 1 Mbps / 2 Mbps

Emit power

-10dBm ~ 22dBm at Sub-GHz band
-17dBm ~ 12dBm at ISM band

Receiver sensitivity

-141.5dBm at Sub-GHz band, SF=7, CR4_5, BWL=125KHz
-130.5dBm at ISM band, SF=12, CR4_5, BWL=800KHz
-111dBm at FLRC，260 Kbps
-97dBm at BLE，2 Mbps

Typical Range

Sub-GHz band: 5KM
ISM band: 2KM
Spreadind factor: SF5 ~ SF12

Electrical Characteristics

Operating voltage: 3.3V (maximum 3.7V)
Logic Voltage: 3.3V (A level converter is required for other logic levels)
Module power consumption

Sub-GHz band:
emitting current: 105mA at 22dBm
receiving current: 5.8mA at 125KHz
ISM band:
emitting current: 23mA at 12dBm
receiving current: 6.4mA at 125KHz

Hardware Specifications

Communication bus: SPI
Crystal Oscillator XTAL 32MHz
Antenna Interface: IPEX-4 connector and castellated hole (additional operation required)
Antenna Protection: TVS protection
Operating temperature: -40℃ ~ 85℃
Connector: castellated edge / solder holes, pitch 2.54mm
Dimensions: 19.00×22.00mm

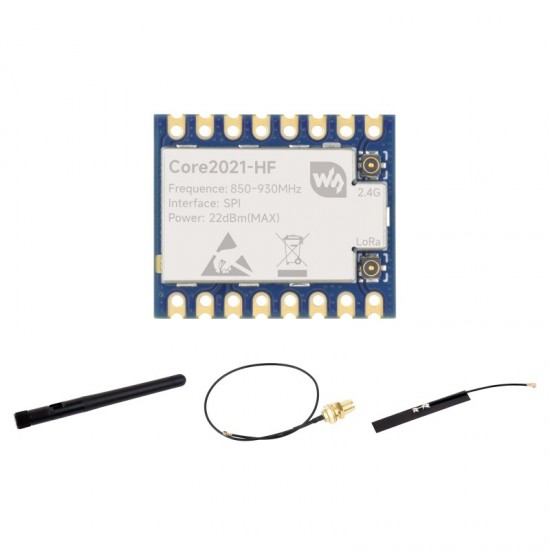

Package Includes

Core2021-HF
IPEX4 to SMA cable
2dBi SMA antenna
2.4G antenna

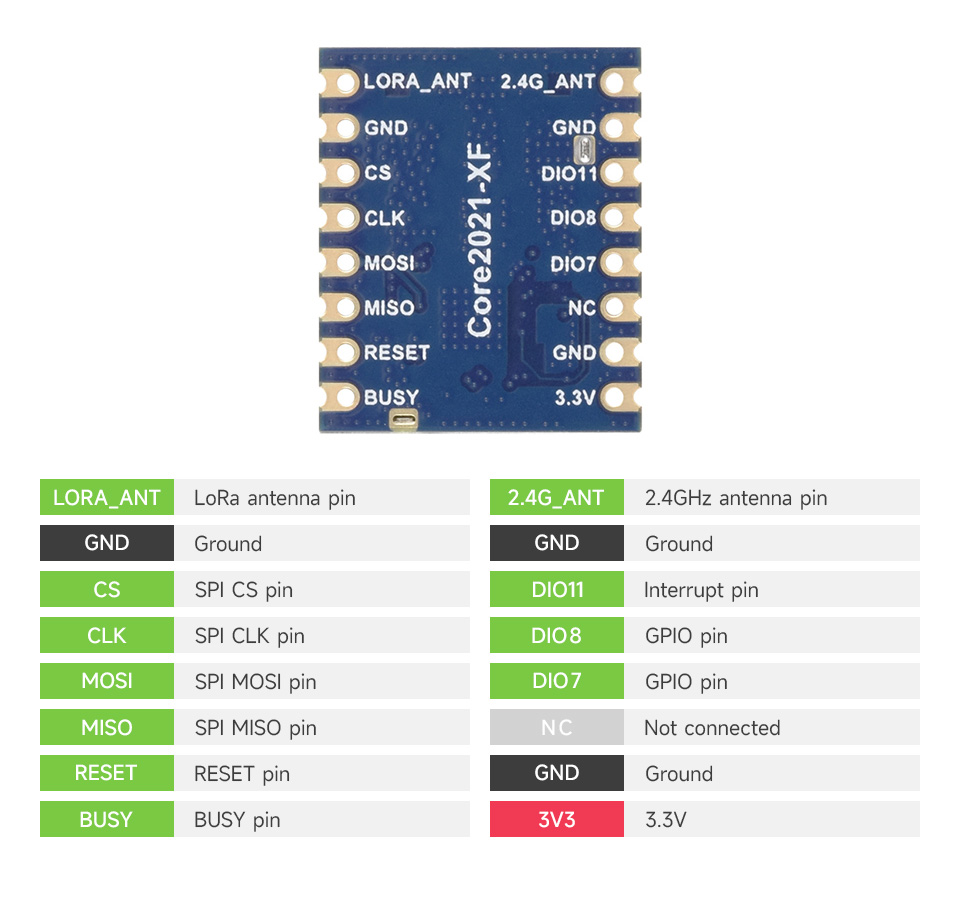

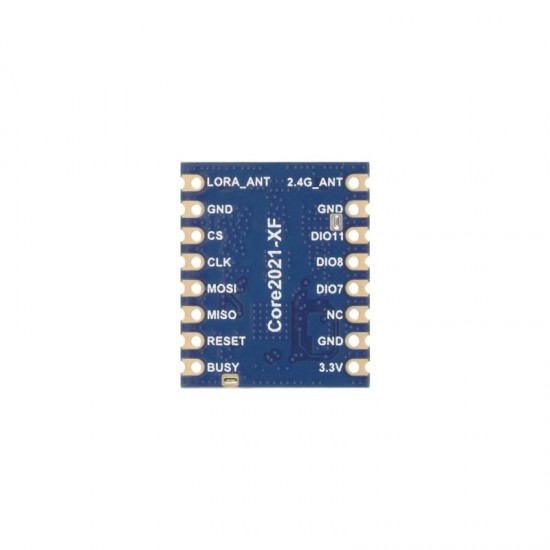

Pinout Definition

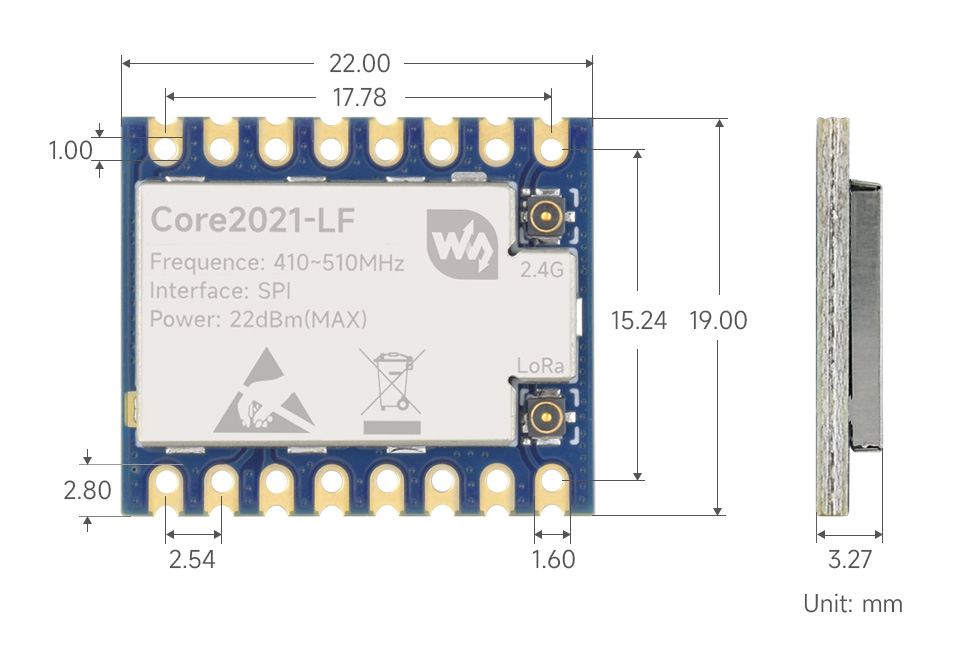

Dimensions
