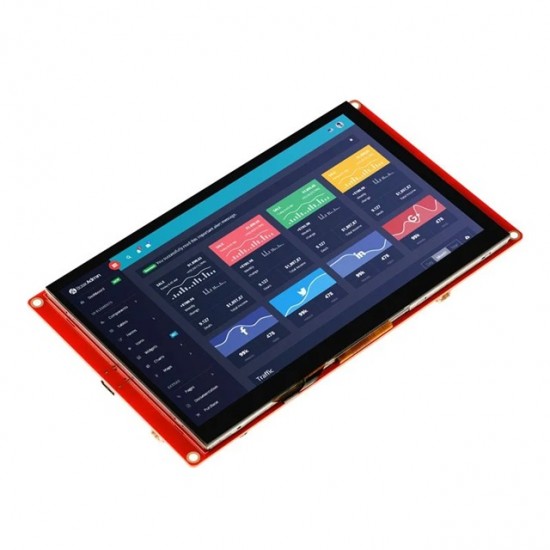

Elecrow CrowPanel 7inch HMI ESP32 Display 800x480 RGB TFT LCD Touch Screen Compatible with Arduino/LVGL/ PlatformIO/Micropython - Without Acrylic Case

CrowPanel ESP32 Display 7.0-inch module is a powerful HMI touch screen with an 800*480 resolution LCD. It uses the ESP32-S3-WROOM-1-N4R8 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth-compatible wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.

The module includes a 7.0-inch LCD display and a driver board. The display screen uses a capacitive touch technology, and the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library, supporting openHASP. Additionally, it provides 16 learning tutorials and a wealth of open-source learning materials. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.

The CrowPanel ESP32 Display 7.0-inch module is suitable for a wide range of scenes such as automotive HMI, medical equipment, smart home, industrial control, power, civil electronics, home automation, new energy, and IoT application devices. Its various interfaces and expansion functions enable it to meet the needs of different fields, providing users with a more comprehensive solution.

User Manual / Datasheet / Example Codes Etc.

Features

Integrated ESP32-S3 module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;
Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro Python and compatible with LVGL graphics library;
Built-in LVGL demo interface and Arduino example, plug and play;
LCD 800*480 7.0 inches Capacitive TFT-LCD with driver IC EK9716BD3 + EK73002ACGB;
Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.

Specifications

Model: 7.0 inch -CrowPanel ESP32 display
Main Processor: ESP32-S3-WROOM-1-N4R8
Resolution: 800*480
Flash: 4MB
PSRAM:8MB
Touch Type: Capacitive Touch Screen
Display Type: TN Panel
Screen: TFT-LCD Screen
Display driver: EK9716BD3 & EK73002ACGB
External power supply: DC5V-2A
Battery voltage: 3.7-4.2V
Interface: 2*UART0,2*GPIO,2*I2C,1*Battery
Button: BOOT Button and Reset Button
Active Area: 153.84*85.63mm(W*H)
Working Temperature: -20℃～70℃
Storage Temperature: -30℃～80℃

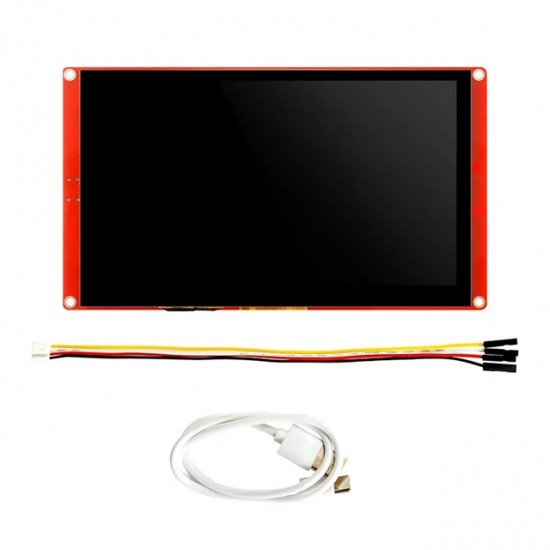

Package Includes

1x CrowPanel ESP32 Display 7.0 Inch Display
1x USB-A to Type-C Cable
1x Crowtail/Grove to 4pin DuPont cable

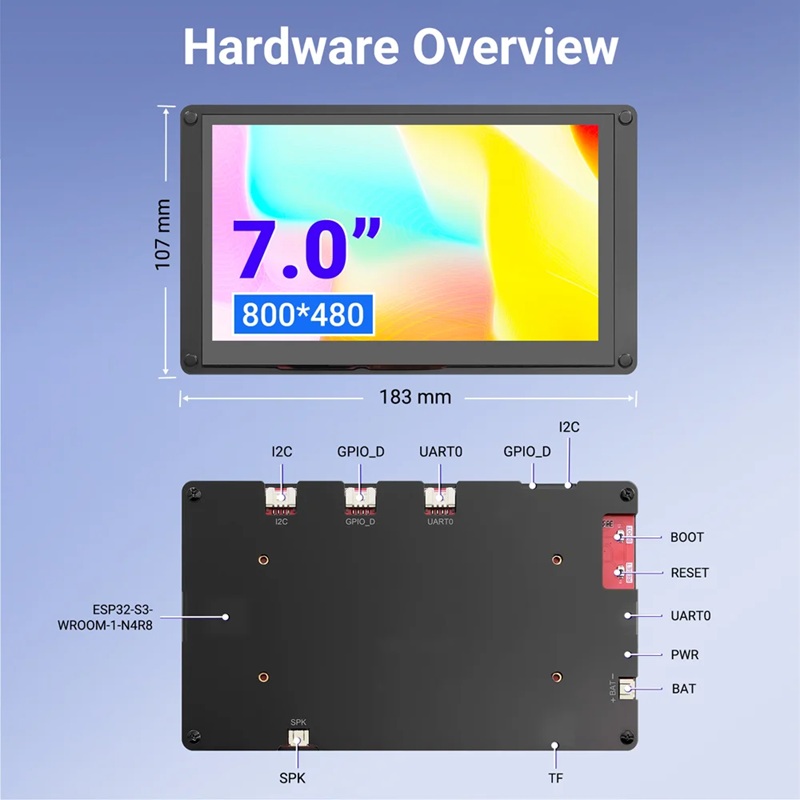

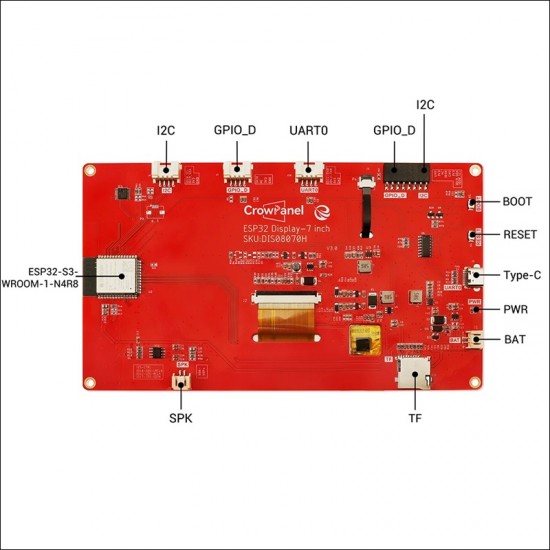

Hardware Overview
