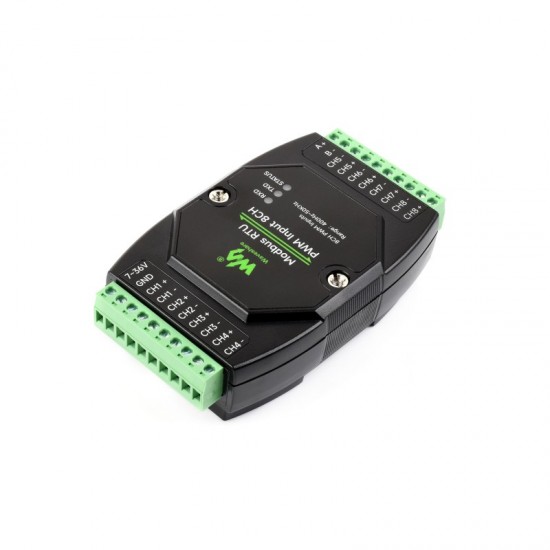

Industrial 8-Ch PWM Input Module, Modbus RTU Protocol, Isolated RS485 Interface, Supports Frequency And Duty Cycle Acquisition, With Various Isolation And Protection Circuits

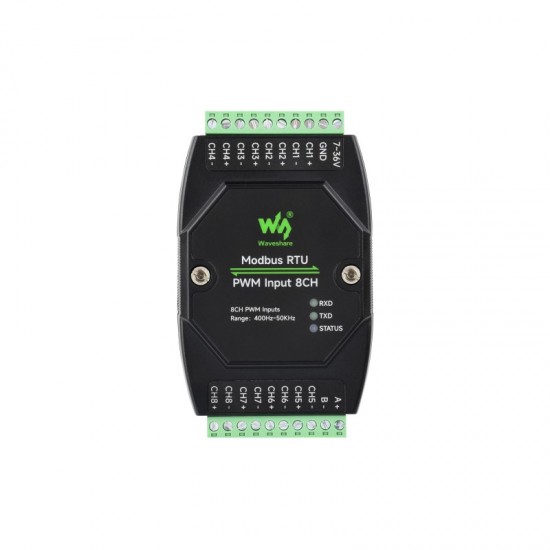

The Modbus RTU PWM Input 8CH is an isolated RS485 to 8-Ch PWM PWM input module, supports PWM pulse frequency and duty cycle detection. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.

User Manual / Datasheet / Example Codes Etc.

Features

The inputs use high-speed optocoupler isolation and support high-frequency detection
Configurable device address (1~255), multi devices can be cascaded on RS485 bus
Onboard voltage regulator, supports 7~36V wide range power supply
Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
Onboard watchdog, for stable output without crashing

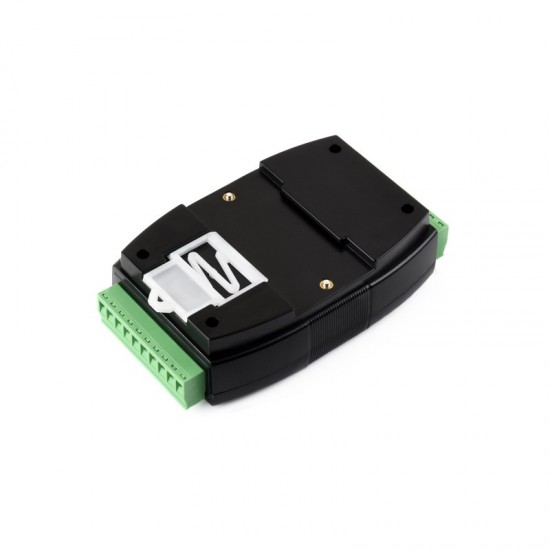

Rail-mount case design, support stacking combination, easy to install and safer to use
3x LEDs for indicating the MCU status and signal transceiving status

Specifications

Communication interface: RS485
Baud rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
Default communication format: 9600, N, 8, 1
Modbus protocol: Standard Modbus RTU protocol
Power supply: DC 7~36V
Pulse Input Voltage: 3.3V ~ 30V
Frequency Detection Range: 400Hz ~ 50kHz
Frequency Resolution: 0.01Hz
Frequency Accuracy: 5‰
Duty Cycle Detection Range: 0 ~ 100%
Duty Cycle Resolution: 0.01%
Duty Cycle Accuracy: 5‰

Package Includes

Modbus RTU PWM Input 8CH x1
Power supply terminal adapter x1
Screwdriver x1

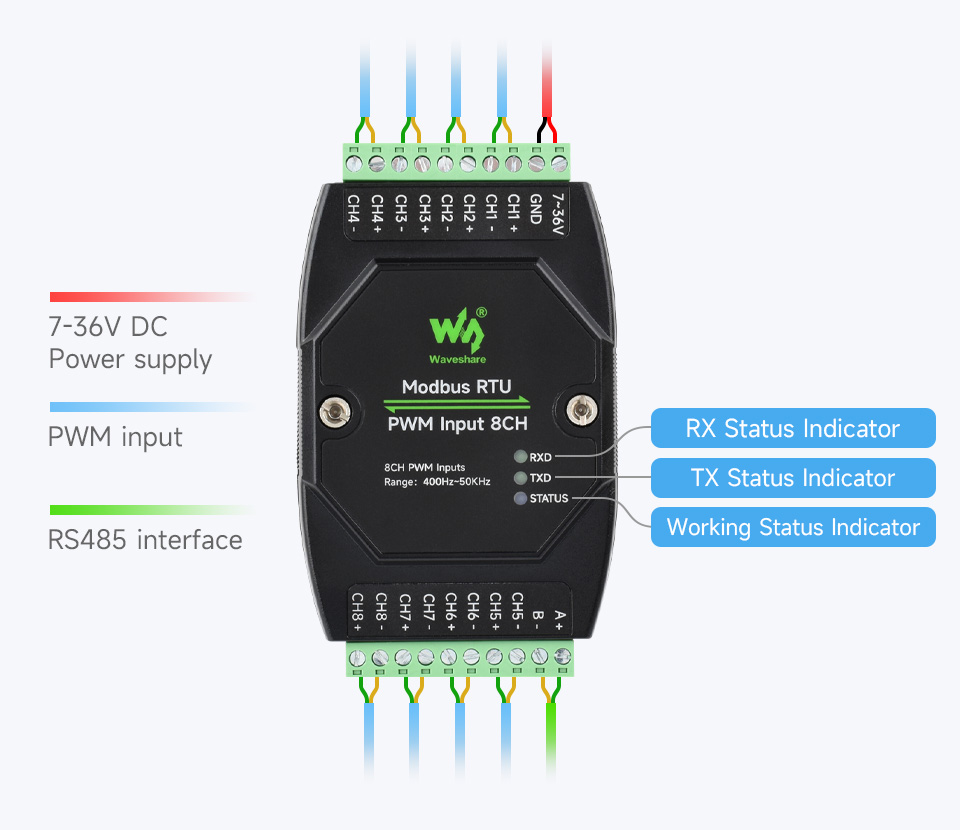

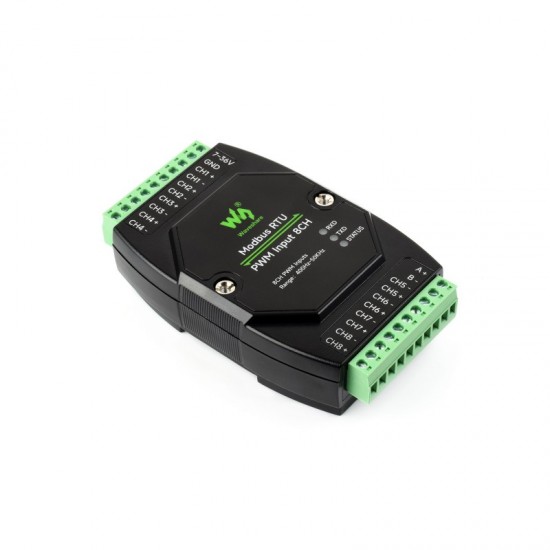

Interface Introduction

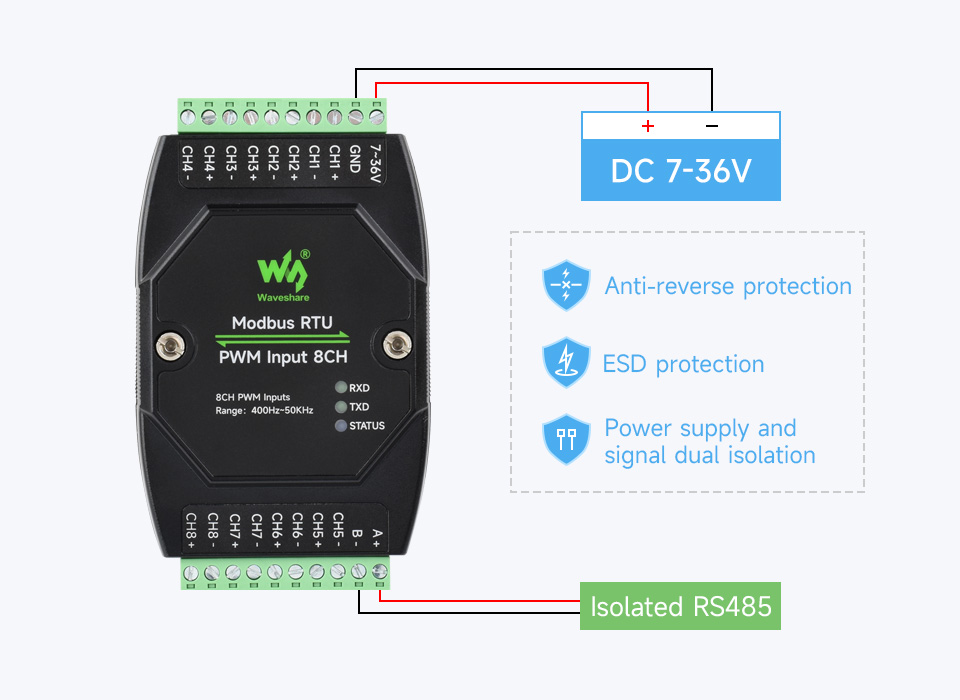

Wide voltage power supply, isolated RS485 interface

Built-in fuse and anti-reverse protection, With Power and Signal Dual Isolation

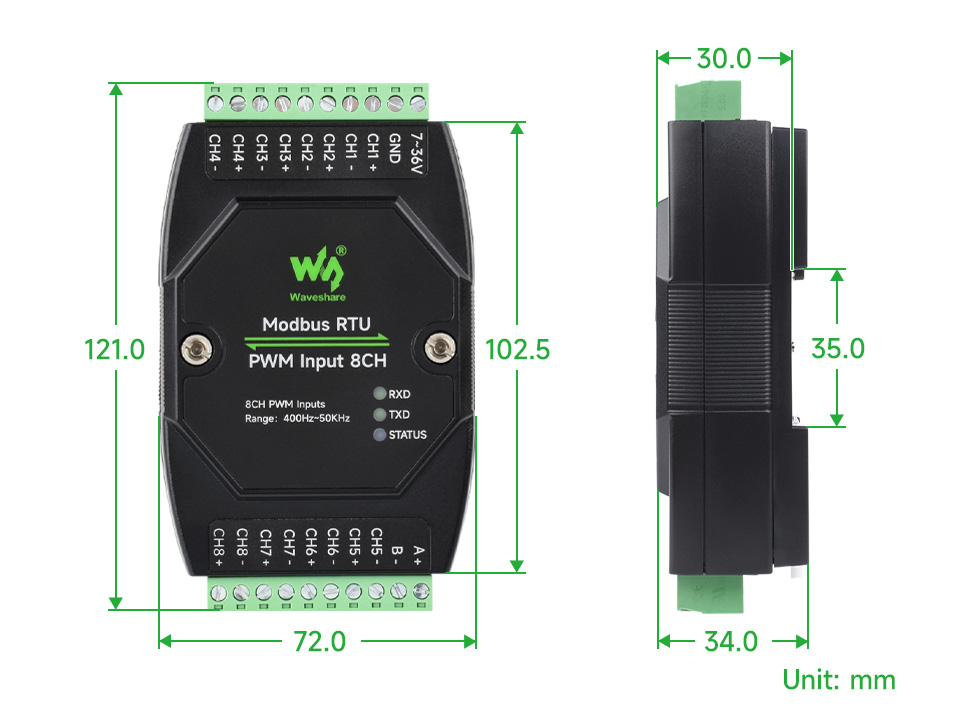

Dimensions
