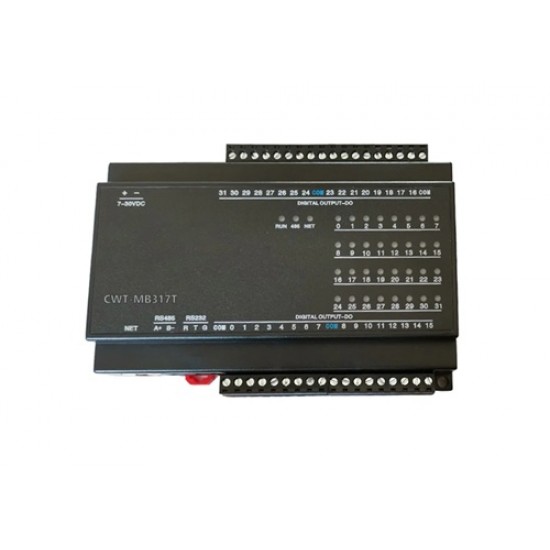

ComWinTop CWT-MB317T 32-Channel Digital Output Industrial Modbus Digital Output Controller - RS485 Interface
The CWT-MB317T 32-Channel Digital Output Industrial Modbus Controller is a reliable industrial automation module designed for multi-channel digital output control through Modbus RTU communication over RS485. Featuring 32 independent NPN transistor output channels, this controller enables efficient integration with PLCs, HMIs, SCADA systems, industrial PCs, and remote monitoring platforms. It is suitable for industrial control, process automation, equipment switching, signal transmission, and IoT-based applications.
Built with an industrial-grade architecture, the module supports wide DC power input, electrical isolation, and enhanced communication protection for stable operation in demanding environments. The compact design supports DIN rail installation or screw mounting, making deployment quick and flexible across industrial cabinets and control panels.
Features
- 32-channel digital output (NPN transistor type)
- RS485 communication interface
- Supports Modbus RTU protocol
- Output isolation with optocoupler protection
- Wide input voltage range: 7–35V DC
- Adjustable baud rate from 1200 to 115200bps
- Industrial-grade protection against ESD, overvoltage, overcurrent, and surge
- DIN rail or screw mounting support
- Designed for industrial automation, remote I/O, and control systems
- Stable operation across -40°C to +85°C environments
Specifications
- Output Channels: 32 Digital Outputs
- Output Type: NPN Transistor Output
- Output Isolation: Optocoupler Isolation
- Load Voltage: 5–30V DC
- Maximum Load Current: 100mA per channel
- Communication Interface: RS485
- Communication Protocol: Modbus RTU
- Baud Rate: 1200 ~ 115200 bps (Default: 9600)
- Serial Configuration: 8 Data Bits, 1 Start Bit, 1/2 Stop Bits
- Parity Options: None / Even / Odd
- Default Communication Setting: 9600.N.8.1
- Power Supply: 7–35V DC
- Power Consumption: Approx. 2W
- Processor: 32-bit ATMEL ARM, 72MHz
- Protection Features: Reverse polarity, ESD, overvoltage, overcurrent protection
- Operating Temperature: -40°C to +85°C
- Humidity Range: 5%–95% RH (Non-condensing)
- Mounting Method: DIN Rail / Screw Mount
- Protection Rating: IP20
- Watchdog: 1.5m Guard
Package Includes
- 1x ComWinTop CWT-MB317T 32-Channel Digital Output Industrial Modbus Digital Output Controller - RS485 Interface
