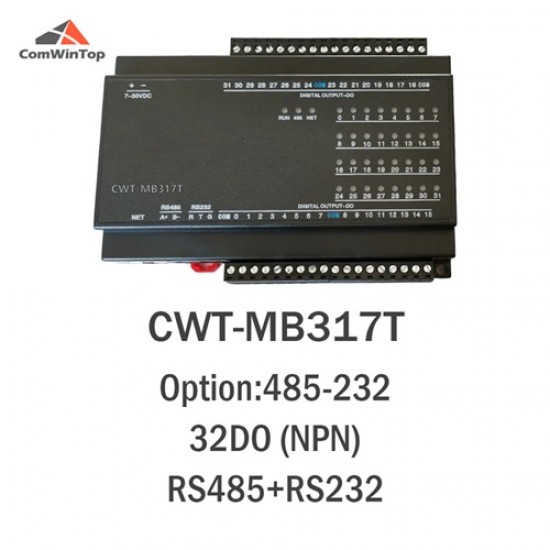

ComWinTop CWT-MB317T 32-Channel Digital Output + RS485+ RS232 Industrial Modbus Digital Output Controller
The CWT-MB317T 32-Channel Digital Output Controller is an industrial-grade Modbus digital output control module designed for reliable remote switching, automation, and equipment control applications. Equipped with 32 NPN transistor digital output channels, integrated RS485 and RS232 communication interfaces, and MODBUS RTU protocol support, this controller enables seamless integration with PLCs, SCADA systems, HMIs, industrial PCs, and IoT gateways.
Built for demanding industrial environments, the controller features optocoupler isolation, wide DC power input, and robust communication protection including ESD, overvoltage, overcurrent, and lightning protection to ensure stable long-term operation. Its DIN rail mounting design allows fast deployment inside industrial control cabinets and automation panels.
Features
- 32-channel NPN transistor digital outputs
- Dual communication interfaces: RS485 + RS232
- Supports MODBUS RTU industrial communication
- Optocoupler-isolated outputs for enhanced reliability
- Wide input voltage: 7–35V DC
- Communication protection with 2500V lightning protection and ESD protection
- Adjustable serial communication settings (1200–115200 baud)
- DIN rail or screw mounting installation
- Suitable for continuous industrial operation
Specifications
- Digital Output Channels: 32 Channels
- Output Type: NPN Transistor Output
- Output Isolation: Optocoupler Isolation
- Load Voltage: 5–30V DC
- Load Current: 100mA per channel (max)
- Communication Interfaces: 1 × RS485, 1 × RS232
- Communication Protocol: MODBUS RTU
- Baud Rate: 1200–115200 bps (Default: 9600)
- Serial Configuration: 8 Data Bits, 1/2 Stop Bits, Even/Odd/None Parity
- Default Communication Setting: 9600.N.8.1
- Processor: 32-bit ATMEL ARM, 72MHz
- Operating System: GCOS, 10ms Scheduling Mechanism
- Power Supply: 7–35V DC
- Power Consumption: Approx. 2W
- Protection Features: Reverse polarity protection, DCDC isolation, ESD protection, overvoltage protection, overcurrent protection, 2500V lightning protection
- Installation Method: DIN Rail Mounting / Screw Mounting
- Operating Temperature: −40°C to +85°C
- Operating Humidity: 5%–95% RH (Non-condensing)
- Protection Rating: IP20
- Watchdog Function: 1.5m Watchdog
Package Includes
- 1x ComWinTop CWT-MB317T 32-Channel Digital Output + RS485+ RS232 Industrial Modbus Digital Output Controller
