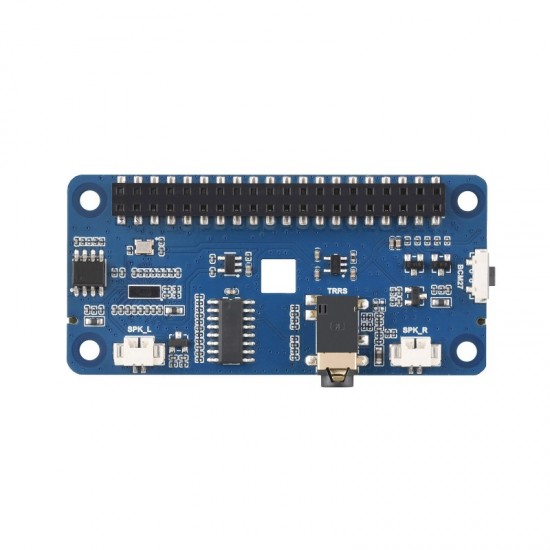

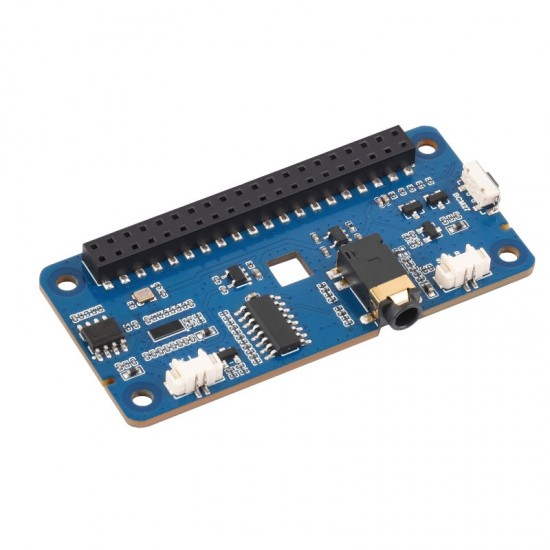

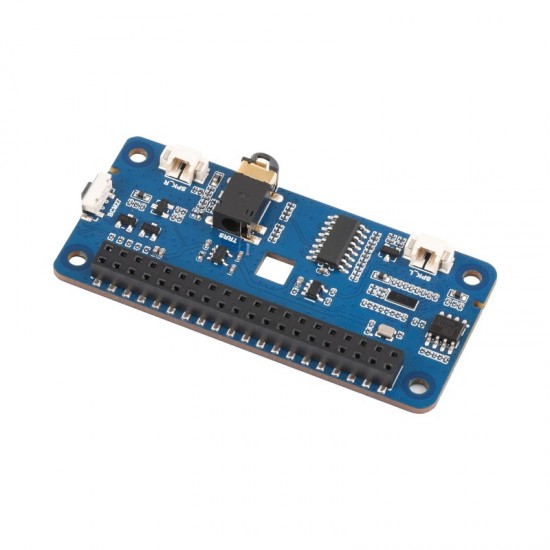

The Waveshare DA7212 I2S Audio HAT Type B is a high-quality audio expansion board designed for Raspberry Pi series boards, providing stereo audio encoding and decoding through the I2S interface. Powered by the DA7212 audio codec, it delivers rich audio processing capabilities for applications requiring reliable digital audio input and output.

The HAT features convenient onboard speaker headers, making it easy to connect external speakers without complicated wiring. An integrated EEPROM chip enables automatic HAT identification and configuration, simplifying integration with compatible Raspberry Pi boards.


User Manual / Datasheet / Example Codes Etc.


Features

  • Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
  • Adopts DA7212 professional stereo audio codec, controlled through I2C, with audio transmitted via I2S interface
  • Onboard standard 3.5mm headphone jack, supports audio playback via external headphones
  • Onboard dual speaker headers, compatible with multiple application scenarios

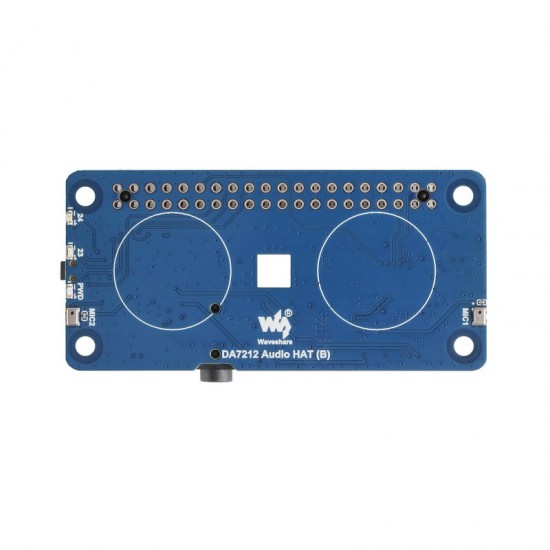

  • Onboard dual microphones allow for recording without connecting any additional devices
  • Onboard programmable button and indicators for custom functions
  • Supports sampling frequency up to 96KHz
  • Supports up to 24-bit resolution audio data


Specifications

  • Audio Codec Chip: DA7212
  • Power Supply: 5V
  • Logic Voltage: 3.3V
  • Control Interface: I2C
  • Audio Interface: I2S
  • DAC SNR: 100dB
  • ADC SNR: 90dB
  • Headphone Driver: 160mW (16Ω at 5V)
    • Speaker Driver: 2.6W per channel (4Ω BTL)


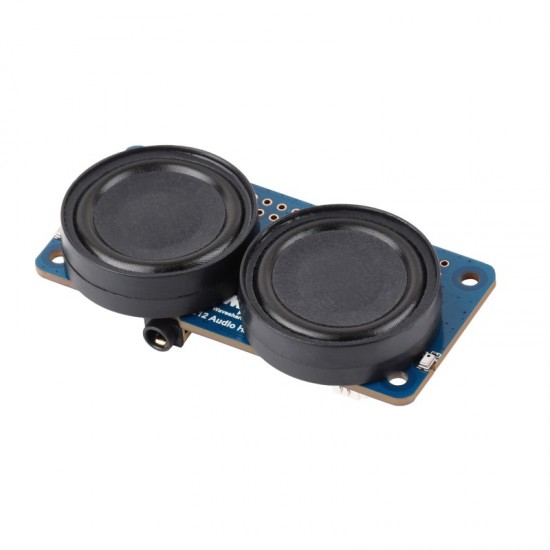

    Package Includes

    • DA7212 Audio HAT (B) x1
    • 2 × 20PIN 2.54mm header x1
    • 4Ω 3W speaker x2
    • Screws pack x1

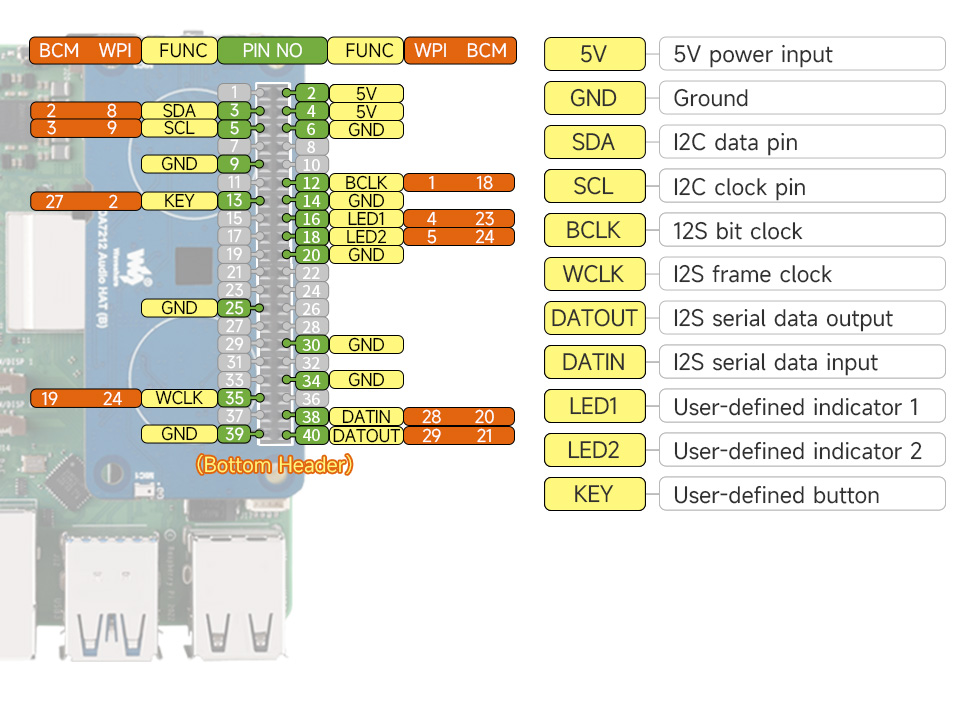

    Pin definition

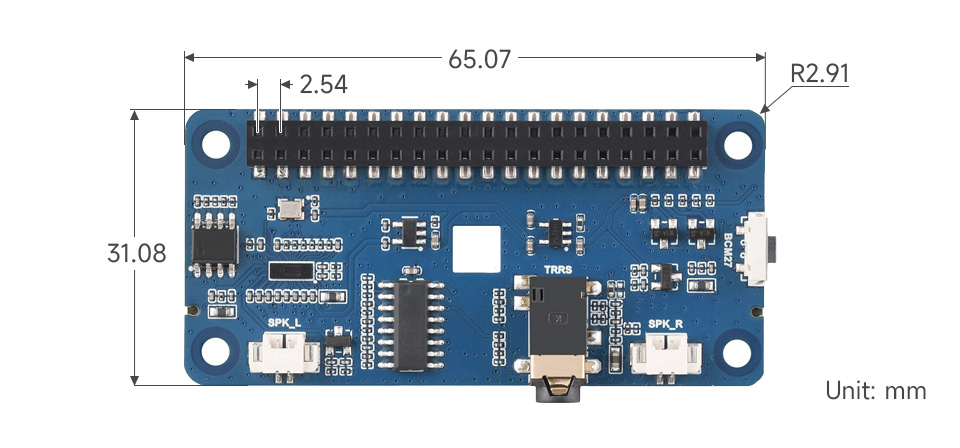

    Dimensions
