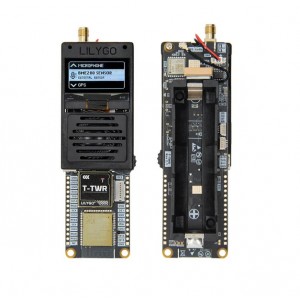

LILYGO T-TWR Plus ESP32-S3-WROOM-1-N16R8 400-480MHz Wireless Module With 1.3inch OLED Display - H632
T-TWR Plus is the ultimate development board for ambitious tech-enthusiasts. With integrated Wi-Fi and Bluetooth, and a SA868 Wireless Transceiver, this board can achieve Walkie-Talkie functionality. It also includes an OLED Display and GPS for precise location tracking. Unleash the potential of T-TWR Plus and make your tech dreams come true.
The LILYGO T-TWR Plus Comes With ESP32-S3-WROOM-1-N16R8 MCU, 16MB Flash, 8MB PSRAM and 1.3inch OLED display, Which support Wifi & Bluetooth Version 5 .
User Manual / Datasheet / Example Codes Etc.
Specifications
- MCU : ESP32-S3-WROOM-1-N16R8
- Flash : 16MB
- PSRAM : 8MB
- Wireless protocol : Wi-Fi & Bluetooth 5 (LE) Onboard functions 4 Buttons (PPT+Boot + PWR + Reset), PMU AXP2102, TF Card function, WS2812 RGB LED
- Supply Mode : USB / 21700 battery / 18650 battery + spring
- L76K GNSS Module : Support GPS, BDS, GLONASS Built-in LNA, SAW Filter, Support AGNSS and 1PPS
1.3 inch SH1106 OLED
- Resolution : 128x 64
- I2C Interface : SDA--IO08 SCL--IO09
- Display Color : 2
Package Includes
- 1 X T-TWR Plus UHF
- 1 X U band antenna: 400-480MHz
- 2 X (1 * 15pin 2.54mm)
- 1 X 4pin 2.54mm DuPont cable to 1.0mm connector
- 1 X Spring
Pin Daigram
