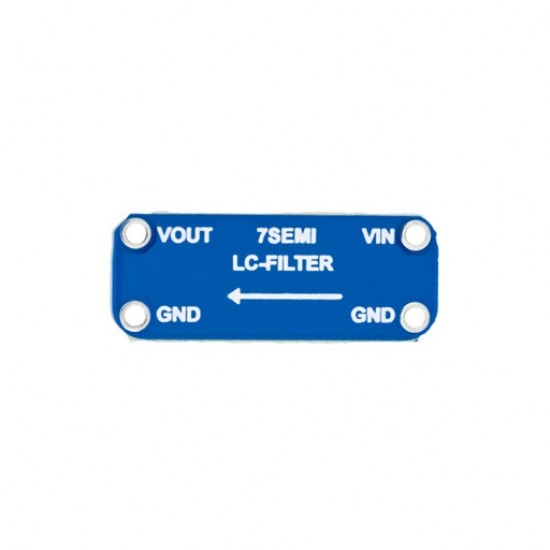

7Semi LC Power Filter Module 3A
Engineered for superior power conditioning, the 7Semi LC Power Filter Module 3A is an advanced ripple suppression solution designed for sensitive DC-powered electronics. This high-efficiency filter module significantly reduces voltage noise and instability, delivering clean and stable power output for microcontrollers, embedded systems, communication interfaces, and audio electronics. Its LC filtering network, combined with a Schottky diode (SS34), offers optimal protection against power fluctuations, enhancing overall circuit performance and lifespan.
Supporting a wide DC voltage input range of 5V to 24V and a continuous current load of up to 3A, this module is built to handle demanding electronic environments. The SS34 diode’s low forward voltage drop reduces thermal loss, making the design energy-efficient without compromising reliability. With its compact footprint and robust construction, the 7Semi LC Power Filter Module is the ideal solution for engineers and hobbyists seeking dependable power stabilization in modern electronic designs.
Features
- High-Efficiency Ripple Suppression: Reduces voltage ripple by over 60% at 1A load, providing cleaner and more stable power.
- Wide Input Voltage Compatibility: Operates seamlessly within 5V to 24V DC range for broad application suitability.
- 3A Current Capacity: Supports up to 3A continuous current, making it suitable for high-power circuits.
- SS34 Schottky Diode: Offers low Vf (forward voltage drop) for enhanced energy efficiency and minimal heat generation.
- Compact Form Factor: Easily fits into tight PCB layouts, ideal for space-constrained designs.
- Reliable Construction: Built with quality materials for long-term durability and consistent performance.
- Broad Application Scope: Perfect for use in microcontroller-based systems, embedded electronics, audio processors, and telecom equipment.
Specifications
- Diode Type: SS34 (3A, 40V, low Vf Schottky)
- Rated Current: Up to 3A continuous
- Operating Voltage: 5V to 24V DC
- Ripple Suppression: > 60% at 1A load
- Operating Temperature: -40°C to +85°C
- Weight: 2g

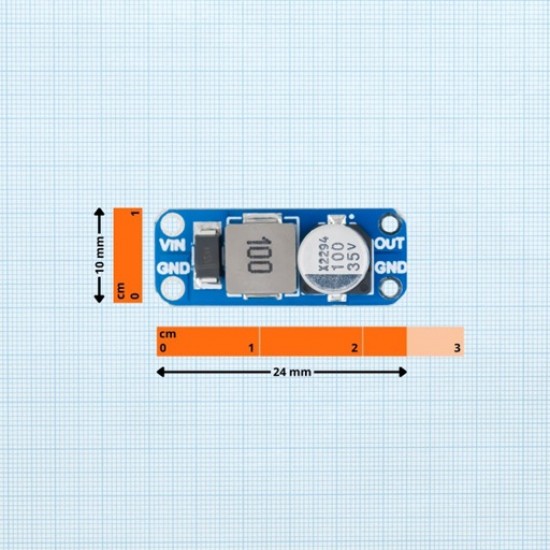

- Size: L=24mm W=10mm H=9.65mm
Package Includes
- 1x 7Semi LC Power Filter Module 3A
