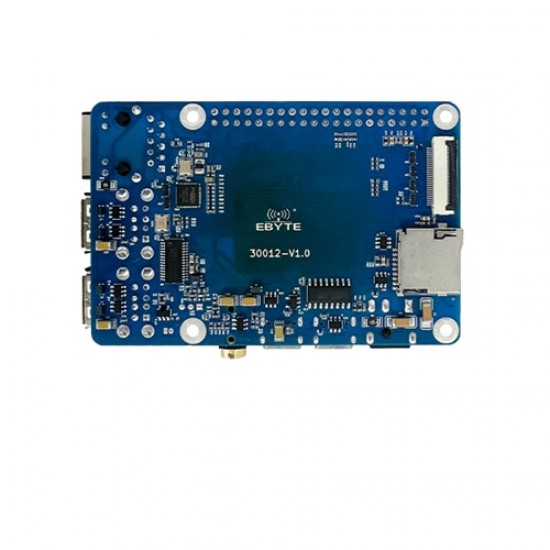

Ebyte ECB31-P4T13SA2ME8G 256MB RAM 8GB eMMC Industrial-grade Single Board Computer - Based on Allwinner T113-S Processors

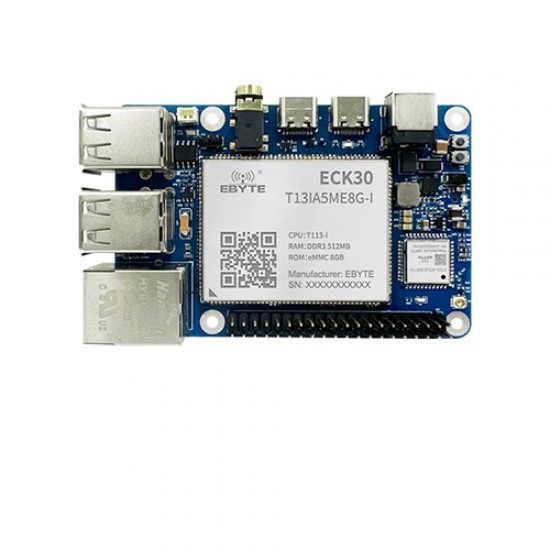

ECB30-P4T13IA5ME8G-I industrial-grade single-board computer is a cost-effective embedded single-board computer launched by Ebyte based on the Allwinner T113-i processor. The single-board computer consists of the core board ECK30-T13IA5ME8G-I and the baseboard. The core board and the baseboard are combined by stamp hole welding. The size is compatible with Raspberry Pi. The design level is higher than that of ordinary development boards and can be used in industrial scenarios in batches.
Features
- Industrial-grade single board computer designed for embedded and industrial applications
- Powered by Allwinner T113-S dual-core ARM Cortex-A7 processor up to 1.2GHz
- Integrated heterogeneous architecture with RISC-V core and HiFi4 DSP support
- 256MB DDR3 memory for stable embedded system operation
- Built-in 8GB eMMC storage for reliable local data and OS deployment
- Raspberry Pi compatible board dimensions (85 × 56 mm) for easier integration
- Supports Linux-based embedded development environments
- Gigabit Ethernet (10/100/1000M RJ45) connectivity
- Dual-band 2.4GHz / 5GHz Wi-Fi support
- 3 × USB 2.0 Host ports plus 1 × USB Type-C OTG interface
- MIPI display interface with up to 1080P output support
- CVBS input and output support for multimedia and display applications
- Dual CAN interfaces for industrial communication systems
- Multiple GPIO, UART, and I2C expansion interfaces
- TF card slot for additional storage expansion
- 3.5mm audio interface with headphone and microphone support
- Designed for HMI, industrial control, IoT gateways, automation, and edge computing deployments
Specifications
- Power Input: 12V_1A DC input
- processor: Allwinner T113-i processor: Dual Arm Cortex-A7 core, 1.2GHz; Hematite C906 RISC-V (64bit), 1008MHz; HiFi4 DSP, 1.2GHz
- storage
- Memory: 512MB，DDR3
- FLASH: 8GB，eMMC
- USB HOST: 4-way USB2.0 HOST
- USB OTG: 1-way USB OTG, Type-C interface type
- Network port: 1 10/100/1000M adaptive RJ45 Ethernet port
- WiFi: 1 line 2.4G Wi-Fi
- TF: 1 TF card slot, supports plug-in detection;
- Audio: 1 3.5mm audio interface, supporting headphone output and microphone input;
- debug: 1 debug serial port, Type-C interface type;
- CAN: 2-way CAN interface, extended interface lead-out
- GPIO: 28 GPIOs, multiplexed with some functions, extended interface leads;
- Serial Port: 1 UART communication serial port, TTL level, extended interface lead out;
- I2C: 2-way I2C, expansion interface lead out
- button: 1 reset button; 1 FEL download button;
- Indicator Lights: 1 power indicator light; 1 operation indicator light; 1 debugging indicator light;
- Watchdog: Support on-chip watchdog function;
- RTC: 1-way 1.25mm RTC battery holder
- Power Output: 2-way 5V 1A power output, extended interface lead out; 2-way 3.3V 1A power output, extended interface lead out
Package Includes
- 1x Ebyte ECB31-P4T13SA2ME8G 256MB RAM 8GB eMMC Industrial-grade Single Board Computer - Based on Allwinner T113-S Processors
