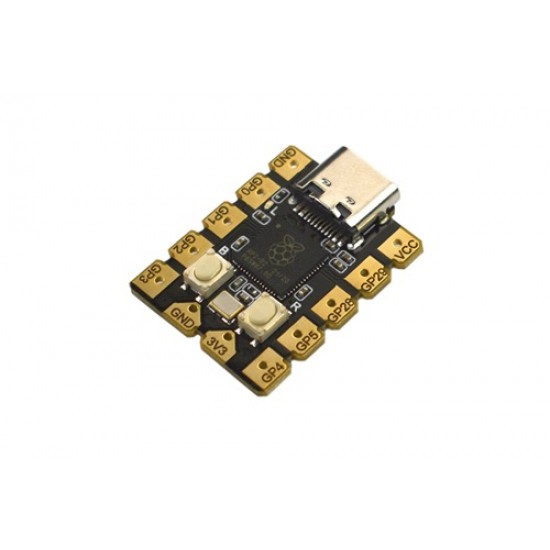

DF ROBOT Beetle RP2040 Mini Development Board 2MP Flash (MPN: DFR0959)

DF ROBOT Beetle RP2040 Mini Development Board 2MP Flash (MPN: DFR0959)
DF ROBOT Beetle RP2040 Mini Development Board 2MP Flash (MPN: DFR0959)
DF ROBOT Beetle RP2040 Mini Development Board 2MP Flash (MPN: DFR0959)
DF ROBOT Beetle RP2040 Mini Development Board 2MP Flash (MPN: DFR0959)
DF ROBOT Beetle RP2040 Mini Development Board 2MP Flash (MPN: DFR0959)
DF ROBOT Beetle RP2040 Mini Development Board 2MP Flash (MPN: DFR0959)
DF ROBOT
DF ROBOT Beetle RP2040 Mini Development Board 2MP Flash (MPN: DFR0959)
₹​899.00
₹​761.86 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 8
B2B GST Credit Available
Price in reward points: 762

DF ROBOT Beetle RP2040 Mini Development Board 2MP Flash

Designed by Raspberry Pi, RP2040 features a dual-core ARM Cortex-M0+ processor with up to 133MHz clock and 264KB internal RAM, and supports USB 1.1 devices, which allows users to focus on function implementation instead of spending too much time and effort on improving codes.

DFRobot Beetle RP2040 is a development board built around the RP2040 chip. It has a compact size of 27mm×20mm, which is easy to be embedded into small devices or projects.


User Manual / Datasheet / Example Codes Etc.


Features

  • RP2040 microcontroller chip designed by Raspberry Pi
  • 2M FLASH storage
  • Small size of 27mm x 20mm
  • Immersion gold pad for easy soldering
  • Support C++, MicroPython, and Arduino C programming

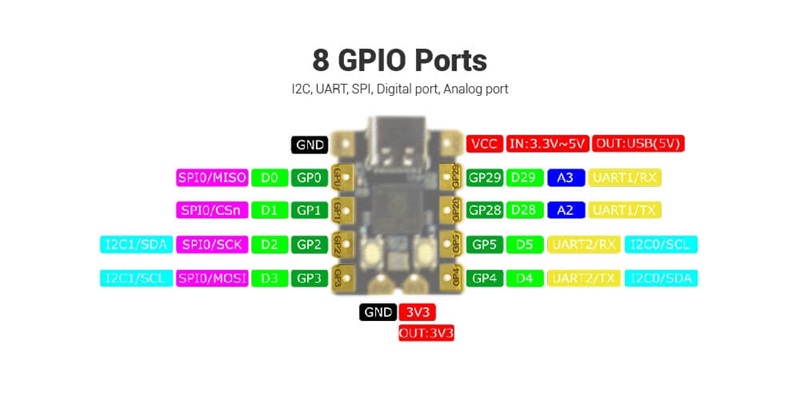

  • 8 GPIO pins, I2C × 2, UART × 2, SPI × 1, digital port × 8, analog port × 2
  • Onboard BLINK_LED light
  • USB TYPE-C interface
  • Work well with USB 1.1 device


Applications

  • Programmable light control and home appliance control
  • Stage props control
  • Desktop equipment
  • Node data collecting and AI analysis
  • Computer USB devices


Specifications

  • MCU: Raspberry Pi RP2040
  • Main Frequency: 133MHz
  • RAM: 264K
  • FLASH: 2M
  • Power Supply: DC 3.3V~5V
  • System Level: 3.3V
  • USB Interface: TYPE-C
  • GPIO: ×8
  • I2C: ×2
  • UART: ×2
  • SPI: ×1
  • Digital Port: ×8
  • Analog Port: ×2
  • Reset Button: ×1
  • BOOT Button: ×1
  • LED: ×1
  • USB Device: USB 1.1
  • Programming Method: C++, MicroPython, Arduino C, Mind+ graphical programming
  • Soldering Pad Size: 4×3.5mm
  • Pad Pitch: 2.54mm
  • PCB Material: FR-4
  • PCB Copper Clad Process: immersion gold
  • Solder Material: environment-friendly and lead-free

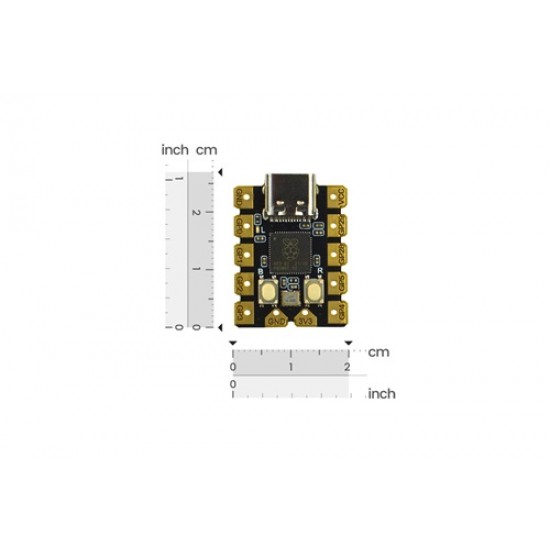

  • Dimension(without package): 27×20×4.91mm (at the highest point)/1.06×0.79×0.19"


Package Includes

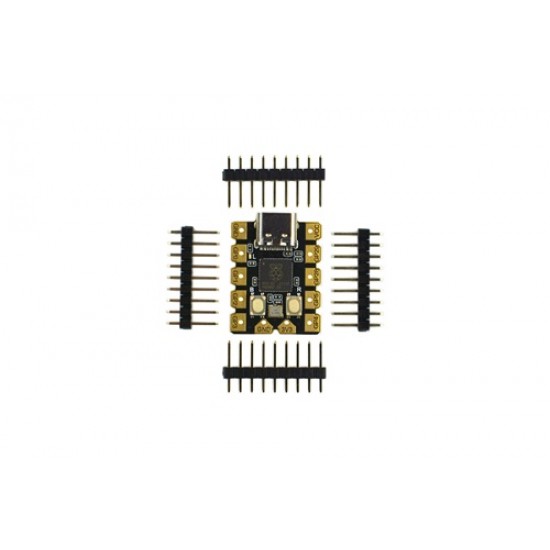

  • 1x Beetle RP2040
