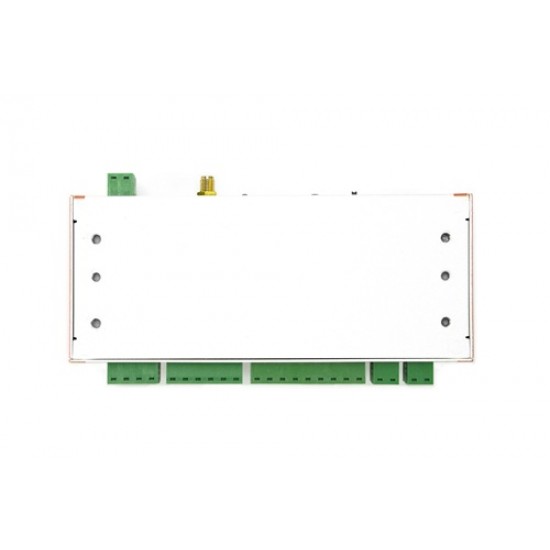

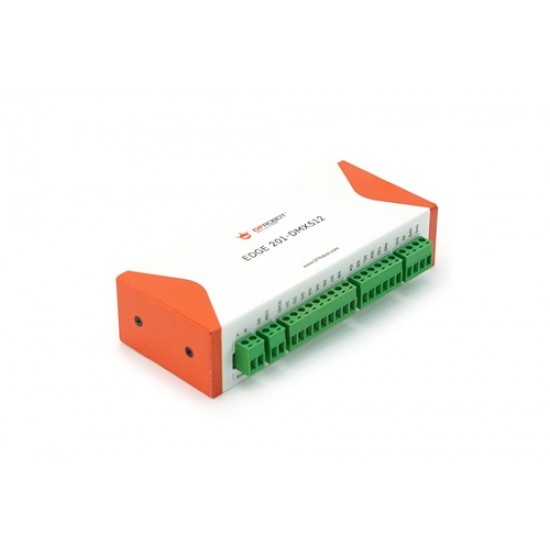

DF ROBOT ESP32-S3-Based DMX512 Smart Lighting Controller
The EDGE201-DMX512 controller is an advanced lighting control system designed to manage stage, theater, and venue lighting using the DMX512 protocol. With a variety of interfaces—including RS485, I2C, and UART—this controller supports seamless connections to a range of sensors and devices, including compatibility with Arduino, ESP32, and ESPHome for easy integration into custom projects.
It offers programmable, sensor-based automation for lighting and other stage equipment, moving beyond traditional manual control by consoles. Its dual-core architecture—combining the ESP32-S3 and a dedicated DMX512 chip—ensures high reliability, flexibility, and ease of use, making it a versatile solution for modern lighting applications. It features integrated WiFi and Bluetooth capabilities, allowing for remote control and programming.
User Manual / Datasheet / Example Codes Etc.
Features
- Standard DMX512 Protocol and Interfaces: Compatible with a wide range of DMX512 drivers and lighting fixtures, ensuring seamless integration into existing systems.
- 8 Optically Isolated Switch Inputs: Directly connects to standard PNP switch sensors, enhancing safety and reliability in industrial environments.
- Multiple Communication Ports: Includes 1 Relay Output, 1 RS485 Port (supporting master and slave modes), 1 I2C Interface, 1 UART Port, and 2 GPIO Ports, allowing versatile connections with various devices and sensors.
- Built-in Clock Chip: Enables the design of time-based functions and effects, accommodating special events and holiday lighting displays.
- ESP32-S3 Main Chip: Provides WiFi and Bluetooth support, ensuring easy and rapid programming through platforms such as Arduino.
- Dedicated DMX512 Protocol Chip: Guarantees reliable program operation, enhancing the overall stability of the system.
- Metal Enclosure: Designed for durability with options for ear mount or rail mount installations.
Specifications
- Power Supply Voltage: 12V ~ 24V
- Power Supply Interface: DC2.1 / Terminal Blocks
- Main Core Chip: ESP32-S3
- Program Download Interface: USB-Type C
- RTC Error: ±3 seconds in 30 days
- RTC Backup Power: Maintains clock for 12 hours after power failure
- Reset Button: 1

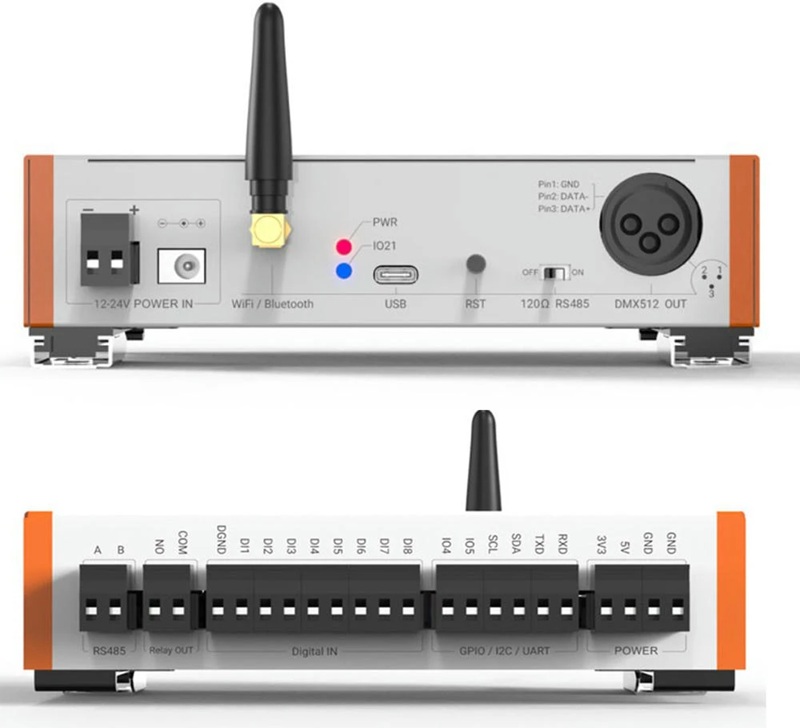

- Input and Output Interfaces
- DMX512 Output Interface: Three-pin XLR female connector
- Relay Output Interface: 1
- Optically Isolated Digital Input Interfaces: 8
- Polarity Support for Digital Sensors: PNP
- I2C Interface: 1
- UART Interface: 1
- GPIO: 2
- BLINK-LED: 1
- Physical Parameters
- Mounting Options: Rail mount, ear mount
- Enclosure Material: Alloy steel
- Product Weight: 400g

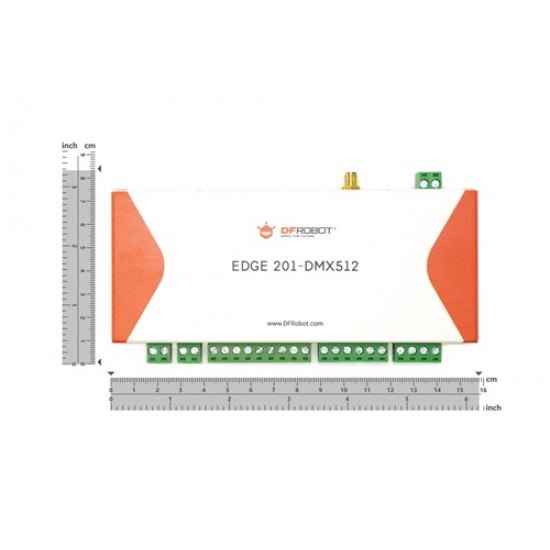

- Product Dimensions: 158mm × 83mm × 37mm
Applications
- Stage and Theater Lighting: Perfect for dynamic lighting setups in performances, providing seamless integration with stage equipment.
- Public Venue Lighting: Suitable for city squares, parks, and shopping malls, enhancing the ambiance through automated lighting effects.
- Commercial Lighting: Effective for lighting control in malls and restaurants, offering customizable solutions for various commercial settings.
- Home Lighting Control: Ideal for managing indoor and outdoor lighting systems, allowing for automated and sensor-based control.

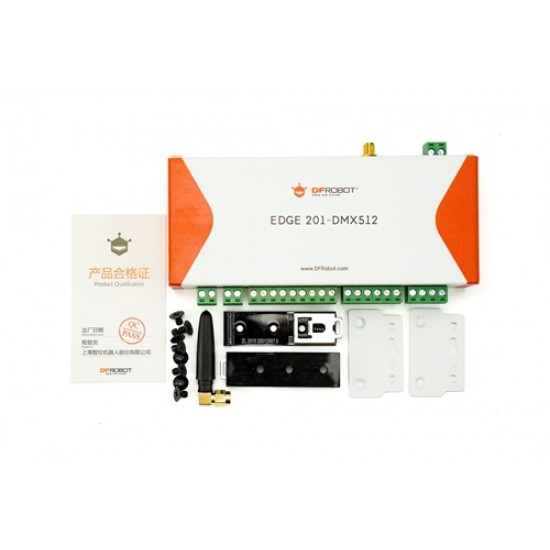

Package Includes
- DMX512 programmable controller
- WIFI/Bluetooth antenna
- 35mm DIN rail clips
- Mounting brackets
- Mounting screws pack
