DF ROBOT Fermion: Compact Low-Power 6DOF IMU Sensor for Embedded Motion Sensing (16x16mm, I2C, Breakout)

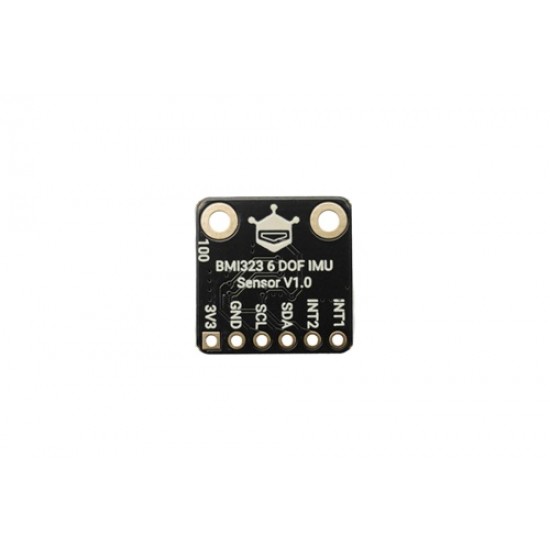

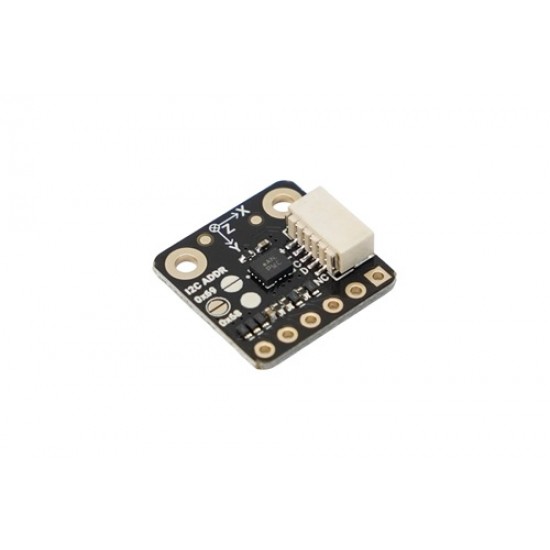

The Fermion BMI323 Low-Power 6DOF IMU Sensor is a compact 16 × 16 mm breakout for embedded motion sensing and sensor performance evaluation. Its Bosch BMI323 combines a 3-axis accelerometer and 3-axis gyroscope for acceleration, angular velocity, tilt, vibration and motion-change data. Configurable ranges, output data rates up to 6400 Hz, a 2048-byte FIFO and a 356 μA low-power mode make it suitable for wearables, compact controllers, battery-powered IoT nodes and integrated motion products. Arduino library support simplifies evaluation with Arduino-compatible boards, including ESP32.

Choose Fermion when board space, power consumption and direct sensor access matter more than plug-and-play wiring. Choose the Gravity BMI323 version when the project needs I2C/UART, 3.3–5 V compatibility, four selectable addresses, one integrated library or GUI visualization.

User Manual / Datasheet / Example Codes Etc.

Specifications

Operating Voltage: DC 3.3 V
Operating Current: 720 μA
Low Power Current: 356 μA
Communication Interface: I²C
Connector Type: SH1.0-5P connector / 2.54 mm pin header holes
I²C Addresses: 0x69 (default) / 0x68
Programmable Interrupt Pins: ×2
Accelerometer Measurement Ranges: ±2 g, ±4 g, ±8 g, ±16 g
Gyroscope Angular Rate Ranges: ±125, ±250, ±500, ±1000, ±2000 °/s

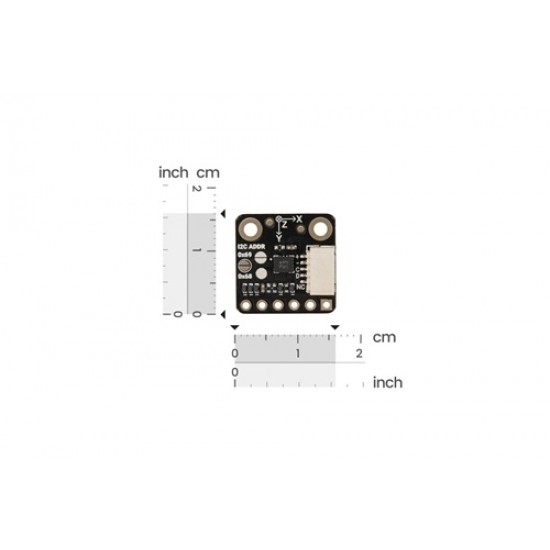

PCB Size: 16 mm × 16 mm
Mounting Hole Spacing: 11 mm
Mounting Hole Diameter: 2 mm

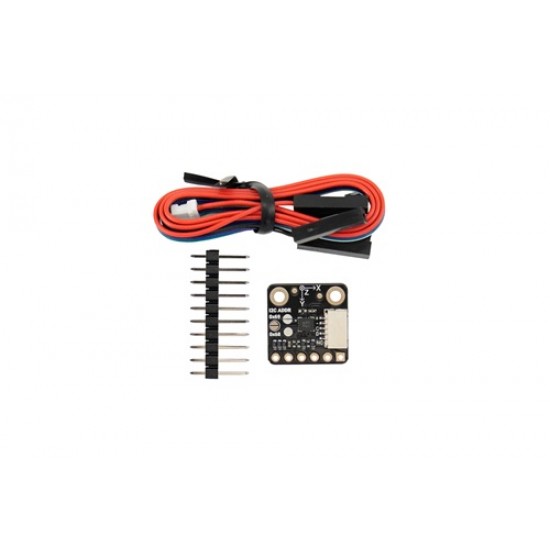

Package Includes

Fermion: BMI323 High-precision 6 DOF IMU Sensor ×1
SH1.0-5P Sensor Cable ×1
2.54 mm Black Single Row Pin Header – 10-Pin ×1
