Name: DF ROBOT FireBeetle 2 ESP32-C5-U (N4) IoT Development Board (Dual-Band Wi-Fi 6, External Antenna) (MPN:DFR1287)
Brand: DF ROBOT
SKU: 08891
Price: 1178.00 INR
Availability: OutOfStock

DF ROBOT FireBeetle 2 ESP32-C5-U (N4) IoT Development Board (Dual-Band Wi-Fi 6, External Antenna) (MPN:DFR1287)

New

DF ROBOT

DF ROBOT FireBeetle 2 ESP32-C5-U (N4) IoT Development Board (Dual-Band Wi-Fi 6, External Antenna) (MPN:DFR1287)

Based on 0 reviews. - Write a review

₹1,178.00

₹998.31 + 18% GST

All Inclusive, Shipping Calculated at Checkout

Assured Cashback of ₹ 10
B2B GST Credit Available

Price in reward points: 998

Stock: 0 in Stock
SKU: 08891
Delivery Time
Bulk & B2B RFQ

Buy Now NOTIFY WHEN AVAILABLE

Plan to Buy Later ? Add to Wish List

DF ROBOT FireBeetle 2 ESP32-C5-U (N4) IoT Development Board (Dual-Band Wi-Fi 6, External Antenna)

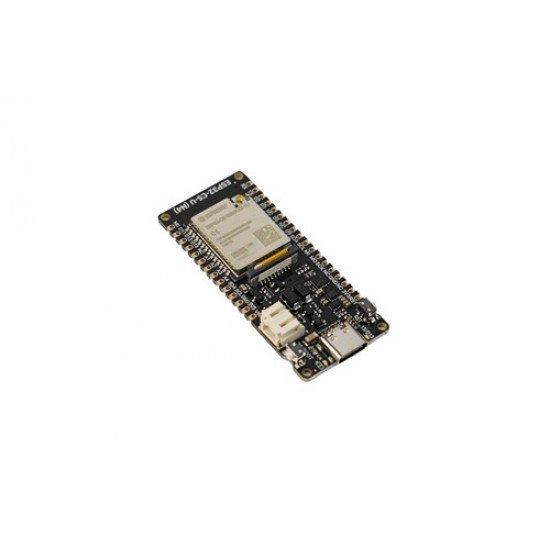

This FireBeetle 2 ESP32-C5-U(N4) development board is a compact low-power IoT platform based on the Espressif ESP32-C5-WROOM-1U-N4 module. Combining a 240 MHz single-core RISC-V processor, 4 MB Flash, dual-band Wi-Fi 6, Thread 1.3, Zigbee 3.0 and flexible power management, this ESP32-C5 development board is designed for smart home, industrial IoT, wireless sensing and battery-powered edge device projects.

User Manual / Datasheet / Example Codes Etc.

Features

Based on the ESP32-C5-WROOM-1U-N4 module
Up to 240 MHz single-core RISC-V processor
384 KB SRAM, 320 KB ROM, 4 MB Flash and 16 KB LP SRAM
Supports 2.4 GHz & 5 GHz dual-band Wi-Fi 6
Supports 2.4 GHz low-power wireless communication, Thread 1.3 and Zigbee 3.0
U.FL (IPEX) external antenna connector for flexible antenna placement outside metal or waterproof enclosures

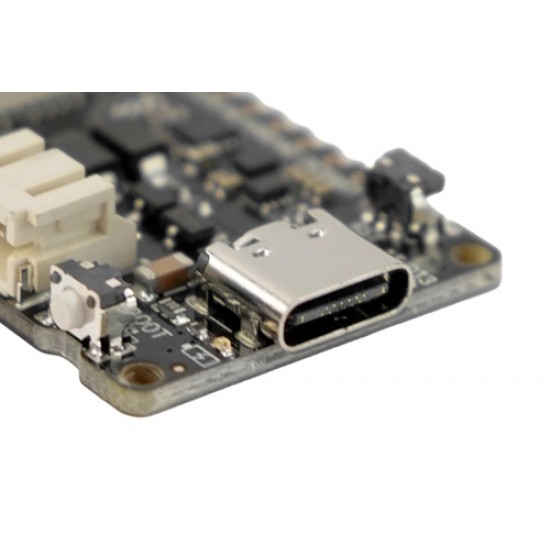

Supports USB Type-C, 5 V DC and 4.5–6 V solar panel power input
Supports Li-ion battery charging with a maximum charging current of 0.5 A
Battery voltage monitoring and switchable 3.3 V power output
21 μA deep-sleep current under battery power
Onboard GDI connector for display integration
Onboard PH2.0 Li-ion battery connector
Supports C/C++ and MicroPython development

Applications

Indoor air quality monitoring
Balcony plant monitoring
Smart home IoT
Wireless IoT nodes
Matter smart home devices
Zigbee gateways
Home Assistant projects

Specifications

Operating Voltage: 3.3 V
USB Type-C Input: 5 V DC
VIN Input: 5 V DC or 4.5–6 V Solar Panel
Maximum Charging Current: 0.5 A
Deep-sleep Current: 21 μA (battery powered)

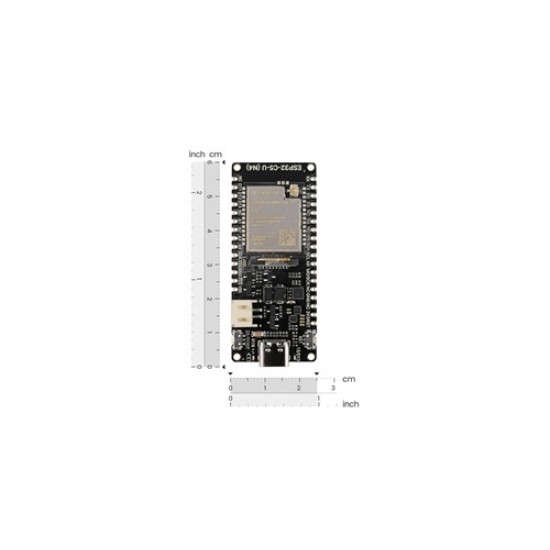

Board Dimensions: 25.4 × 60 mm
Processor: Single-core RISC-V
CPU Frequency: 240 MHz
SRAM: 384 KB
ROM: 320 KB
Flash: 4 MB
LP SRAM: 16 KB
Frequency Bands: 2.4 GHz & 5 GHz (1T1R)
Standards: IEEE 802.11a/b/g/n/ac/ax

IEEE 802.11a/b/g/n (up to 150 Mbps)
IEEE 802.11ax (20 MHz-only non-AP mode)

Wi-Fi Modes: Station, SoftAP, SoftAP + Station, Promiscuous Mode

2.4GHz low-power wireless communication

Data Rates: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps

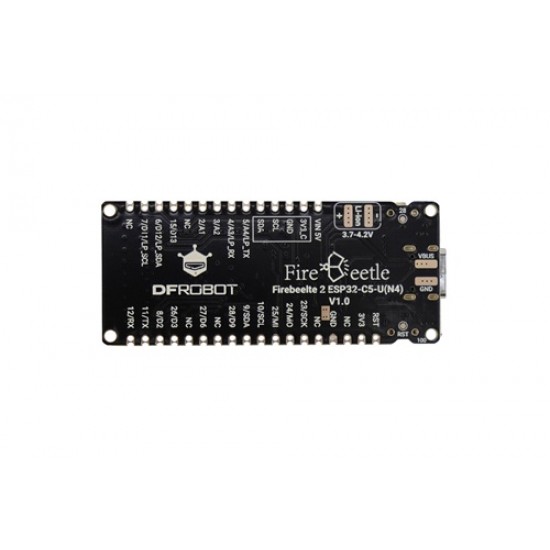

Digital I/O: 18
LED PWM Controller: 6-channel
SPI: 1
UART: 3 (including 1 × LP UART)
I2C: 2 (including 1 × LP I2C)
I2S: 1
Infrared Transceiver: 5 × TX Channels, 5 × RX Channels
12-bit SAR ADC: 1 (7 Channels)
DMA Controller: 3 RX Channels + 3 TX Channels

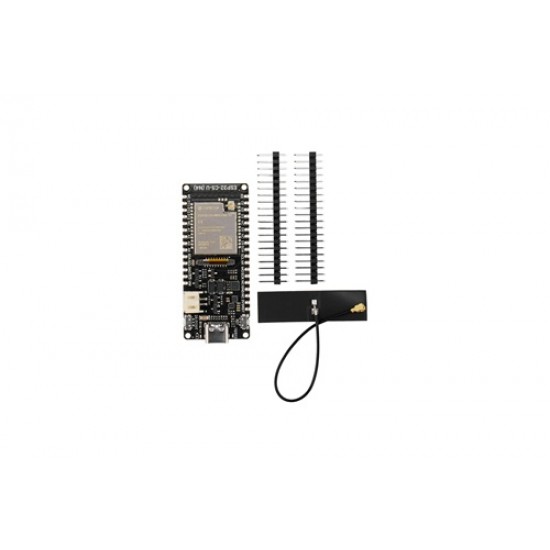

Package Includes

FireBeetle 2 ESP32-C5-U(N4) Development Board x1
2.4GHz communication FPC antenna x1
20-pin 2.54 mm Male Header x2
