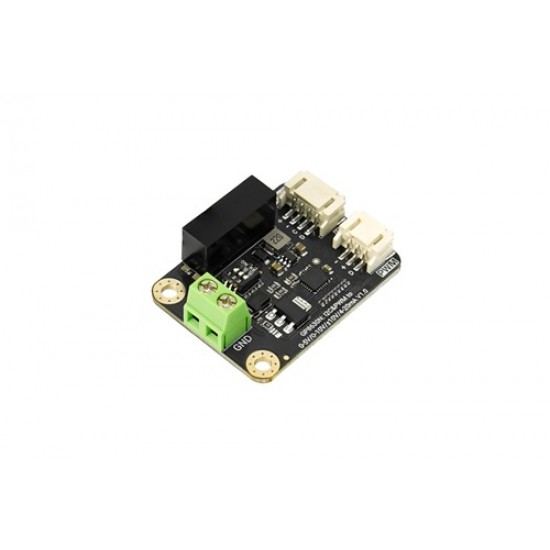

DF ROBOT Gravity: GP8630N I2C/PWM to ±10V / 4-20mA DAC Module (16-bit)

This Gravity: GP8630N DAC module functions as a high-precision digital-to-analog converter, transforming I2C or PWM digital signals into stable analog voltage or current outputs. Built around the GP8630N chip, this converter addresses the need for versatile signal generation in industrial and robotics applications by supporting multiple output modes including ±10V, 0-5V, 0-10V, and 4-20mA. The 16-bit resolution ensures fine-grained control for sensitive equipment, making this module an essential tool for automated systems requiring accurate analog inputs.

User Manual / Datasheet / Example Codes Etc.

Features

Supports ±10V symmetrical high-voltage output for bidirectional control
Provides standard 4-20mA current loop output for industrial sensors
High 16-bit resolution with low full-scale error (±0.2%)
Dual interface support: I2C and PWM input signals
Compatible with 3.3V-5V power supplies and Gravity interface

Specifications

Chip Model: GP8630N
Operating Voltage: 3.3V-5V
Power/Communication Interface: PH2.0-4Pin/3Pin
Input Signal: I2C / PWM
Output Signal:

Current Output Range: 0-24mA
Voltage Output Range: ±12V/0-6V/0-12V

Number of Channels: 1 channel
Resolution:

16-bit (I2C mode)
8-bit, 10-bit (PWM mode, selectable based on controller)

Full‑Scale Error: ±0.2% (measured after fitting calibration)

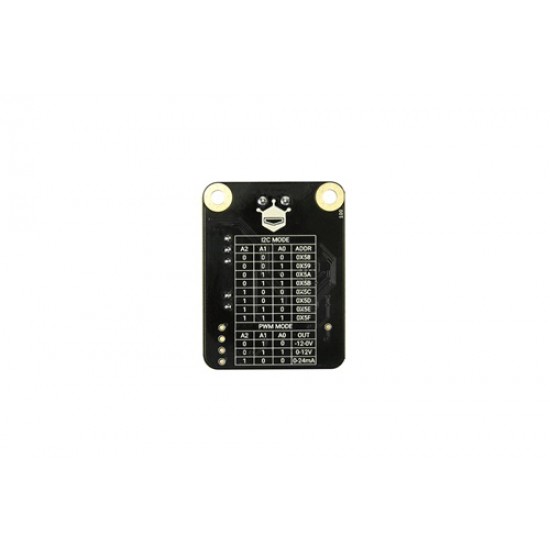

Value Range:

I2C Mode: 0-65535 corresponds to ±12V, 0-6V, 0-12V, or 0-24mA
PWM Mode: 0-255 or 0-1023 corresponds to output range

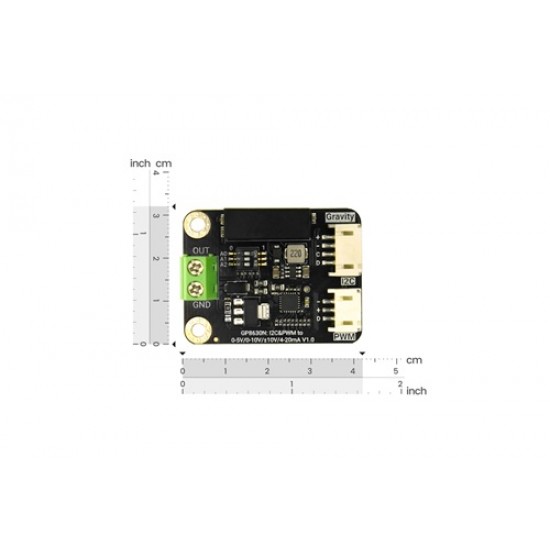

PCB Dimensions: 42 × 32 × 12.39 mm
Mounting Hole Spacing: 25mm
Mounting Hole Diameter: 3.0 mm

Applications

Motor Forward/Reverse Control
Lighting Brightness Control
Valve and Pump Control
Signal Generator
Automation Upgrades for Small Equipment

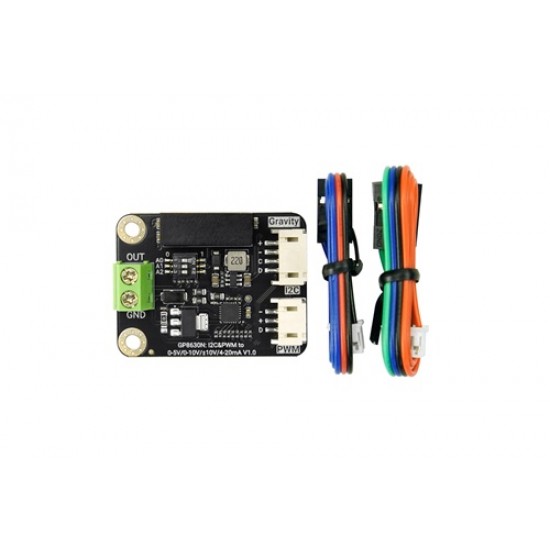

Package Includes

Gravity: GP8630N 1-Channel I2C & PWM to ±10V / 0-5V / 0-10V / 4-20mA DAC Module ×1
Gravity-4Pin I2C/UART Sensor Cable ×1
Gravity-3Pin Analog Sensor Cable ×1
