DF ROBOT I2C Temperature & Humidity Sensor (Stainless Steel Shell) (MPN: SEN0546)

DF ROBOT I2C Temperature & Humidity Sensor (Stainless Steel Shell) (MPN: SEN0546)
DF ROBOT I2C Temperature & Humidity Sensor (Stainless Steel Shell) (MPN: SEN0546)
DF ROBOT I2C Temperature & Humidity Sensor (Stainless Steel Shell) (MPN: SEN0546)
DF ROBOT I2C Temperature & Humidity Sensor (Stainless Steel Shell) (MPN: SEN0546)
DF ROBOT I2C Temperature & Humidity Sensor (Stainless Steel Shell) (MPN: SEN0546)
DF ROBOT I2C Temperature & Humidity Sensor (Stainless Steel Shell) (MPN: SEN0546)
DF ROBOT
DF ROBOT I2C Temperature & Humidity Sensor (Stainless Steel Shell) (MPN: SEN0546)
₹​849.00
₹​719.49 + 18% GST
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 7
B2B GST Credit Available
Price in reward points: 719

DF ROBOT I2C Temperature & Humidity Sensor (Stainless Steel Shell)

This I2C digital temperature & humidity sensor and features a user-programmable humidity & temperature alarm function.

Its housing is made of 304 stainless steel to ensure good impact resistance, heat resistance, low temperature, and chemical resistance. The sensor output is designed as DuPont 2.54 connector for easy wiring. Also, there are two built-in 4.7K pull-up resistors and one 100nF filtering capacitor so the sensor can be directly used with microcontrollers like Arduino.

This temperature & humidity sensor can be applied to electronic, medical, automotive, industrial, weather, and other fields, including home appliances like HVAC, dehumidifiers and refrigerators, testing & inspection equipment, and other relevant temperature & humidity measurements and controls.


User Manual / Datasheet / Example Codes Etc.

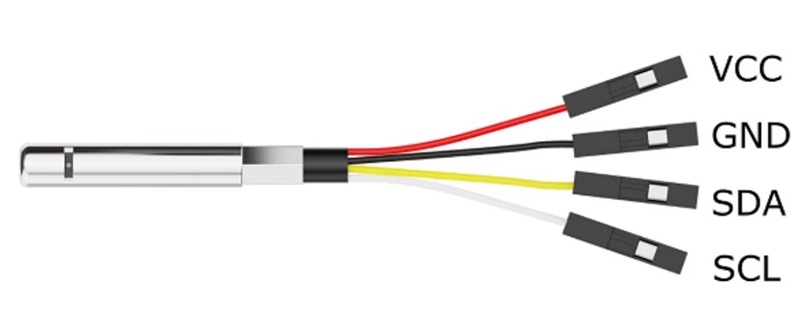

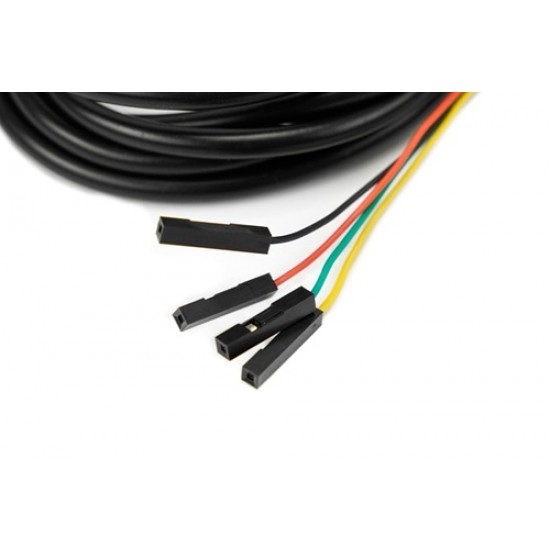

Identifying Your Sensor Version

  • To ensure you use the correct documentation and tutorials, you can easily identify your sensor version by its wire color:
  • New Version (CHT832X): The SCL wire is Green.
  • Previous Version (CHT8305): The SCL wire is White.


Applications

  • Smart HVAC System
  • Washer & dryer
  • Refrigerator & freezer
  • Cold Chain asset tracking & data logger
  • Environment Monitor
  • Portable/Wearable Weather Monitor
  • IP Camera


Specifications

  • Operating Voltage: 1.8V~5.5V
  • Average Operating Current: 5.5uA (Typ.)@3.3V,1Con/s for Both temperature and humidity Conversion
  • Standby Current: 0.36uA (Typ.)
  • Temperature Accuracy with calibration:
    •  ±0.1℃(Typ.), ±0.3℃(Max.) from 10℃ to 50℃
    • ±0.2℃(Typ.), ±0.6℃(Max.) from 0℃ to 85℃
    • ±0.5℃(Typ.), ±1.0℃(Max.) from -40℃ to 125℃
  • Humidity Accuracy with calibration
    •  ±1.5%RH@20%RH~80%RH
  • Digital Interface compatible with SMB us and I2C,support
    • Packet Error Checking feature to improve communication
    • Reliability and robustness
    • Speed up to 1.0MHz
    • SMB us General Call
  • Supports One-shot or continuous measurement
  • NIST traceability
  • Temperature Range: -40℃ to 125℃
  • Humidity Range: 0%RH~100%RH


Package Includes

  • 1x I2C Temperature & Humidity Sensor (Stainless Steel Shell)
