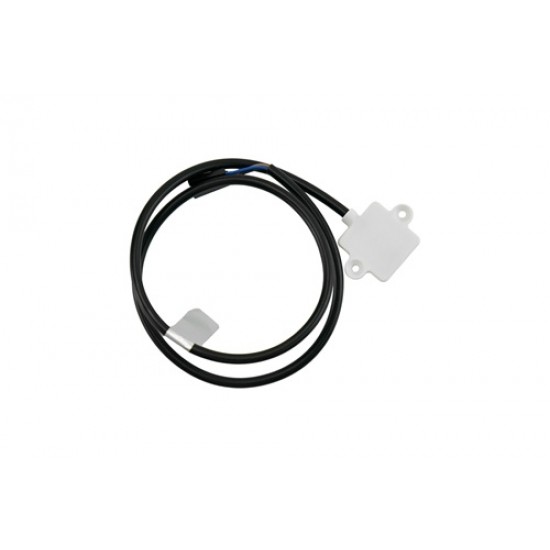

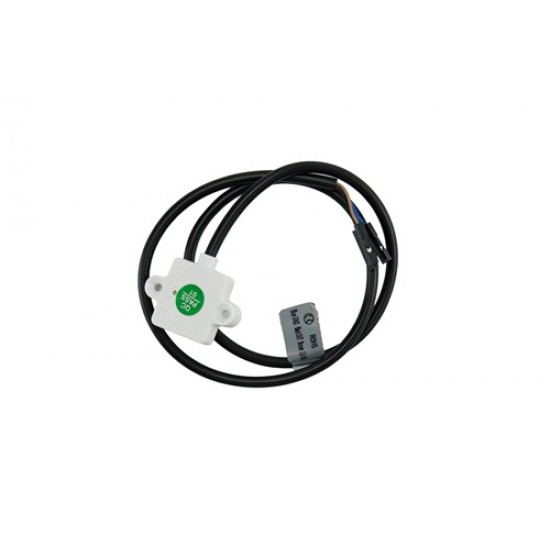

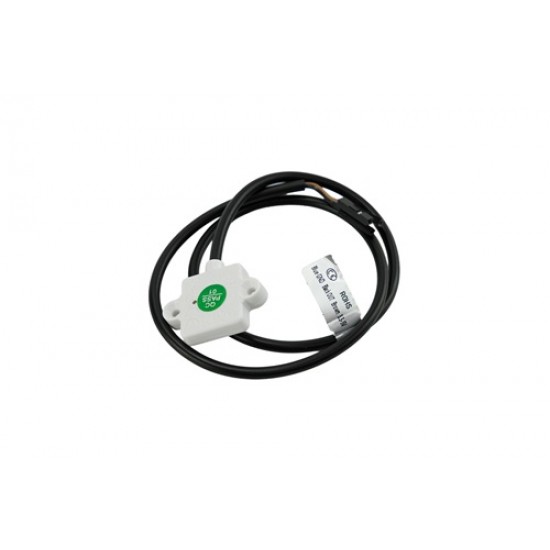

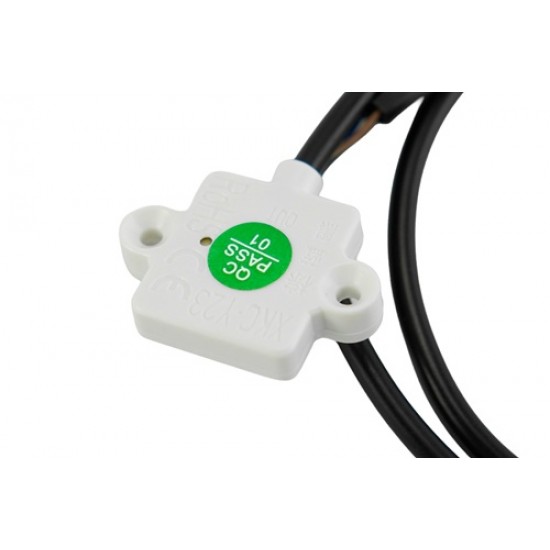

Miniature Non-contact Liquid Level Sensor for Arduino (IP67, Ultra-thin)

Miniature Non-contact Liquid Level Sensor is an advanced device using capacitive sensing principles to detect liquid presence in sealed containers without direct contact. This sensor is particularly suitable for high-risk media such as strong acids and toxic liquids. With a compact design, the sensor occupies minimal space and is ideal for embedding in various applications. Its intelligent sensitivity memory function allows automatic adjustment to optimal sensitivity in just 3-5 seconds, ensuring precise liquid detection.

The housing is made of PC-V0 fire-retardant material and has an IP67 protection rating, making it stable for use in harsh industrial and outdoor environments. The sensor operates on advanced water-sensing capacitive detection technology, converting minute capacitance changes into differential electrical signals for real-time analysis. This technology ensures accurate determination when liquid levels reach the sensing point, making it an essential tool for monitoring high-risk liquids.

User Manual / Datasheet / Example Codes Etc.

Features

One-touch automatic sensitivity calibration for quick adaptation to different containers
Non‑contact detection keeps the sensor safe from strong acids and alkalis
Penetrates non‑metallic containers (plastic, glass, ceramic) with sensing thickness up to 15mm
Ultra‑compact size for easy embedding; IP67 waterproof rating

Applications

Household appliances: Water shortage protection and water level control for water dispensers, water purifiers, coffee machines
Medical equipment: Liquid monitoring for medical solutions and liquid level management for medical cleaning equipment
Industrial control: Liquid level detection in strong acid and strong alkali storage tanks, and monitoring of toxic liquids in sealed containers
Chemical industry: Liquid detection in high-pressure sealed containers

Specifications

Operating Voltage: 3.3V~5V DC
Sensing Thickness Range: ≤15mm
Liquid Level Accuracy: ±3mm
Current Consumption: 5mA±2mA
Output Type: High/Low Level
Output Current: ≤100mA
Response Time: 500ms
Operating Ambient Temperature: -20°C~65℃
Cable Length: 50cm
Material: PC-V0 Flame-retardant material
Waterproof Rating: IP67

Package Includes

1x Miniature Non-contact Liquid Level Sensor for Arduino (IP67, Ultra-thin)
