DF ROBOT Industrial RS485 Blue-Green Algae Water Quality Sensor (Pre-calibrated) (MPN:SEN0714)
This product qualifies for Free Surface Shipping !
All orders with value above 1999+GST are eligible for free delivery in Surface mode. (Not applicable for B2B offline orders)
₹87,614.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 742
B2B GST Credit Available
Price in reward points: 74249
- Stock: 0 in Stock
- SKU: 08887
- Delivery Time
- Bulk & B2B RFQ

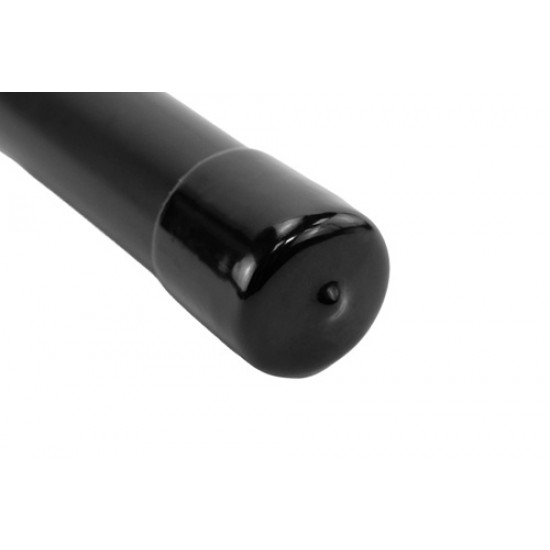

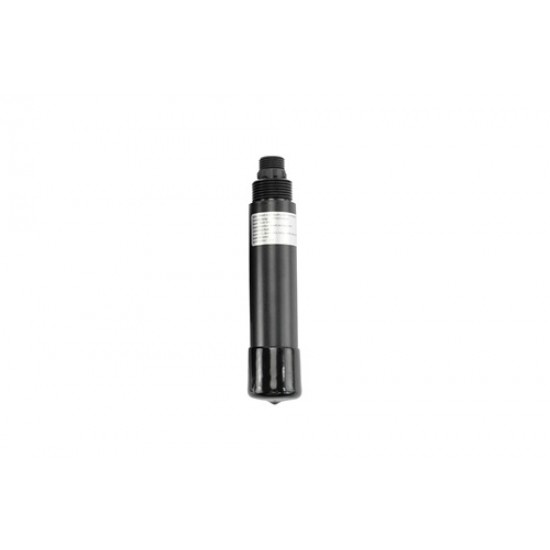

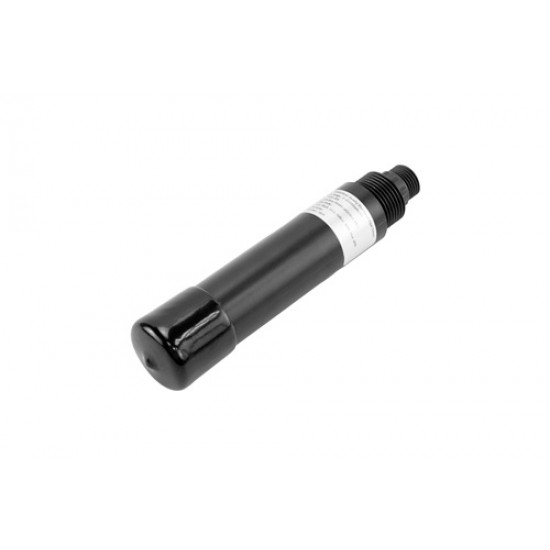

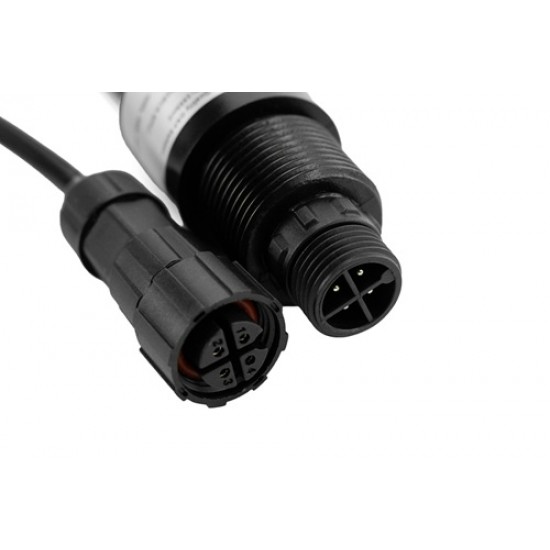

DF ROBOT Industrial RS485 Blue-Green Algae Water Quality Sensor (Pre-calibrated)
This industrial-grade water quality Blue Green Algae sensor based on the fluorescence principle. The probe and housing are integrated into a single unit, resulting in a simple and convenient design. It is used for accurately measuring cyanobacteria concentration in water, with a measurement range of 0-300,000 cells/ml, a resolution of 1 cell/ml, and an accuracy of ±5% FS. The sensor utilizes a fiber optic light path design and incorporates a filtering algorithm, providing strong resistance to external light interference.
User Manual / Datasheet / Example Codes Etc.
Features
- Measurement range: 0~400 μg/L, resolution: 0.1 μg/L, accuracy: ±5% FS
- Integrated probe housing design, waterproof rating up to IP68
- Fluorescence principle with filtering algorithm, strong resistance to external light interference
- Built-in temperature sensor, automatic temperature compensation to ensure measurement accuracy
- RS485 communication interface, supports ModBus-RTU protocol
Applications
- Harmful Algal Bloom (HAB) Early Warning: Deployment in municipal reservoirs to detect dangerous cyanobacteria spikes before they impact water treatment facilities.
- Aquaculture Management: Continuous monitoring of commercial fish ponds and shrimp farms to optimize water oxygenation and filtration systems.
- IoT Ecological Research: Integration with LoRaWAN nodes for remote, long-term hydrological data logging in rivers, lakes, and estuaries.
Specifications
- Power Supply Voltage: 10~30V DC
- Power Consumption: 0.4W
- Communication Interface: RS485 (Standard ModBus-RTU protocol)
- Measurement Range:
- Cyanobacteria: 0~300,000 cells/ml
- Temperature: 0°C~+60°C
- Measurement Accuracy:
- Cyanobacteria: ±5%FS (25℃)
- Temperature: ±0.5°C
- Resolution:
- Cyanobacteria: 1 cell/ml
- Temperature: 0.1°C
- Linearity: R²>0.999
- Temperature Compensation Range: 0°C~+60°C
- Response Time: ≤30S
- Operating Temperature: 0°C~+40°C
- Measurement Principle: Fluorescence method
- Waterproof Rating: IP68
- Pressure Resistance: 0.6MPa
- Cable Length: 5m
- Housing Material: Corrosion-resistant plastic
Package Includes

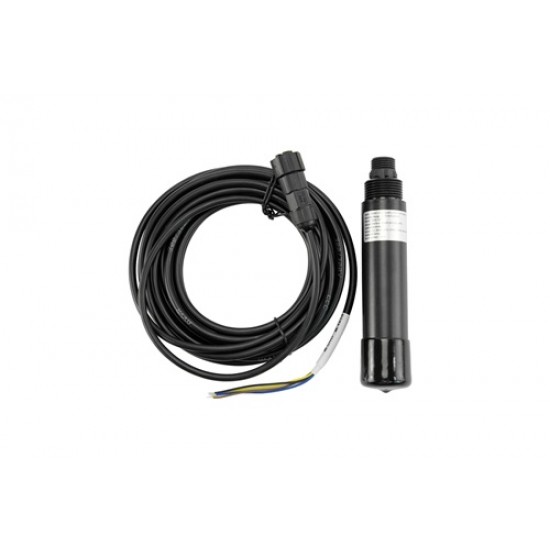

- RS485 Water Quality Blue-Green Algae Sensor x1
- 5m Sensor Cable x1
