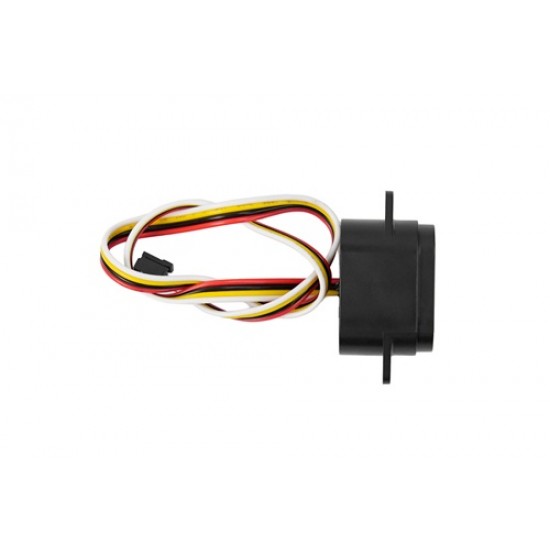

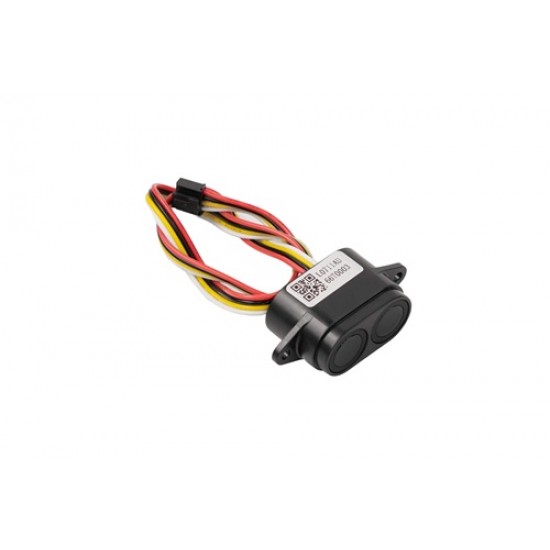

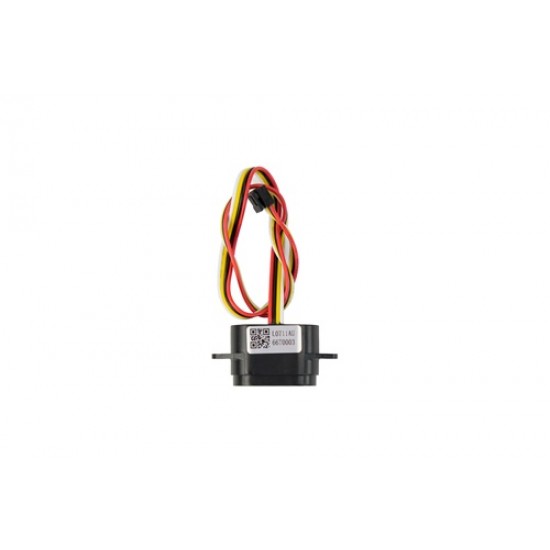

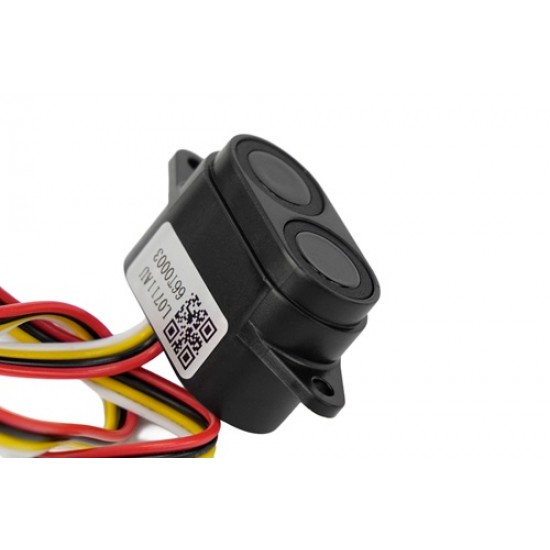

DF ROBOT Ultrasonic Liquid Level Monitoring Sensor (3m, IP67)
This ultrasonic liquid level monitoring sensor is designed for non-contact liquid level detection where traditional ultrasonic sensors may be limited by large blind zones, wide measurement angles, slow response, or difficult installation. With a blind zone of ≤1.5cm and an adjustable measuring range from 30~300cm, this liquid level sensor supports compact containers as well as larger tanks while providing configurable measurement behavior for different installation conditions.
User Manual / Datasheet / Example Codes Etc.
Features
- Blind zone as low as 1.5cm with adjustable maximum measuring range from 30~300cm
- Six configurable liquid level algorithm modes including liquid surface sloshing filtering, small step filtering, and high sensitivity mode
- Nine configurable signal levels for adapting measurement range, sensitivity, and detection angle
- Five configurable power supply noise reduction levels for different electrical environments
- Real-time value output with 100ms response time and processed value output with response time ≥2000ms
- IP67 waterproof and dustproof protection for liquid level monitoring environments
- Wide 3.3~12V operating voltage range
- Electrostatic discharge protection compliant with IEC61000-4-2 standard
Applications
- Nutrient solution monitoring for hydroponics
- Disinfectant level monitoring in container
- Nutrient solution monitoring for ornamental plant boxes
- Water level monitoring for RV water tanks and wastewater tanks
Specifications
- Operating Voltage: 3.3~12V
- Standby Current: ≤5uA
- Average Operating Current: ≤9mA
- Blind Zone Distance: ≤1.5cm
- Measuring Range: 30~300cm adjustable (default 200cm)
- Accuracy: 0.5+(S*0.3%)cm
- Response Time: Real-time value 100ms, Processing value ≥2000ms
- Power-On Time: ≤650ms
- Cycle Time: 100ms
- Output Method: UART Auto (Modbus Protocol)
- Temperature Compensation: Yes
- Angle: 10~50°
- Operating Temperature: -25°C~65°C
- Operating Humidity: 65~80%RH
- Storage Temperature: -30°C~80°C
- Storage Humidity: 65~90%RH
- Electrostatic Discharge Protection Rating: +4K/8K (V)
- Protection Rating: IP67
- Shell Material: PC Material

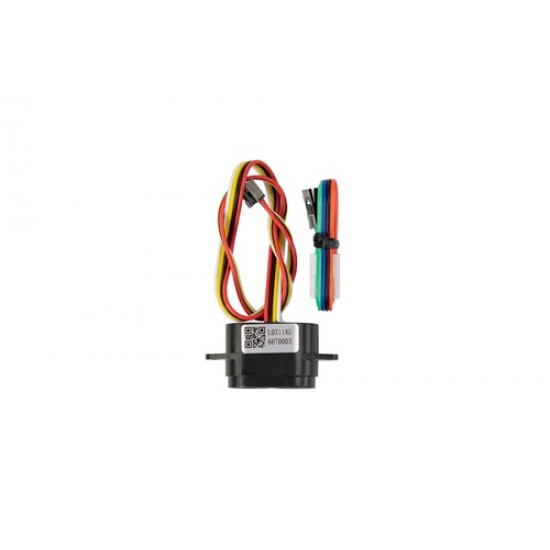

Package Includes
- Ultrasonic Liquid Level Monitoring Sensor-3m ×1
- 4PIN adapter cable x1
