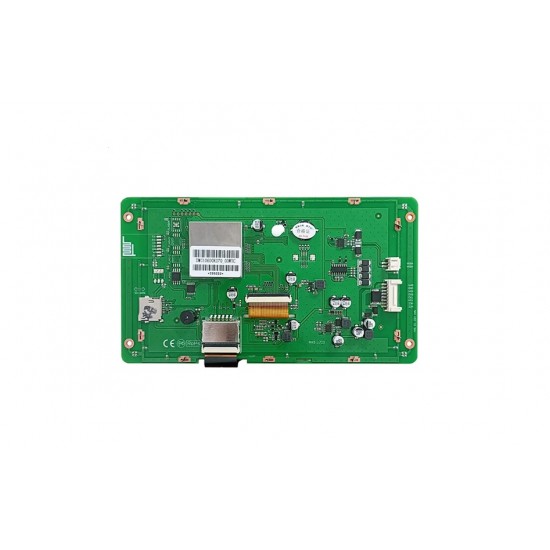

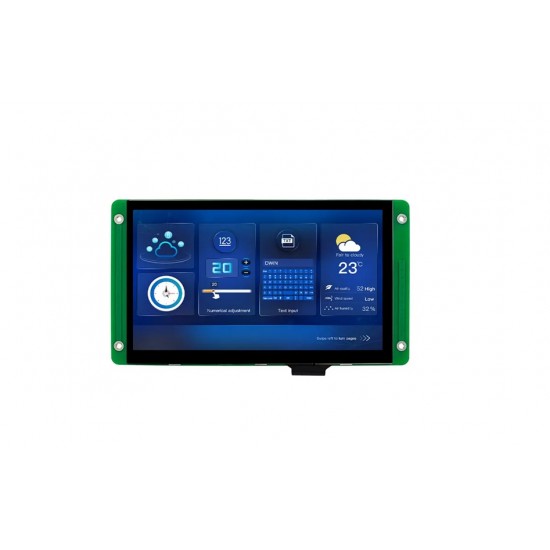

DWIN 7inch HMI LCD, Capacitive Touch, IPS TFT 1024x600 250nits LCD Display, DMG10600K070_03WTC (Medical Grade)

The DWIN 7-inch HMI LCD (DMG10600K070_03WTC) is a high-quality, medical-grade display module designed for reliable human-machine interface applications in healthcare and industrial environments. Featuring a 7-inch IPS TFT panel with a resolution of 1024×600 pixels, this display delivers sharp visuals, wide viewing angles, and consistent color performance.

Equipped with a capacitive touch screen, it provides smooth, accurate, and responsive user interaction, making it ideal for modern medical devices and control systems. With a brightness of 250 nits, the display ensures clear visibility in indoor environments while maintaining energy efficiency.

Built to meet medical-grade standards, this HMI display offers enhanced stability, durability, and long-term performance. It supports DWIN’s intelligent DGUS platform, enabling easy GUI design, quick development, and seamless integration into embedded systems without requiring complex programming.


Datasheet


Features

  • Based on T5L2, running DGUS II system, medical grade products.
  • 7.0-inch, 1024*600 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
  • Support RS232and RS485 communication.
  • Capacitive touch screen.
  • With conformal coating


Specifications

  • Display
  • Screen Size: 7.0 inch
  • Display Type: IPS TFT LCD
  • Resolution: 1024 × 600 pixels
  • Brightness: 250 cd/m² (nits)
  • Color Depth: 16.7M colors
  • Viewing Angle: 85°/85°/85°/85° (L/R/U/D)
  • Active Area: ~154.08 × 85.92 mm
  • Backlight: LED
  • Touch Panel
    • Type: Capacitive touch (CTP)
    • Structure: Glass + Glass (G+G)
    • Touch Life: >1,000,000 touches
    • Light Transmittance: >90%
  • Operating Voltage: 6V – 36V DC
  • Storage Temperature: -30°C to +80°C


Package Includes

  • 1x DWIN 7inch HMI LCD, Capacitive Touch, IPS TFT 1024x600 250nits LCD Display, DMG10600K070_03WTC (Medical Grade)
