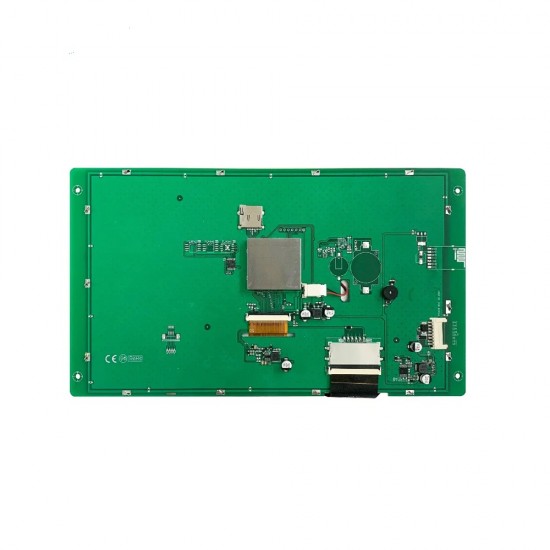

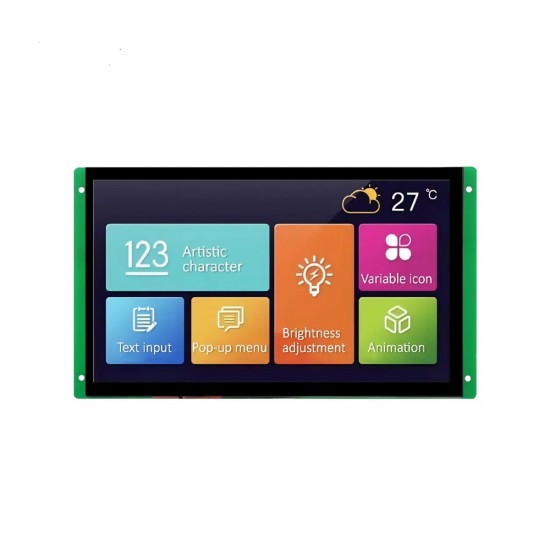

DWIN 10.1inch HMI LCD, Capacitive Touch, IPS TFT 1024x600 200nits LCD Display, DMG10600C101_04WTC (Commercial Grade)
The DWIN 10.1 Inch HMI LCD Display – DMG10600C101_04WTC (Commercial Grade) is a high-performance human-machine interface solution designed for modern embedded systems and industrial control applications. Featuring a crisp 1024×600 resolution IPS TFT panel, this display delivers vibrant colors, wide viewing angles, and excellent visibility, making it ideal for intuitive graphical interfaces.
Equipped with a capacitive touch panel, it ensures smooth, accurate, and responsive user interaction, supporting multi-touch gestures for enhanced usability. Powered by DWIN’s advanced DGUS platform, the module enables rapid UI development without requiring complex programming, significantly reducing development time and cost.
Features

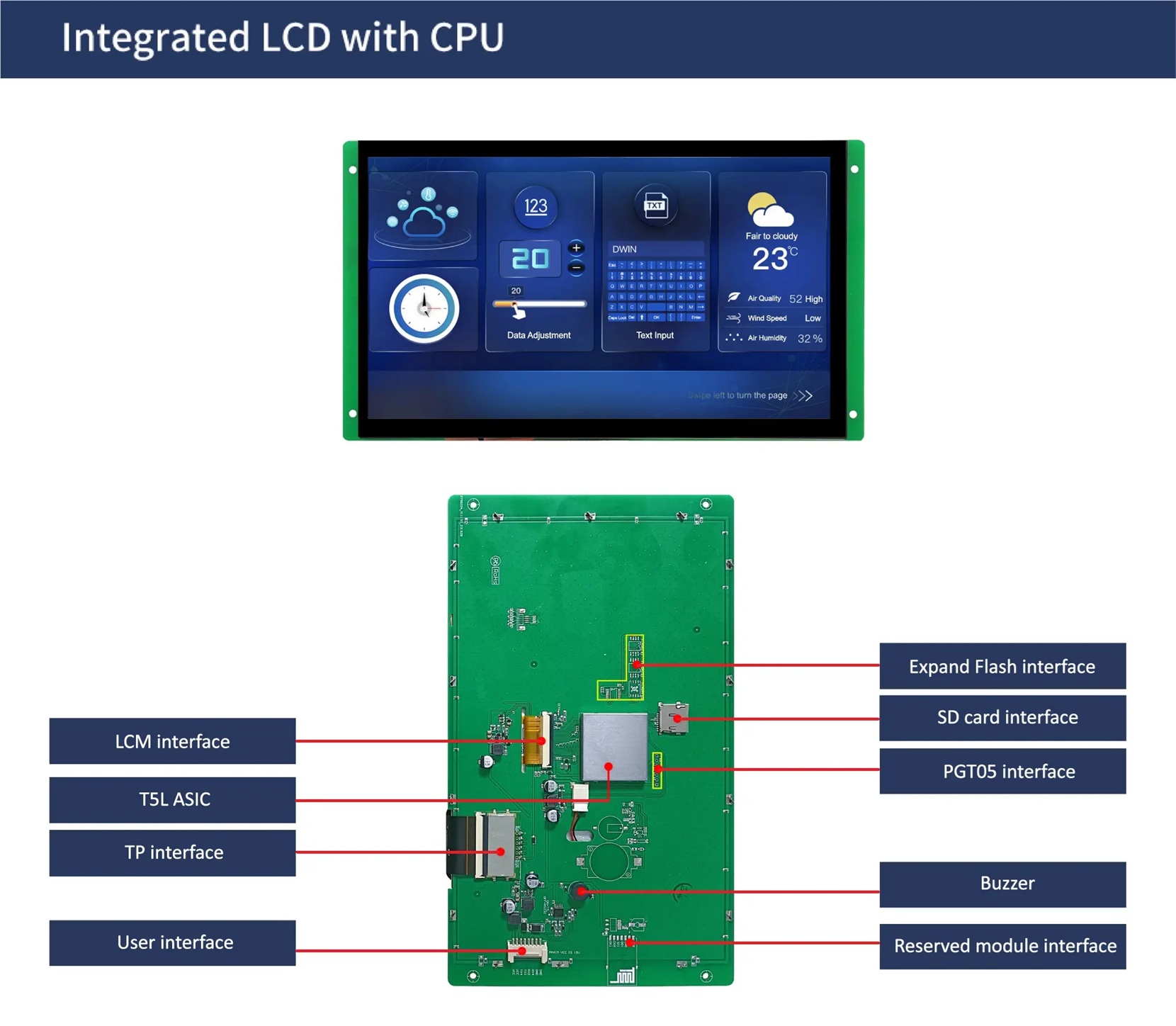

- Based on self-designed T5L ASIC, 10.1 Inches, 16.7M Colors, 1024*600 Pixel TFT LCD
- 8Pin_2.0mm connection wire,TTL/RS232 available
- Download via SD card or on-line serial port
- Dual Development System: DGUS II/ TA(Instruction set)
- No coding skills required, easy-to-use DWIN DGUS V7.6 GUIs Development
- Widely used witd Arduino,STM32,Microchip ,ESP8266 and so on.
Specifications
- LCD Type: IPS, TFT LCD
- Viewing Angle: Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）
- Resolution: 1024×600 pixels (support 0°/90°/180°/270°)
- Color: 24-bit 8R8G8B
- Active Area (A.A.): 222.7mm (W)×125.3mm (H)
- Backlight Mode: LED
- Backlight Service Life: >20000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)
- Brightness: DMG10600C101_04WTC: 200nit
- Touch Mode: Single point touch, support continuous sliding touch
