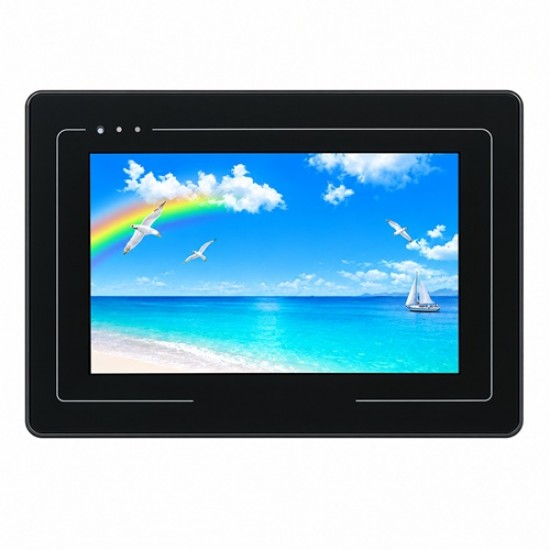

DWIN 7.0inch IPS TFT, Capacitive Touch, RGB Interface, IPS TFT 1024x600 250nit lCD Display With Case, DMG10600T070_A5WTC
This is a DWIN 7.0inch IPS TFT, Capacitive Touch, RGB Interface, IPS TFT 1024x600 250nit lCD Display With Case, DMG10600T070_A5WTC. The 7.0inch Capacitive touch display comes with 16.7millon RGB Colors, Which Based on T5L2, running DGUS II system, industrial grade.
Features
- Based on T5L2, running DGUS II system, industrial grade.
- 7.0-inch, 1024*600 pixels resolution, 16.7M Colors, IPS-TFT-LCD, wide viewing angle.
- RS232/RS485 Interface,8Pin_3.81mm Socket*1，CAN bus interface *1
- Touch Option: Capacitive Touch
- 32MBytes NOR Flash, expandable to 64M
- bytes NOR Flash
- Onboard speaker. Power: 2W
- Protective Level:IP65(front)
Specifications
Display
- Color : 16.7M（16777216） colors
- LCD Type : IPS, TFT LCD
- Viewing Angle : Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
- Display Area (A.A）: 154.20mm (W) ×85.88mm (H)
- Resolution : 1024x600
- Backlight : LED
- Brightness : DMG10600T070_A5WTR: 250nit
Touch parameters
- Type : CTP (Capacitive touch panel)
- Structure : G+G structure with surface cover of Asahi tempered glass
- Touch Mode : Support point touch and drag
- Surface Hardness : 6H
- Light Transmittance : Over 90%
- Life : Over 1,000,000 times and depending on the working environment
Voltage & Current
- Power Voltage : 7~36V
- Operation Current : VCC = +12V, Backlight on, 300mA - VCC = +12V, Backlight off, 150mA
Reliability Test
- Working Temperature : -20~70℃
- Storage temperature : -30~80℃
- Working Humidity : 10%~90%RH
Interface
- Baudrate : 3150~3225600bps
- Output Voltage : Output 1, -5.0~-3.0V - Output 0, 3.0~5.0V
- Input Voltage(R*D) : Input 1, -15.0~-5.0V - Input 0, 5.0~15.0V
- User Interface : 8Pin_3.81mm Socket, 4Pin_3.81mm Socket(CAN*1) - UART2: N81 - UART4: N81/E81/O81/N82, 4 modes(OS configuration) - UART5: N81/E81/O81/N82, 4 modes(OS configuration)
- Expand Flash : 16MBytes NOR Flash, for fonts, pictures and audio files. - Rewrite cycle: over 100,000 times
- SD interface : FAT32. Download files by SD interface can be displayed in statistics. - Download rate: 4Mb/s
- PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS - kernel and make the product return to normal
