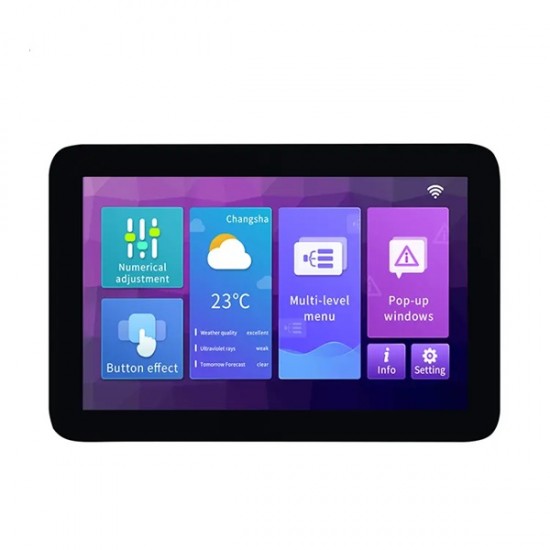

DWIN 12.1 Inch SMART LCD, Capacitive Touch, TN TFT 1280x800 400nit LCD Display, DMG12800C121_02WTC (Commercial grade)
DWIN 12.1 Inch SMART LCD, Capacitive Touch, TN TFT 1280x800 400nit LCD Display is a high-quality and feature-rich display solution designed for a diverse range of applications. This LCD module combines a spacious 12.1-inch screen, Capacitive touch technology, and a TFT display with a resolution of 1280x800 pixels and a brightness of 400 nits, delivering a vibrant and responsive visual experience.
Features
- Based on self-designed T5L ASIC,16.7M Color, 24 bit, 1280*800 Pixel TFT TN LCD
- Capacitive touch panel
- TTL interface with 8Pin_2.0mm connection wire
- Download SD card or on-line serial port
- PC software: DWIN DGUS V7.6 GUIs Development, no code skills required
- Dual Development System: DGUS II/TA (Instruction Set)
- View Angle: 70/70/50/70（L/R/U/D
- With GUI & OS dual-core, GUI with different controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS Language or C51
Specifications
Display
- Color : 16.7M（16777216) colors
- LCD Type : TN, TFT LCD
- Viewing Angle : Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)
- Display Area（A.A）: 261.12mm (W) ×163.20mm (H)
- Resolution : 1280×800 Pixel
- Backlight : LED
- Brightness : DMG12800C121_02WTC :400nit
Touch Parameters
- Type : CTP (Capacitive touch panel)
- Structure Touch : G+G structure with Asahi tempered glass surface cover
- Touch Mode : Support point touch and drag
- Surface Hardness : 6H
- Light Transmittance : Over 90%
- Life : Over 1,000,000 times touch
Voltage & Current
- Power Voltage : 12~36V, typical value of 12V
- Operation Current : VCC = +12V, Backlight on,1320mA, VCC = +12V, Backlight off,230mA
Reliability Test
- Working Temperature : -20~70℃
- Storage Temperature : -30~80℃
- Working Humidity : 10%~90%RH, typical value of 60% RH
