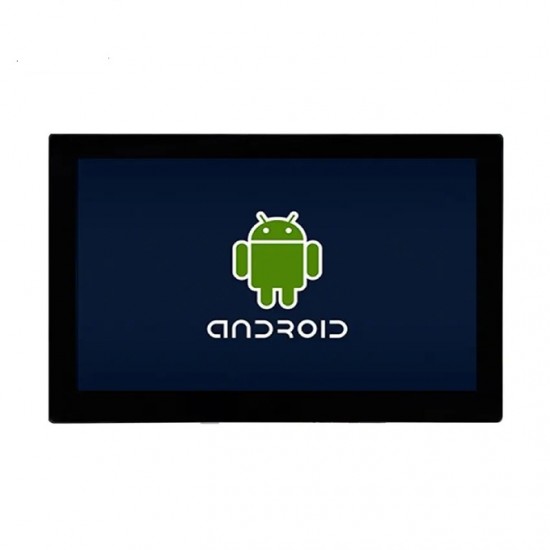

DWIN 15.6 Inch 1920x1080 Capacitive Android 11 Display DMG19108C156_32WTC (Commercial Grade )
The DWIN DMG19108C156_32WTC is a high-performance commercial-grade smart display module designed for industrial HMI, automation systems, smart kiosks, digital signage, and embedded Android applications. Powered by the RK3566 quad-core processor and running Android 11, this 15.6-inch IPS display delivers Full HD 1920×1080 resolution with responsive capacitive touch functionality for smooth and intuitive user interaction.
Featuring wide viewing angles, rich connectivity options, and support for Android applications, the display is ideal for smart control systems, industrial monitoring, self-service terminals, vending machines, charging stations, and IoT projects. The module supports Wi-Fi, Bluetooth, Ethernet, USB, RS232, and RS485 communication, making it highly versatile for modern embedded systems.
Features
- Commercial Android intelligent display terminal based on RK3566, running Android 11 operating system.
- 15.6-inch, 1920*1080 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, Capacitive Touch.
- Compatible with WIFI, Bluetooth, microphone, camera and other rich peripherals.
- Available for USB and SD card updates.
- Available for downloading Android general apps to realize functions such as Wi-Fi ,wired internet , browsing, music and video playback, data copy, etc.
- Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.
Specifications
- Model: DMG19108C156_32WTC
- Display Size: 15.6 Inch
- Resolution: 1920 × 1080 Pixels
- Display Type: IPS TFT LCD
- Touch Type: Capacitive Touch
- Operating System: Android 11
- CPU: RK3566 Quad-Core Cortex-A55 1.8GHz
- RAM: 2GB LPDDR4
- Storage: 8GB eMMC
- Viewing Angle: 85°/85°/85°/85°
- Brightness: 200 nits
- Communication Interfaces: RS232, RS485, TTL
- Ethernet: 10/100 Mbps
- USB Ports: USB Host ×2, Micro USB OTG ×1
- Wireless Connectivity: Wi-Fi 2.4GHz, Bluetooth 4.2
- SD Card Support: Up to 64GB
- Operating Voltage: 9V–23V DC
- Recommended Power Supply: 12V DC
- Operating Temperature: -10°C to 60°C
Applications
- Industrial HMI systems
- Smart home control panels
- Digital signage systems
- Vending machines
- EV charging stations
- Self-service kiosks
- Industrial automation
- IoT control terminals
- Smart retail displays
- Medical and commercial equipment
Package Includes
- 1x 15.6 Inch 1920*1080 Capacitive Android 11 Display DMG19108C156_32WTC (Commercial Grade )
