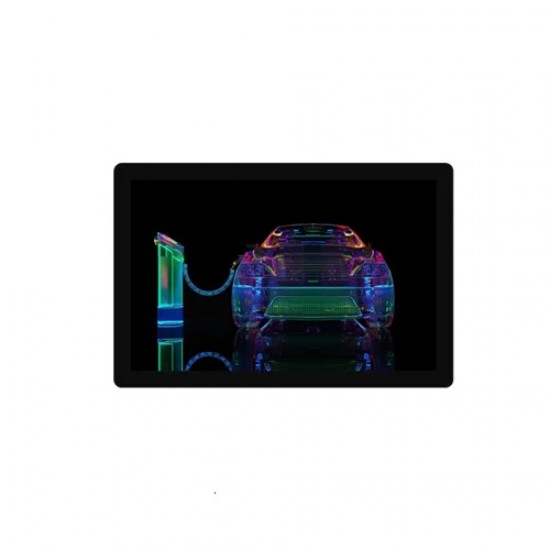

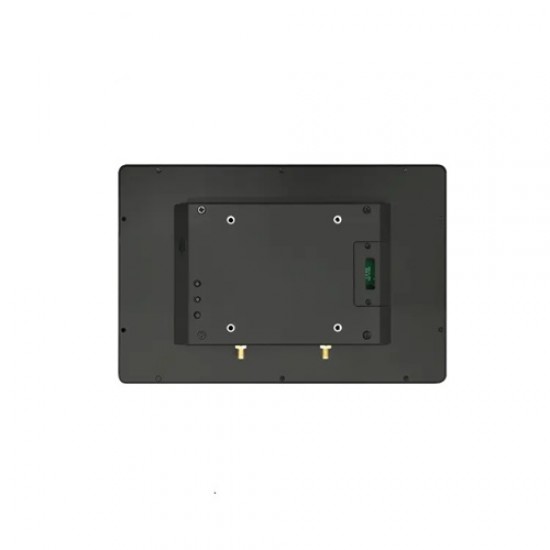

DWIN 10.1inch Android Display, Capacitive Touch, RK3566 Quad-core Processor, 2GB RAM & 8GB eMMC, 1280x800 Android 11 LCD Display - DMG12800C101_A1WTC
The DWIN DMG12800C101_A1WTC 10.1-inch Android Display is a versatile industrial HMI and embedded display solution featuring a 1280 × 800 pixel LCD, capacitive touch screen, and Android 11 operating system. Powered by the Rockchip RK3566 quad-core processor, it delivers responsive performance for embedded applications, smart control panels, IoT interfaces, automation systems, and multimedia applications.
The display is equipped with 2GB RAM and 8GB eMMC storage, providing sufficient resources for running Android applications and storing system or application data. Its 10.1-inch capacitive touchscreen offers intuitive and convenient user interaction, making it suitable for modern user-interface designs.
With its combination of a powerful processor, Android platform, touchscreen interface, and high-resolution display, the DWIN DMG12800C101_A1WTC is well suited for industrial control systems, smart home devices, automation equipment, IoT terminals, medical equipment interfaces, and other embedded Android applications.
Features
- Commercial Android display terminal based on RK3566, Android 11 version.
- 10.1 inch, 1280*800, IPS wide viewing angle.
- 2GB LPDDR4 + 8GB eMMC(default), 4GB LPDDR4 + 32GB eMMC (optional), 8GB LPDDR4 + 256GB eMMC(optional)
- Available for RS232, TTL and Ethernet port to connect and communicate with external devices.
- Capacitive touch, G+G structure with tempered glass surface.
Specifications
- Motherboard Level: Commercial-grade
- CPU: RK3566, Quad-core ARM Cortex-A55 1.8GHz Processor
- OS: Android 11
- RAM: 2Gbytes LPDDR4
- Storage: 8Gbytes eMMC
- Size: 10.1 inch
- Viewing Area (VA): 216.58mm(W)×135.36mm (H)
- Resolution: 1280×800
- Backlight Service Life: >20000 Hrs
- Brightness: 300nit
- Touch Type: Capacitive touch panel
- Working Temperature : 60%RH at 12V voltage
- Working Humidity: 25℃

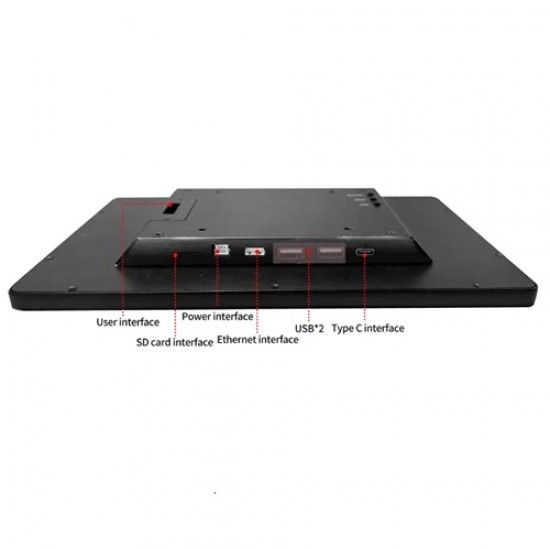

- User Interface: 8Pin_2.0mm socket*1
- Power Interface: 2Pin_2.0mm interface*1
- COM: RS232*1 (COM5), TTL*1 (COM0)
- Ethernet Interface: 6Pin_1.25mm interface*1, 10/100Mbps
- USB: USB *2 (HOST), Type C*1 (OTG)
- SD Card: Max 64G
- Wi-Fi
- IEEE802.11b/g/n, 2.4 GHz, IEEE802.11a/n/ac, 5 GHz
- Support Wi-Fi 5
- Bluetooth Version: BT4.2
- RTC: Accuracy: ±20ppm @25℃
- Speaker: 2Pin_1.25mm interface*1
- Keys: Recovery, Power, Mute
Package Includes
- 1x DWIN 10.1inch Android Display, Capacitive Touch, RK3566 Quad-core Processor, 2GB RAM & 8GB eMMC, 1280x800 Android 11 LCD Display - DMG12800C101_A1WTC
