₹3,460.00
All Inclusive, Shipping Calculated at Checkout
Assured Cashback of ₹ 29
B2B GST Credit Available
Price in reward points: 2933
- Stock: 0 in Stock
- SKU: 05969
- Delivery Time
- Bulk & B2B RFQ

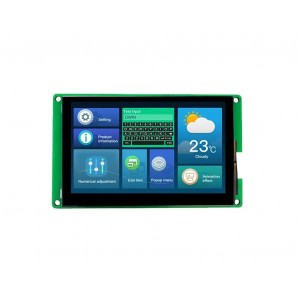

DWIN 4.3inch HMI LCD, Capacitive Touch, IPS TFT 800x480 250nit UART LCD Display, DMG80480T043_01WTC (Industrial Grade)
The DWIN 4.3-inch HMI LCD, model DMG80480T043_01WTC, is an industrial-grade display designed for robust and reliable performance in various applications. This Capacitive IPS TFT LCD boasts a resolution of 800x480 pixels, ensuring crisp and clear visuals. The IPS technology provides wide viewing angles and vibrant colors, making it suitable for environments where display quality and readability are crucial.
Features
- Self-designed T5L0, 262K Color 18-bit,800*480 Pixel IPS, 4.3 Display
- Capacitive touch screen
- TTL or 232 User Interface, 8Pin 2.0mm cable
- Download by SD card or on-line uart port
- DWIN DGUS V7.6 GUIs Development, no code asked and easy to develop
- Development way: DGUSⅡ/TA (Instruction set)
- Wide Angle 85/85/85/85 (L/R/U/D)
- With GUI&OS dual-core, GUI with rich controls, DWIN OS kernel is open to the user for the second-development via DWIN OS language or KELI C51
Specifications
- Color: 262K
- LCD Type: IPS, TFT LCD
- Viewing Angle: Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
- Display Area（A.A): 93.60mm (W)×56.16mm (H)
- Resolution: 480×800 Pixel
- Backlight: LED
- Brightness: 250nit
Touch Specifications
- Type: CTP (Capacitive touch panel）
- Structure: G+G structure with surface cover of Asahi tempered glass
- Touch Mode: Single touch and continuous sliding touch supported
- Surface Hardness: 6H
- Light Transmittance: Over 90%
- Life: Over 1,000,000 times touch
Voltage & Current
- Power Voltage: 6~36V typical value of 12V
- Operation Current: VCC = +12V, Backlight on,120mA VCC = +12V, Backlight off,53mA
Reliability Test
- Working Temperature: -20~70℃
- Storage Temperature: -30~80℃
- Working Humidity: 10%~90%RH
